Simpson TV1DVV300 Panel Meter 1.5 TV TV1 0-300 DCV

Name: Simpson TV1DVV300 Panel Meter 1.5 TV TV1 0-300 DCV
Brand: Simpson
SKU: SimpsonTV1DVV300
Price: 119.64 USD
Availability: InStock

0 reviews | Catalog: TV1DVV300 | Model: Simpson TV1DVV300

Simpson Tru-Vue Style Analog Panel Meter

Compare

TV1 0-300 DCV 1.5 TV

TV1 0-300 DCV 1.5 TV
Clear acrylic case updates panel design
Black knife-edge pointer for precion reading
Special colored scales or logos available

View Product Details

List Price: $140.76

Your Price: $119.64

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

General Specifications
Accuracy	2% F.S. (iron vane), ±3% F.S. (rectifier)
Movement	DC; Annular, self-shielding AC; Models 953 & 954: Iron-vane, magnetically damped others: Annular, rectified
Suspension	Pivot and jewel or taut band
Tracking	3%
Repeatability	2%, taut band: 0.5%
Shielding	Calibration is unaffected by stray magnetic field or panel mounting.
Response Time	1.5 seconds maximum above10mA
Overload (1 sec.) Overload	10 times F.S.
(Continuous)	1.5 times F.S.
Dial	Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
Operating Temperature	-4°F to +149°F (-20°C to +65°C)
Resistance	±15% of meter impedance
Case	Clear plastic
Pointer	Knife edge, black matte finish

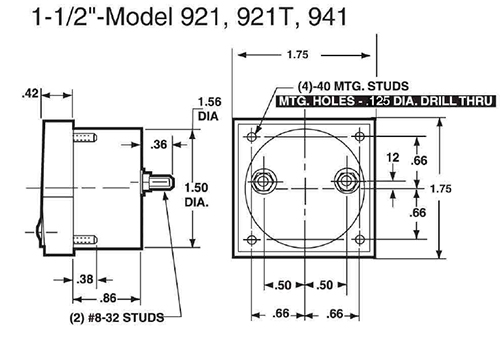

Scale Length	Models 921 & 941: 1.56” (39.62mm)
Net Weight	Models 921 & 941: 1.5oz (.04kg)

Tech Specs

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Voltage
Size-Circular	1.56 IN
Size-Face Width	1 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
