Simpson M2400910F Panel Meter J T/C F, 4 LED, 85-250VAC

Name: Simpson M2400910F Panel Meter J T/C F, 4 LED, 85-250VAC
Brand: Simpson
SKU: SimpsonM2400910F
Price: 303.44 USD
Availability: InStock

0 reviews | Catalog: M2400910F | Model: Simpson M2400910F

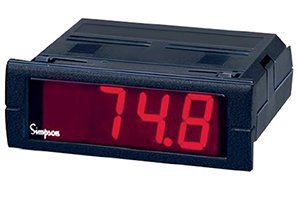

Simpson Mini-Max M240 Digital Panel Meter

Compare

4 LED, 85-250VAC, J T/C F

4 LED, 85-250VAC, J T/C F
3/64 DIN Temperature Indicator
Jumper – selectable display for ºC / ºF
Screw terminals connector for easy installation
Unique mounting bracket allows for stacking of multiple meters

View Product Details

List Price: $373.47

Your Price: $303.44

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Simpson M2400910F 4 LED, 85-250VAC, J T/C F	Simpson M2400930C 4 LED, 85-250VAC, RTD PT100 C
Price
In Stock
Size Rectangular	Other	Other
Type (Panel Meter )	Digital	Digital
Compare	Add to compare	Add to compare

Recommended for you

Simpson M240 SeriesMini-Max Digital Panel Meter

Simpson M2400910F

4 LED, 85-250VAC, J T/C F
3/64 DIN Temperature Indicator
Screw terminals connector for easy installation

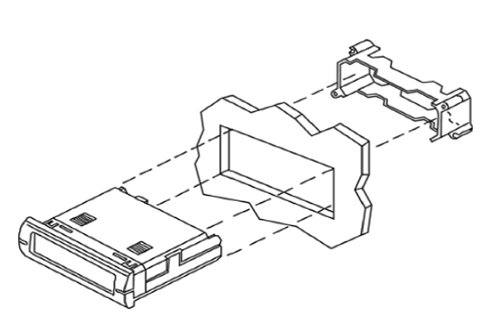

Mounting Requirements

Insert the Mini-Max through the panel, and then slide the mounting bracket on to the Mini-Max.
The mounting bracket allows Mini-Max units to be stacked side-to-side or top-to-bottom.
Panel cutout instructions for stacking multiple units are provided in the operator’s manual.

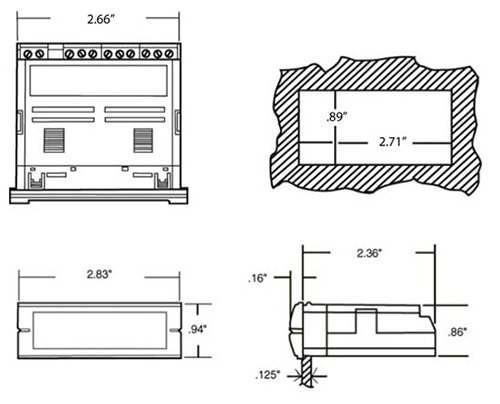

Dimension

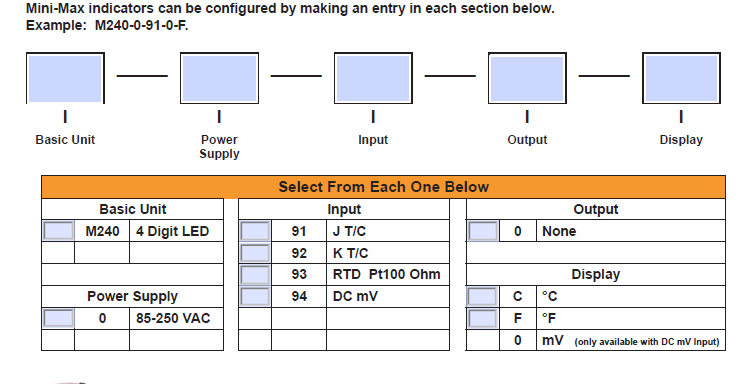

Ordering Information

General Specifications
DISPLAY
Type	7- segment, red LED
Height	0.56” (14.2mm)
Display resolution	0.1º from -99.9º to 999.9º; 1.0º below 100º or above 1000º; 0.1mV for mV indication
Overrange Indication (T/C or mV)	The left-most digit shows 1: “1” (other digits are blank)
Open or faulty input connection	“----”
Uncalibrated instrument	Display will flash continously “INFO FAIL CALB REQD” upon application of power.
Polarity	Automatic, with “-” indication, “+” indication implied
POWER REQUIREMENTS
AC Voltages	85 - 250VAC @ 50-60Hz
Power Consumption	2 VA
INPUTS
Thermocouple	J, K
Millivolt	± 70mV (Uncompensated for temperature)
Lead Resistance Effect	-13μV / 100Ω max.
RTD	Platinum 100 Ohm (.00385 alpha)
Lead Resistance Effect	2- and 3- wire 1º / .29Ω max.
Temperature Coefficient	± 0.2ºC / ºC
Input Impedance	22MΩ
ENVIRONMENTAL
Operating Temperature	0 to 55ºC
Storage Temperature	-10 to 60°C
Relative Humidity	0 to 85% non-condensing
Warmup time	Less than 20 minutes
A/D Conversion Techniques	12 Bit Successive Approximation (SAR)
Rate	10 samples per second
NOISE REJECTION
NMRR	60dB, 50/60Hz
CMRR	(w / 1kΩ unbalanced @ 60Hz) 90dB min
MECHANICAL
Bezel	0.94” x 2.83”
Depth	2.36”
Panel cutout	0.89” x 2.71”
Weight	3.5 oz. (99.2 g)
Case Material	94-0, UL-rated, glass-filled thermoplastic

Tech Specs

Temperature / PID Controllers
Size Rectangular	Other Size Rectangular 3/64 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Temperature
Size-Face Width	Other
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
