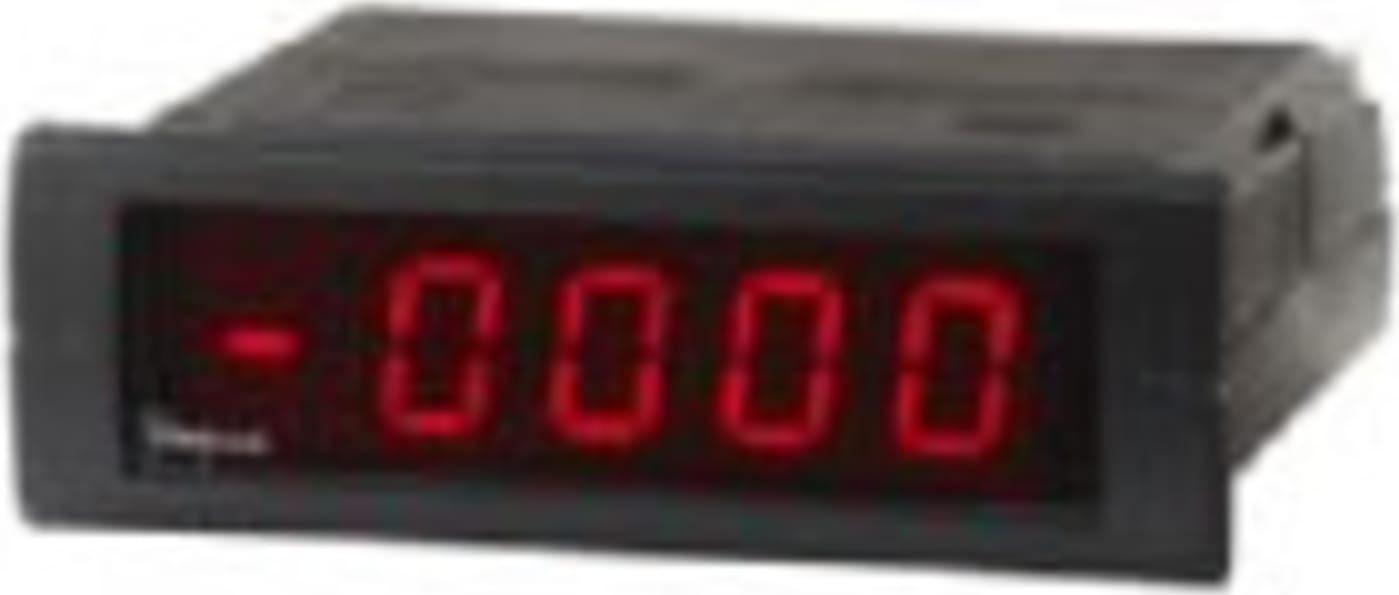

Simpson M23502731 Digital Panel Meter

Name: Simpson M23502731 Digital Panel Meter
Brand: Simpson
SKU: SimpsonM23502731
Price: 185.88 USD
Availability: InStock

0 reviews | Catalog: M23502731 | Model: Simpson M23502731

Compare

3-1/2 Digit, Non Backlit (LCD) Display, 9 - 32 DCV DPM Power Supply, 0 - 10 DCV ( DC Process ) Function Range Panel Meter

3/64 DIN Indicator
Unique mounting bracket allows stacking of multiple units
Screw terminal connectors for easy installation
LCD: 3-1/2 digit, 0.5" high LCD display with optional negative image, bright red backlighting
Limited range display scaling
9 - 32 DCV DPM Power Supply
0 - 10 DCV ( DC Process ) Function Range

View Product Details

List Price: $228.78

In Stock:

View Payment Options

Recommended for you

Simpson’s Mini-Max Indicators provide high quality, accuracy and reliability in a compact, 60mm deep case.

LCD (Liquid Crystal Display) Units oer a 3-1/2 digit, 0.5” (12.7mm) LCD display with an optional bright red, negative image backlight.

All unitsfeature user-selectable decimal point, auto zero and limited scaling capabilities. A unique mounting bracket is provided to allow for vertical or horizontal stacking of multiple indicators. All Mini-Max units feature a 3/64 DIN, high-impact plastic case. The LCD units have a clear viewing window and the LED units have a red viewing window.

DISPLAY
Type	7-segment LCD or LED
Height	LCD 0.5” (12.7mm)
Decimal point	3-position selectable
Overrange indication	LCD Most signicant digit = “1”
LCD Backlighting	Optional negative image, red backlight
Polarity	Auto with “-” indication, “+” implied
POWER REQUIREMENTS
AC Volt	85-250VAC @40-440Hz
DC Volt	9-32VDC
Power Consumption	(Non Fused)
85-250VAC	LCD 4.0VA (2.4W) max
9-32VDC	LCD 3W max
Isolation	250VRMS max
NOISE REJECTION
CMRR	86dB typical
ACCURACY @ 25°C
±(0.1% of Reading ±1 count)
ENVIRONMENTAL
Operating Temperature	0 to 55°C
Storage Temperature	-10 to 60°C
Relative Humidity	0 to 85% non condensing @40°C
Temperature Coecient	(0.2% of reading ±0.5 digits)/°C
Warmup time	Less than 20 minutes
ANALOG TO DIGITAL CONVERSION
Technique	Integrating dual slope
Rate	3 samples/second-typical
MECHANICAL
Bezel	0.95” x 2.84” (24mm x 72mm)
Depth	2.36” (60mm)
Panel cutout	0.88” x 2.68” (22.2 x 68mm)
Weight	LCD 3.5oz (99.2g)
Case Material	94-0,UL-rated ,glass-lled thermoplastic

Temperature / PID Controllers
Size Rectangular	Other Size Rectangular 3/64 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Voltage
Accuracy	±(0.1% of Reading ±1 count)
Power Supply (Panel)	AC Volts, DC Volts
Test Equipment General Attributes
Unique Features	0 - 10 DCV ( DC Process ) Function Range
Product Weight	99.2 GRAMS (0.219 LBS)
Country of Origin	United States
Other Information	Bezel:: 0.95” x 2.84” (24mm x 72mm) Depth:: 2.36” (60mm)
