Simpson M13510145 Digital Panel Meter

Name: Simpson M13510145 Digital Panel Meter
Brand: Simpson
SKU: SimpsonM13510145
Price: 91.18 USD
Availability: InStock

0 reviews | Catalog: M13510145 | Model: Simpson M13510145

Compare

3 1/2 Digit LCD, Negative Red Backlight Display, + 5 DCV DPM Power Supply, 200 DCV Function/ Range, 48 DCV Backlit Power Panel Meter

Minimum depth indicator less than 0.5" (12.7 mm) of space required behind the panel
Fits 3/64 DIN standard cutout
3 1/2 digit, 0.5" (12.7 mm) high LCD display with optional negative image red backlight
12 pin mating connector with 6" lead wires included for easy installation
+ 5 DCV DPM Power Supply
200 DCV Function/ Range
48 DCV Backlit Power

View Product Details

List Price: $112.22

In Stock:

View Payment Options

Recommended for you

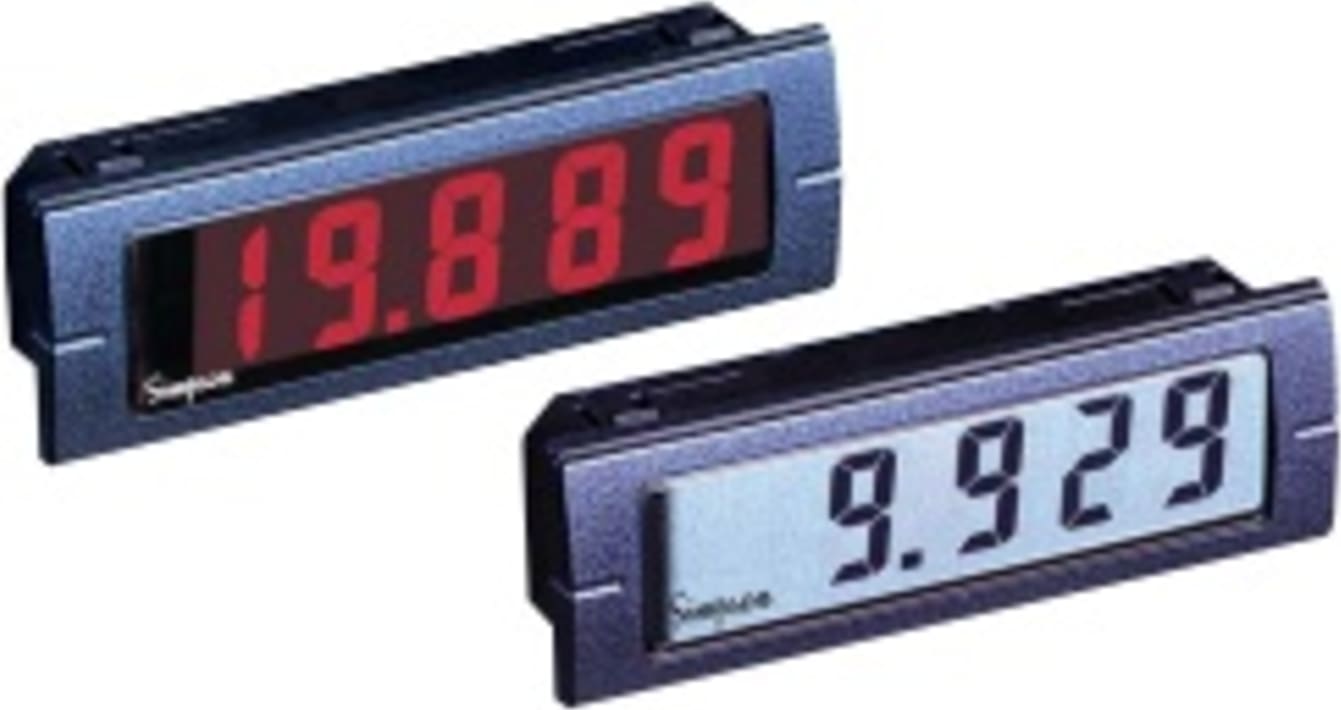

Simpson’s Mini DC Indicators provide high quality, accuracy, and reliability in a compact 12mm deep case. M135 has a 3-1/2 digit, 0.5” LCD display and is available with a negative image, bright red backlight option. Mini M135s feature user-selectable decimal point and display hold.

Three power supply choices are available, and a low battery indication is provided for 9VDC battery applications. Mini units feature a standard 3/64 DIN high-impact plastic case. The standard LCD units have a clear viewing window. The units with optional negative image, bright red backlighting, have a red window.

DISPLAY
Type	7-segment LCD
Height	0.5” (12.7mm)
Decimal point	3-position programmable
Overrange indication	Most significant = “1”
Backlighting	Optional negative image, red backlighting at 5, 10, 12, 24, or 48VDC
Polarity	Auto with “-” indication, “+” indication implied
POWER REQUIREMENTS
DC Power	±5V, +5V, and +9V (Low battery indication provided with 9V units)
Power supply current	2mA max
Backlight supply current	50mA typical For 24 and 48VDC, 10mA typical
ACCURACY @ 25°C	±(0.1% of reading + 1 count)
ENVIRONMENTAL
Operating Temperature	0 to 55°C
Storage Temperature	-10 to 60°C
Relative Humidity	0 to 85% non-condensing
Warmup time	Less than 20 minutes
Temperature Coefficient	(All inputs) (0.2% of input 0.2 digit) /C
NOISE REJECTION
NMRR	60dB, 50/60Hz
CMRR	(with 1KV unbalanced @ 60 Hz): 90dB min
ANALOG TO DIGITAL CONVERSION
Technique	Integrating
Rate	3 samples/second-typical
MECHANICAL
Bezel	0.945” x 2.835” (24mm x 72mm)
Depth	0.473” (12mm)
Panel cutout	0.874” x 2.677” (22.2mm x 68mm)
Weight	10oz (28.3g)
Case Material	94-VO, UL rated ABS

Temperature / PID Controllers
Size Rectangular	Other Size Rectangular 3/64 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Voltage
Accuracy	±(0.1% of reading + 1 count)
Power Supply (Panel)	DC Volts
Test Equipment General Attributes
Unique Features	+ 5 DCV DPM Power Supply 200 DCV Function/ Range 48 DCV Backlit Power
Product Weight	28.3 GRAMS (0.062 LBS)
Country of Origin	United States
Other Information	Bezel: : 0.945” x 2.835” (24mm x 72mm) Depth: : 0.473” (12mm) Panel cutout:: 0.874” x 2.677” (22.2mm x 68mm)
