Simpson H345371122 Digital Panel Meter

Name: Simpson H345371122 Digital Panel Meter
Brand: Simpson
SKU: SimpsonH345371122
Price: 759.66 USD
Availability: InStock

0 reviews | Catalog: H345371122 | Model: Simpson H345371122

Compare

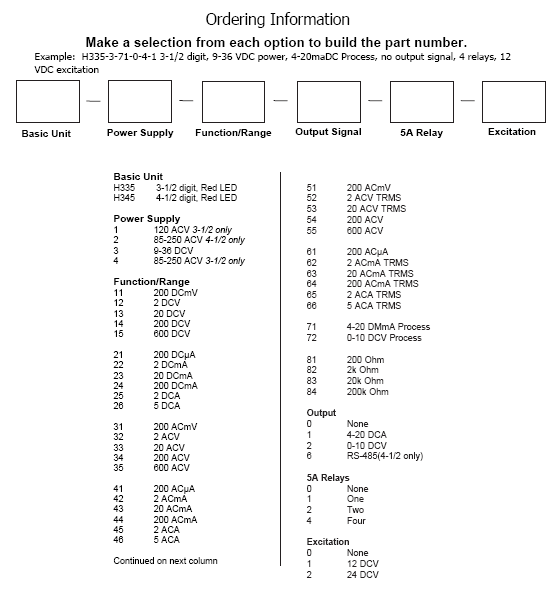

4.5,9-36VDC,4-20MADC,4-20MA,2R,24V

All parameters set from easy to understand front panel access
One, two or four 5-amp relays optional
7 segment 3-1/2 or 4-1/2 digit red LED
Five user-selectable brightness levels
Activated set point indicators on display
16-point scaling linearization (H345)
Screw terminals for easy installation
1/8 DIN, shallow depth case, 3.24”
Min/Max and password lockout
12 or 24 VDC power supply output optional
4-20mA or 0-10 VDC analog retransmission optional

View Product Details

List Price: $1,012.89

Your Price: $759.66

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Display	7-segment, red LED
Quantity	4 or 5
Height	0.56” (14.2 mm)
Decimal Point	4 or 5 position, user programmable
Brightness	5 levels, user programmable
Overrange	Display flashes “EEEE” indicating Maximum Value Exceeded
Underrange	Display flashes “-EEEE” indicating Minimum Value Exceeded
Alarm Indicators	4 LED indicators for up to four independent setpoints
Power Requirements	AC: 120, 85-250 VAC @ 10VA DC: 9-36 VDC @ 10VA
Accuracy @ 25ºC as percent of reading	DC Current High (5A, 2A): 0.2% ± 1 count All others: 0.05% ± 1 count DC Volts High (600V): 0.1% ± 1 count All others: 0.05% ± 1 count Resistance All ranges: 0.1% ± 2 counts AC CurrentHigh (2A, 5A): 0.2% ± 2 counts All others: 0.1% ± 2 counts AC Volts High (600V): 0.1%± 1 count All others:* 0.05% ± 1 count *AC functions measured at 50 Hz, include ± 1 count for each additional 100 Hz above 50 Hz
Environmental	Operating Temp: 0º to +50º CStorage Temp: -10º to +60º C Relative Humidity: <80% Ambient Temp: 25º C Temperature Drift: 100 ppm/ºC Warm-up Time: 10 minutes Noise Rejection: NMRR: 60 dB @ 50-60 Hz CMRR: 70 dB @ 50-60 Hz
A to D Conversion	Technique: Successive approximation with oversampling Sample Rate: 10 conversions per second Display Rate: User programmable 1-420 updates/min (240 default)
Mechanical	Depth: 3.24” (82.3 mm) behind panel Bezel: 3.9” x 2.0” x 0.52” (99 mm x 51 mm x 13.2 mm) Panel Cutout: 3.62” x 1.77” (92 mm x 45 mm) 1/8 DIN Case Material: Flame Retardant ABS Weight: 10 oz. (283.5 g)

Tech Specs

Temperature / PID Controllers
Size Rectangular	1/8 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Process
Size-Face Width	Other
Process Output	Yes
Control / Alarm Setpoints	Yes
Water Proof	No
Splash Proof	No
Relay Output	Yes
Test Equipment General Attributes
Country of Origin	United States
