• NEMA 4X rated front panel
• 16-point scaling linearization
• Peak/valley and password lockout
• Max input signal: 2 amps
• Alarm indicators: 4 LEDs

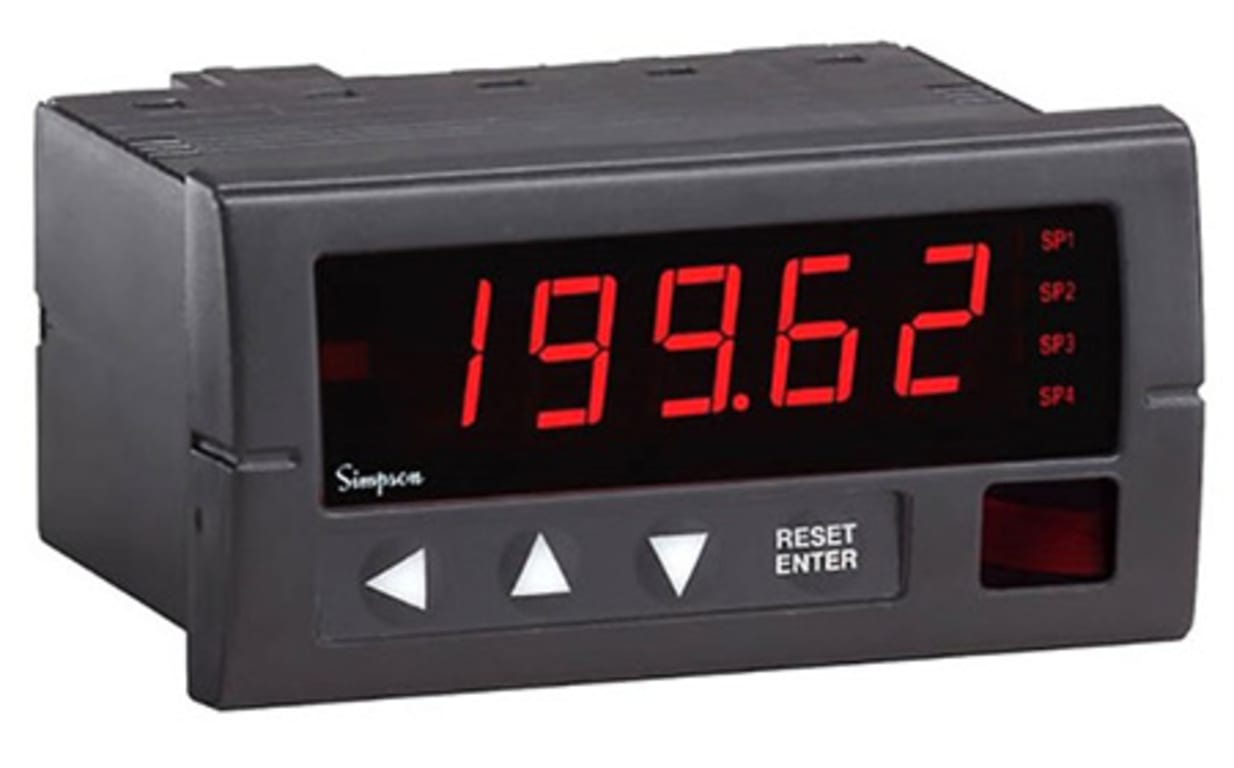

The Simpson Electric Hawk 3 Advanced Digital Panel Meter/Controller has both 3-1/2 and 4-1/2 digit displays. All LEDs are 7 segments and offer 5 brightness levels.

This high-quality instrument has user-programmable parameters, all set from the front panel in easy-to-understand terminology. The display shows activated set point indicators (up to four). The keypad buttons have both audible and tactile feedback to prevent keystroke errors.

The Hawk 3 Series is very diverse offering multiple panel meters that include, DC Voltmeters, DC Ammeters, AC Voltmeters, AC Ammeters, and Ohmmeters. With the Hawk 3 Series, all parameters are set from easy-to-understand front panel access. There is an option of having one, two, or four 5 amp relays. The Hawk 3 Series features five user-selectable brightness levels, peak/valley, and password lockout.

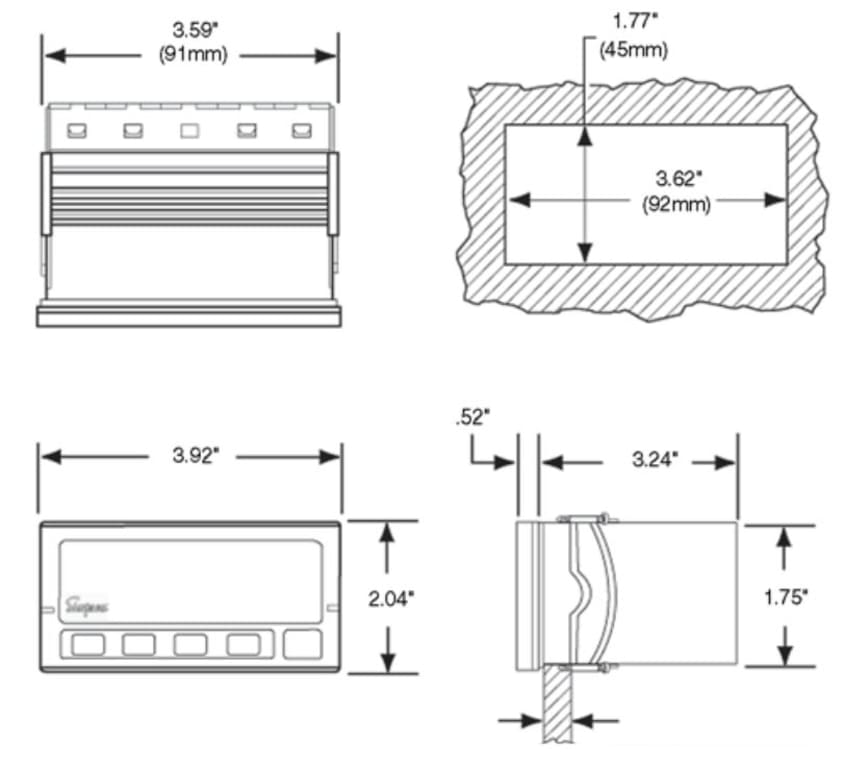

The Hawk 3 Advanced Digital Controller 1/8 DIN meters require a panel cutout of 1.77” (45mm) high by 3.62” (92mm) wide.

To install the Hawk 3 meter into a panel cutout, remove the clips from the side of the meter.

Slide the meter through the panel cutout, then slide the mounting clips back on the meter. Press evenly to ensure a proper fit. Tighten screws.

To replace the engineering unit label, place the tip of a ballpoint pen into the small hole at the base of the engineering label in the bezel. Slide the label up until it pops out. Grasp and remove. Slide the new label half the distance in, then use the ballpoint pen to slide it down into place.
