Simpson H335434100 - Advance Digital Panel Meter

Name: Simpson H335434100 - Advance Digital Panel Meter
Brand: Simpson
SKU: SimpsonH335434100
Price: 289.09 USD
Availability: InStock

0 reviews | Catalog: H335434100 | Model: Simpson H335434100

Compare

3.5, 85-250VAC, 200VAC, 4-20MA

3-1/2 digit, Red LED 85-250 ACV (3-1/2 only) 200 ACV 4-20 DCmA
All parameters set from easy to understand front panel access
One, two or four 5-amp relays optional
Five user-selectable brightness levels
1/8 DIN, shallow depth case, 3.24”
RS485 digital communications optional (H345)
12 or 24 DCV Excitation output optional, maximum 30mA @ 12V and 20mA @ 24V
4-20mA or 0-10 DCV analog retransmission optional
NEMA 4X rated front panel

View Product Details

List Price: $385.45

In Stock:

View Payment Options

Recommended for you

Simpson H335434100 - Advance Digital Panel Meter

3-1/2 digit, Red LED 85-250 ACV (3-1/2 only) 200 ACV 4-20 DCmA
One, two or four 5-amp relays optional
NEMA 4X rated front panel
4-20mA or 0-10 DCV analog retransmission optional
RS485 digital communications optional (H345)

The Simpson Electric Hawk 3 Advanced Digital Panel Meter/Controller has both 3-1/2 and 4-1/2 digit displays. All LEDs are 7 segment and offer 5 brightness levels.

This high quality instrument has user-programmable parameters, all set from the front panel in easy to understand terminology. The display shows activated set point indicators (up to four). The keypad buttons have both audible and tactile feedback to prevent keystroke errors.

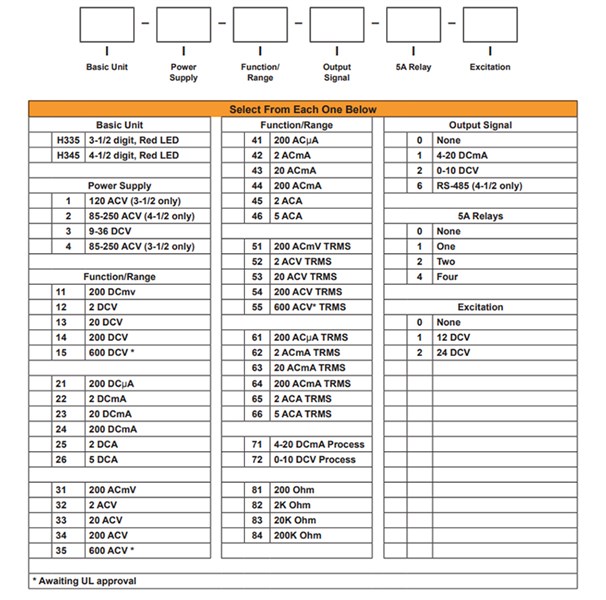

Ordering Information

Simpson H335434100 Advanced Digital Panel Meter Specifications
DISPLAY
Type	7- segment, red LED, 4 or 5 digits
Height	0.56” (14.2mm)
Brightness	5 settings, user programmable
Decimal Point	4 or 5 position, user programmable
Overrange Indication	Display flashes “EEEE” indicating Maximum Value Exceeded (Example: H335)
Underrange Indication	Display flashes “-EEE” indicating Minimum Value Exceeded (Example: H335)
Alarm Indicators	4 LED indicators for up to four independent setpoints
Linearization	H335 has a 2 points H345 has a 16 points
POWER REQUIREMENTS
AC	85 to 250 VAC or 120VAC @ 10VA
DC	9 to 36 DCV @ 10VA
Isolation	250V RMS MAX
Note: Each supply is shown at the maximum and minimum values except the 120 VAC unit, which is allowed ± 10%
ENVIRONMENTAL
Operating Temperature	0 to 50ºC
Storage Temperature	-10 to +60°C
Relative Humidity	< 80% for the temp. up to 31ºC and decreasing linearly to 50% relative humidity at 50°C
Ambient Temp	25°C
Temperature Drift	± 100 ppm /°C
Warmup time	10 minutes
NOISE REJECTION
NMRR	60 dB @ 50-60 Hz
CMRR	70 db @ 50-60 Hz
Note: For indoor use to an altitude up to 200m
ANALOG TO DIGITAL CONVERSION
Technique	Successive approximation with oversampling
Sample Rate	10 conversions per second
Display Rate	User Programmable from 1 - 420 updates / minute (240 default)
