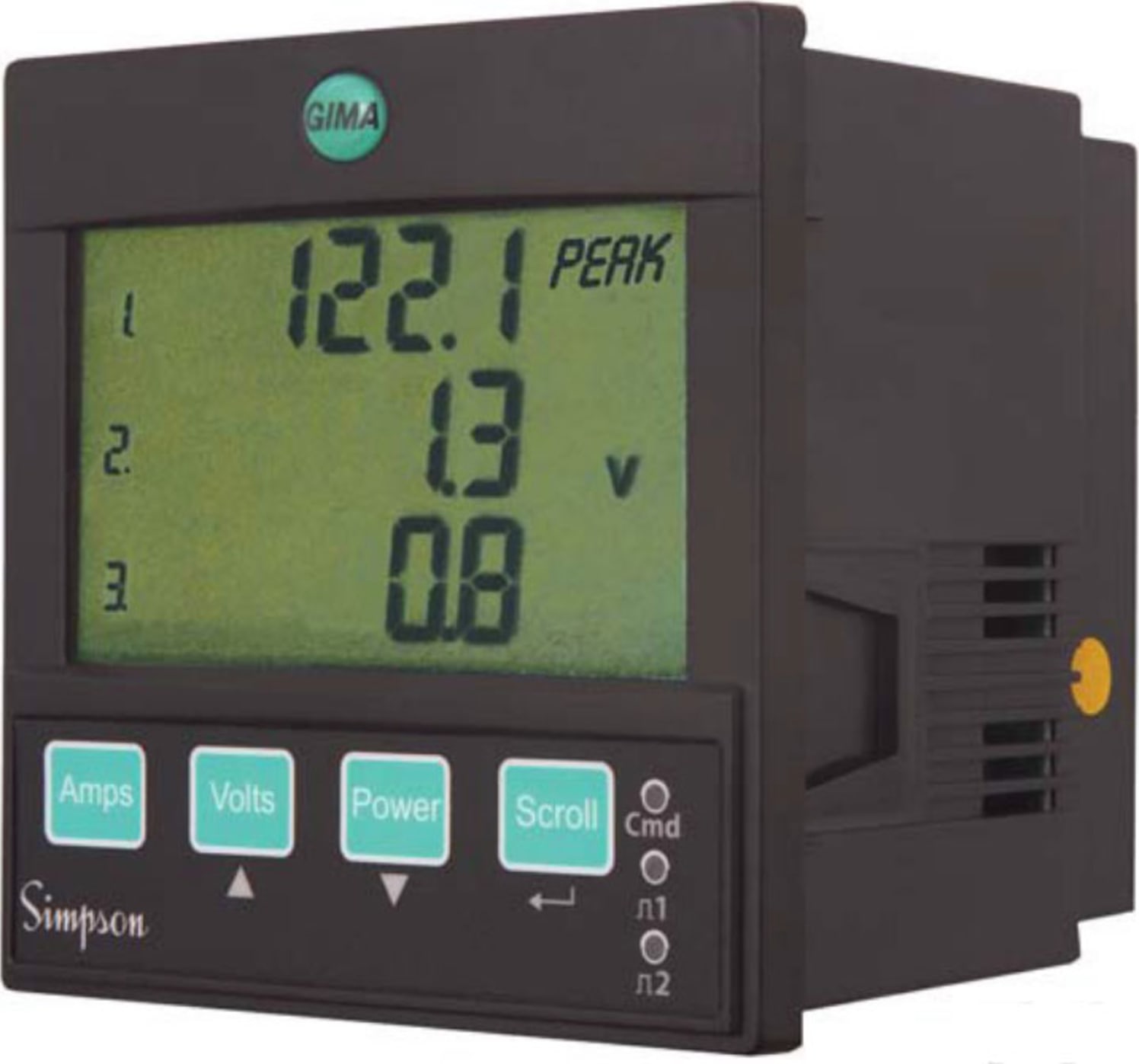

| General Specifications |
| INPUT |
| System |
3-phase, 3 or 4 wire unbalanced load |
| Voltages |
120/208, 120/240, 277/480, 63/110 |
| Measurement Range |
20% to 120% |
| Current |
5 amp from external CTs Fully Isolated |
| Measurement Range |
5% to 120% |
| Operating Frequency |
45 to 65 Hz |
| Harmonics |
Up to the 30th harmonic |
| Input Loading |
| Voltage |
Less than 0.1VA per phase |
| Current |
Less than 0.1VA per phase |
| Overload |
| Voltage |
x2 for 2 seconds max. |
| Current |
x40 for .5 second max |
| Auxiliary Supply |
| Standard |
115V±15% 45-65Hz |
| Optional |
230V±15% 45-65Hz |
| Display |
Custom backlit supertwist LCD 3 lines of .47” |
| General |
(12mm) digits plus .15” (3.8mm) legends |
| Update Rate |
Once/Second |
| ENVIRONMENTAL |
| Temperature |
14°F to 149°F (-10°C to 65°C) operating |
| Humidity |
<75% RH non-condensing |
| Programming |
| CT Primary |
5amp to 6500 amp |
| VT Primary |
60v to 50,000v |
| Pulse Outputs |
2 |
| Function |
| Output No. 1 |
Wh (G200, G300 & G400 only) |
| Output No. 2 |
Total varh (G300 & G400 only) |
| Pulse Length |
100ms to 20 seconds |
| Isolation |
2.2KV (50V Output No. 1 to Output No. 2) |
| Scaling |
Settable 1, 10 or 100 pulse output rate |
| Accuracy |
| Parameter |
Spec Range |
Spec |
| Phase Current |
5% to 120% lb |
±0.2% lb (1% *Rdg) ±1 Digit |
| Neutral Current |
5% to 120% lb |
±0.6% lb (2% *Rdg) ±1 Digit |
| Phase Voltage |
20% to 120% Vb |
±0.2% Vb (1% *Rdg) ±1 Digit |
| Voltage LL |
20% to 120% Vb |
±0.3% Vb (1% *Rdg) ±1 Digit |
| Phase Watts |
5% to 120% FS |
±0.4% FS (1% *Rdg) ±1 Digit |
| Phase VA |
5% to 120% FS |
±0.6% FS (1.5% *Rdg) ±1 Digit |
| Phase var |
5% to 120% FS |
±0.8% FS (2% *Rdg) ±1 Digit |
| Phase PF |
|
±0.2 Degrees |
| System Watts |
5% to 120% FS |
±0.6% FS (1% *Rdg) ±1 Digit |
| System VA |
5% to 120% FS |
±1% FS (1.5% *Rdg) ±1 Digit |
| System var |
5% to 120% FS |
±1.5% FS (2% *Rdg) ±1 Digit |
| System PF |
|
±0.2 Degrees |
| Frequency |
45Hz to 65Hz |
±.05 Hz |
| Note: |
*Rdg = Reading |

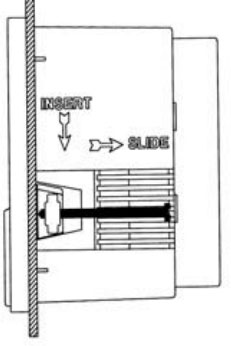

| MECHANICAL |
| Bezel |
3.79” x 3.79” (w/ .29” lip) |
| Depth |
3.35” |
| Panel Cutout |
3.62” x 3.62” |
| Weight |
14 oz. |
