Simpson G1002310 Panel Meter 5 AMP, G100-230VAC, 277/480 VOLT

Name: Simpson G1002310 Panel Meter 5 AMP, G100-230VAC, 277/480 VOLT
Brand: Simpson
SKU: SimpsonG1002310
Price: 429.00 USD
Availability: InStock

0 reviews | Catalog: G1002310 | Model: Simpson G1002310

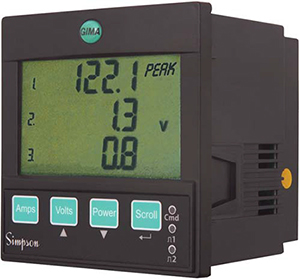

Simpson GIMA Three Phase Digital Panel Meter

Compare

G100-230VAC, 277/480 VOLT, 5 AMP

G100-230VAC, 277/480 VOLT, 5 AMP
Four model types designed to fit a wide range of applications
Easy installation - software detection/correction of wiring errors
Wide backlit LCD display for easy viewing
Easy to use - four keys select all parameters
Use for single or three-phase applications
Not for use with grounded delta applications
Modbus communication option available

View Product Details

List Price: $528.00

In Stock:

View Payment Options

Recommended for you

Simpson G1002310Three Phase Digital Panel Meter

G100-230VAC, 277/480 VOLT, 5 AMP
Four model types designed to fit a wide range of applications
Easy installation - software detection/correction of wiring errors
Wide backlit LCD display for easy viewing
Easy to use - four keys select all parameters
Use for single or three-phase applications
Not for use with grounded delta applications
Modbus communication option available

Mounting Requirements

Panels should be .04 to .16 inches (1mm to 4mm) thick with a square cut-out of 3.62” x 3.62” (92mm x 92mm.)
A minimum depth of 2.83” (72mm) should be allowed behind the panel for the meter.
Remove the panel mounting clips and insert the meter into the cutout from the front of the panel.
Push the meter home.

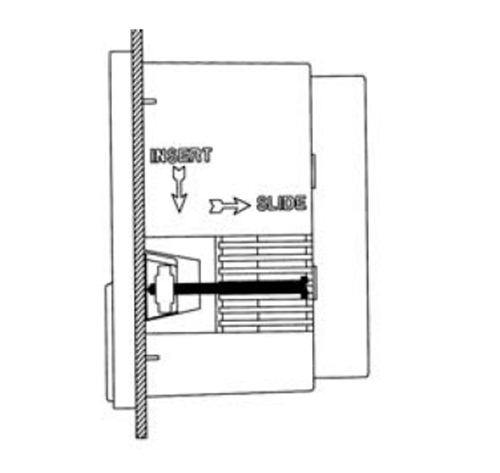

Ensure the screws in each panel mount clip are fully retracted and insert the clips as shown in the diagram below.
Tighten the screws to secure the meter firmly in the panel. Do not overtighten.

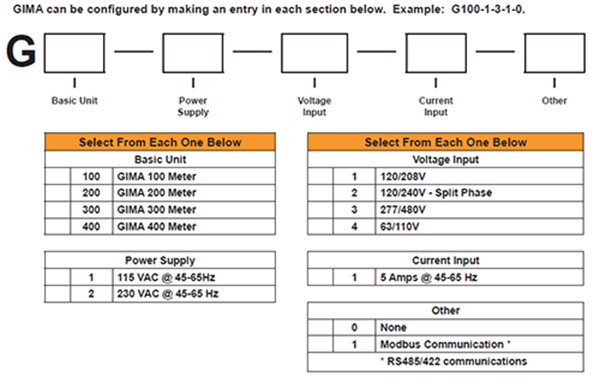

Ordering Information

General Specifications
INPUT
System	3-phase, 3 or 4 wire unbalanced load
Voltages	120/208, 120/240, 277/480, 63/110
Measurement Range	20% to 120%
Current	5 amp from external CTs Fully Isolated
Measurement Range	5% to 120%
Operating Frequency	45 to 65 Hz
Harmonics	Up to the 30th harmonic
Input Loading
Voltage	Less than 0.1VA per phase
Current	Less than 0.1VA per phase
Overload
Voltage	x2 for 2 seconds max.
Current	x40 for .5 second max.
Auxiliary Supply
Standard	115V±15% 45-65Hz
Optional	230V±15% 45-65Hz
Display	Custom backlit supertwist LCD 3 lines of .47”
General	(12mm) digits plus .15” (3.8mm) legends
Update Rate	Once/Second
ENVIRONMENTAL
Temperature	14°F to 149°F (-10°C to 65°C) operating
Humidity	<75% RH non-condensing
Programming
CT Primary	5amp to 6500 amp
VT Primary	60v to 50,000v
Pulse Outputs	2
Function
Output No. 1	Wh (G200, G300 & G400 only)
Output No. 2	Total varh (G300 & G400 only)
Pulse Length	100ms to 20 seconds
Isolation	2.2KV (50V Output No. 1 to Output No. 2)
Scaling	Settable 1, 10 or 100 pulse output rate

Tech Specs

Temperature / PID Controllers
Size Rectangular	1/4 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Dual
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current, Voltage
Size-Face Width	Other
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
