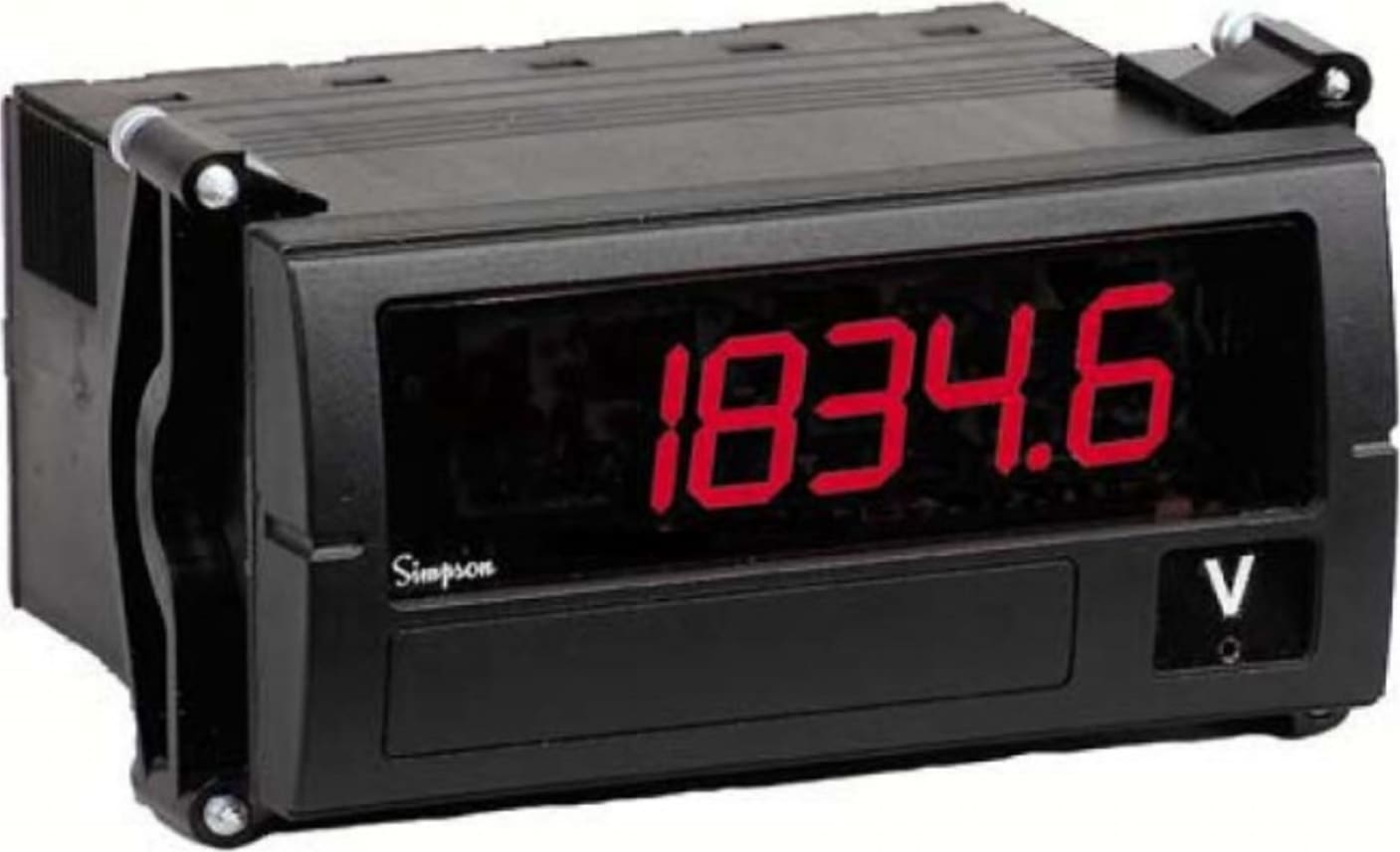

Simpson F453430 Digital Panel Meter

Name: Simpson F453430 Digital Panel Meter
Brand: Simpson
SKU: SimpsonF453430
Price: 462.02 USD
Availability: InStock

0 reviews | Catalog: F453430 | Model: Simpson F453430

Compare

4 1/2 digit LED, 9-32 DCV Power Supply, 20 ACmA Function Range Digital Panel Meter

Broad Range Display Scaling
Short 2.94” (74.7mm) Deep, 1/8 DIN Case
Screw Terminal Connector for Easy Installation
Optional Isolated 9-32VDC Power Supply
Two Factory-Settable Ranges: 2A, 5A
Shallow 3.12" (79 mm) deep case fits standard 1/8 DIN cutout
4 1/2 digit, 0.56" (14.2 mm ) high, bright red LED display
9-32 DCV Power Supply
20 ACmA Function Range

View Product Details

List Price: $568.65

Your Price: $462.02

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Simpson F453430 4 1/2 digit LED, 9-32 DCV Power Supply, 20 ACmA Function Range Digital Pan ...
Price
In Stock
Size Rectangular	1/8 DIN
Compare	Add to compare

Recommended for you

The Falcon Series digital indicators are premium quality 1/8 DIN meters for industrial applications. All Falcon units feature jumper-selectable decimal point (internal and on the connector for remote decimal point) and display scaling, providing wide application flexibility. In addition, most signal input ranges are easy to change with jumpers on the main board. The Falcon has a 0.56” bright red LED display for high
visibility.

Compactly designed for applications requiring minimal rear panel depth, the Falcon fits a standard 1/8 DIN panel cutout (91.9mm x 45mm) and requires less than 3” behind the panel. A screw terminal connector is a standard feature for easy wiring of the power supply and signal input connections.

DISPLAY
Type	7-segment, red LED
Height	0.56” (14.2mm)
Decimal Point	4-position programmable internally or at terminal block J112
Overrange indication	most significant digit = “1”; other digits blank
Polarity	Automatic, with “-” indication, “+” indication implied
POWER REQUIREMENTS
AC Voltages	120 or 220VAC, ±10% 50/60Hz
DC Voltages	9-32VDC; 9V -1% and 32+1%
Power Consumption	2VA
ACCURACY @25°C
±0.5% of reading ±35 count
ENVIRONMENTAL
Operating Temperature	0 to 55ºC
Storage Temperature	-10 to 60ºC
Relative Humidity	0 to 85% non-condensing
Temperature Coefficient	(±0.05% of input ±0.5 count)/ºC
Warm-up Time	Less than 15 minutes
Response Time	Less than 1 second
NOISE REJECTION
NMRR	60dB, 50/60Hz
CMRR	(w/1kΩ unbalanced @60Hz):90dB min.
ANALOG TO DIGITAL CONVERSION
Technique	Dual slope integration
Rate	2.5 samples per second, nominal
MECHANICAL
Bezel	3.78” x 1.89” x .51” (96 x 48 x 13mm)
Depth	2.94” (74.7mm)
Panel Cut-out	3.62” X 1.77” (91.9 x 45mm 1/8 DIN)
Case Material	94V-1, UL rated Noryl®
Weight	9.0oz (255.1g)

Tech Specs

Temperature / PID Controllers
Size Rectangular	1/8 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current
Accuracy	±0.5% of reading ±35 count
Window Material	Other
Power Supply (Panel)	AC Volts, DC Volts
Test Equipment General Attributes
Unique Features	4 1/2 digit, 0.56" (14.2 mm ) high, bright red LED display 9-32 DCV Power Supply 20 ACmA Function Rang
Product Weight	255.1 LBS
Calibration Included	Factory Calibration
Country of Origin	United States
Other Information	Bezel: : 3.78” x 1.89” x .51” (96 x 48 x 13mm) Depth:: 2.94” (74.7mm) Panel Cut-out: : 3.62” X 1.77” (91.9 x 45mm 1/8 DIN)
