Simpson F451211 - Panel Meter

Name: Simpson F451211 - Panel Meter
Brand: Simpson
SKU: SimpsonF451211
Price: 280.51 USD
Availability: InStock

0 reviews | Catalog: F451211 | Model: Simpson F451211

Compare

4-1/2, 120VAC, 200UADC, 12VDC

4 1/2 digit LED 120 ACV 200 DC A 12 DCV @ 25mA max. current
1/8 DIN Indicator
3-1/2 or 4-1/2 digit bright red LED display
Front panel pops off for easy decimal
point setting and display scaling
Only 3.12” (79mm) required behind panel
Optional excitation output
NEMA 4X enclosure optional
Din Rail Adapter available

View Product Details

List Price: $345.25

In Stock:

View Payment Options

Recommended for you

Simpson F451211 - Panel Meter

4 1/2 digit LED 120 ACV 200 DC A 12 DCV @ 25mA max. current
Din Rail Adapter available
NEMA 4X enclosure optional
Point setting and display scaling
3-1/2 or 4-1/2 digit bright red LED display

Simpson’s Mini-Max Process Indicators provide high quality, accuracy and reliability in a compact, 60mm deep case. Units offer 3-1/2 digit, 0.5” (12.7mm) LCD display and are available with a bright red, negative image backlight option. All units feature user-selectable decimal point, auto zero and limited scaling capabilities. A unique mounting bracket is provided to allow for vertical or horizontal stacking of multiple indicators. All Mini-Max units feature a 3/64 DIN, high-impact plastic case. The standard units have a clear viewing window, and the units with optional negative image, red backlighting have a red window.

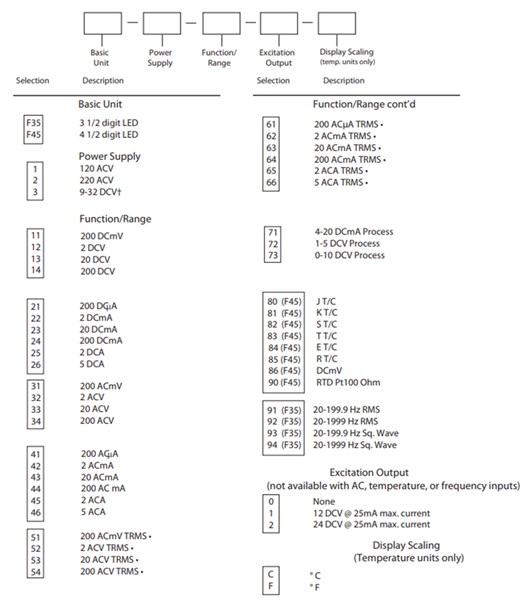

Ordering Information

Specification for F45 Frequency Meter
Display
Type	7-segment, red LED
Height	0.56" (14.2mm)
Decimal Point	Jumper-selectable 2-position (corresponding to resolution desired)
Overrange indication	Most significant digit = "1"; other digit blank
Polarity	Automatic, with "-" indication, "+" indication implied
Power Requirements
AC Voltages	120 or 220VAC, ±10% 50/60Hz
DC Voltages	9-32 DCV, ±1%
Power Consumption	3VA
Environmental
Operating Temperature	0 to 55°C
Storage Temperature	-10 to 60°C
Relative Humidity	0 to 85% non-condensing
Warm-up Time	Less than 20 minutes
Inputs
Thermocouple	J, K, E, T, R, and S
RTD	Platinum 100 (.00385 alpha), 2, 3 or 4 wire
Millivolt	±84mV reading of uncompensated mV
Input Impedance	7M:(typical)
Conversion Rate	2-1/2 times per second
Open Thermocouple Detection	-1 on display, -40nA bias on thermocouple
General Specifications
Display
Type	7-segment, red LED
Height	0.56" (14.2mm)
Decimal Point	user-programmable, internally or on the terminal block
Overrange indication	most significant digit = "1"; other digits blank
Polarity	Automatic, with "-" indication, "+" indication implied
Power Requirements
AC Voltages	120 or 220VAC, ±10% 50/60Hz
DC Voltages	9-32DCV, ±1%
Power Consumption	F35: 3VA, F45: 2VA
ISOLATION	250V RMS MAX
Accuracy @25°C
F45 DC Process/Voltage	±0.02% of reading ± 1 count
F35 DC Process/Voltage	±0.1% of reading ± 1 count
F45 DC Current	±0.05% of reading ±1 count 2A ± 5 counts 5A ± 5 counts
F35 DC Current	±0.1% of reading ± 1 count 2A ± 5 counts, 5A ± 5 counts
F45 AC Voltage/Current	±0.5% of reading ± 35 counts
F35 AC Voltage/Current	±1% of reading ± 5 counts (45Hz-1KHz)
Environmental
Operating Temperature	0 to 55°C
Storage Temperature	-10 to 60°C
Relative Humidity	0 to 85% non-condensing
Warm-up Time	Less than 15 minutes
Noise Rejection
NMRR	F35=50dB, 50/60Hz; F45=60dB, 50/60Hz
CMRR	(w/1K unbalanced @ 60Hz) 90dB min.
A To D Conversion
Technique	Dual slope integration
Rate	F35=3 samples per second, nominal; F45=2.5 samples per second,nominal
Mechanical
Bezel	3.78" x 1.89" x .51"
Depth	2.94"
Panel Cutout	3.62" X 1.77"
Case Material	94V-1, UL rated Noryl®
Weight	9.0oz (255.1g)
Temperature Coefficient
F35 AC/TRMS (Voltage/Current)	(±0.1% ± 0.5 count)/°C
F35 DC (Voltage/Current/Process)	(±0.01% ± 0.05 count)/°C
F45 AC (Voltage/Current)	(±0.05% ± 0.5 count)/°C
F45 DC Current	(±0.01% ± 0.1 count)/°C
F45 DC (Voltage/Process)	(±0.05% ± 0.1 count)/°C
