Simpson APM-MAX-M23-PU-4R - Positive LCD, volt, amp, frequency or power monitor, RTU

Name: Simpson APM-MAX-M23-PU-4R - Positive LCD, volt, amp, frequency or power monitor, RTU
Brand: Simpson
SKU: SimpsonAPM-MAX-M23-PU-4R
Price: 353.81 USD
Availability: InStock

0 reviews | Catalog: APM-MAX-M23-PU-4R | Model: Simpson APM-MAX-M23-PU-4R

Compare

Positive LCD, volt, amp, frequency or power monitor, RTU

Digital and analog outputs
Full 4 digit readout for accuracy
User-configurable alarms
60 segment curved bar graph display
Combined digital and bar graph display
Selectable to measure voltage, current, frequency or watts
16 million colors Programmable RGB backlight for user alerts.
USB port for custom user settings via the free easy-to-use software

View Product Details

List Price: $435.46

Your Price: $353.81

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Simpson APM-MAX-M23-PU-4R - Positive LCD, volt, amp, frequency or power monitor, RTU

Digital and analog outputs
Full 4 digit readout for accuracy
User-configurable alarms
60 segment curved bar graph display
Combined digital and bar graph display

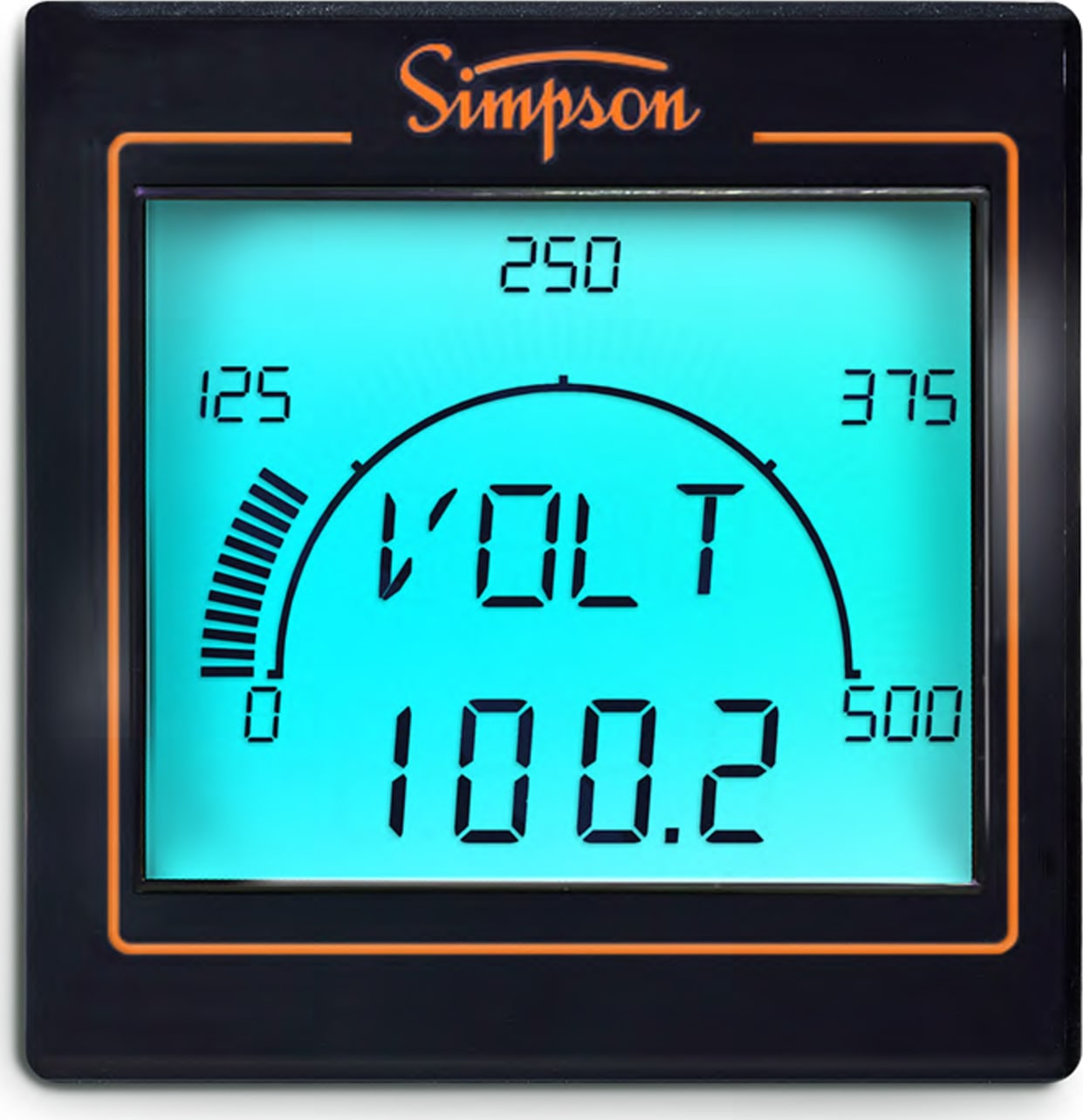

Designed for a wide range of power monitoring applications, the MAK MAX combines the instant visual representation of an analog meter with the speed and accuracy of a digital meter for instant recognition and precision measurement. The large 81.5mm x 66mm display features a two-line display, programmable scale, alarm set-points and color-changing, full color RGB backlight for instant alerts.

The MAX features digital and analog outputs and serial MODBUS® RTU as standard for communication with other components in a system as well as an IP65 rating and our industry leading three-year warranty.

Mechanical
Dimensions	108mm x 108mm x 65mm [4.27" x 4.27" x 2.54"]
Cutout	Square: 68mm x 68mm [2.68" x 2.63"] Circle: 96mm [3.8" Diameter]
Connection Type	Screw Terminals
Wire Gauge	0.8mm² - 3.3mm² (18AWG to 12AWG)
Weight	340 grams

Measurement
Input range (V1)	0-600V DC/AC 47-63Hz
Input range (V2)	-
Current Input range (Direct)	0-5A DC/AC 45-65Hz
Current Input range (w/shunt)	0-500mV DC
Frequency (AC)	0-400Hz
Power Measurement	Watts, VA & Power Factor
Accuracy (DC & Frequency)	0.1%
Accuracy (AC)	0.5%
Display modes	RMS
Environmental
Temperature - operating	-10 to +60°C
Temperature - storage	-40 to +70°C
IP rating (from the front)	IP65
Power supply
Universal (AC)	100-240 V AC (50-60Hz)
Display
Number of digits	4
Digit height	14.5mm [0.57"]
Digit height of annunciator	6.8mm [0.27"]
Number of message characters	4
Backlight colors	Full RGB backlight and White
LCD display	Positive
Outputs
Max voltage	34V
Max current	500mA
Analog output	4-20mA or 0-10V
Communication
Modbus^®	RTU
Certification	UL and cUL, CE
Mechanical
Dimensions	108mm x 108mm x 65mm [4.27" x 4.27" x 2.54"]
Cutout	Square: 68mm x 68mm [2.68" x 2.63"] Circle: 96mm [3.8" Diameter]
Connection Type	Screw Terminals
Wire Gauge	0.8mm² - 3.3mm² (18AWG to 12AWG)
Weight	340 grams

Tech Specs

Temperature / PID Controllers
Type (Controllers)	Digital
Input Types (Controllers/Recorders)	Voltage
Output Types (Controllers/Recorders)	Milliamp (mA)
# Digit Display	4
Display (Controllers)	LCD
Backlit Display	Yes
Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog, Digital
Style (Panel Meter)	Rectangular/Square
Water Proof	Yes
Test Equipment General Attributes
Warranty	3 YEARS
Safety Approval	CE, UL
IP Rating	IP65
Product Weight	0.7 LBS
Product Height	2.54 IN
Product Length	4.27 IN
Product Width	4.27 IN
Power Supply Voltage	120V 50/60 Hz, 120V/220V Universal
