Simpson 35101 Panel Meter WV 1287 240 45-55 HZ 2.5

Name: Simpson 35101 Panel Meter WV 1287 240 45-55 HZ 2.5
Brand: Simpson
SKU: Simpson35101
Price: 231.52 USD
Availability: InStock

0 reviews | Catalog: 35101 | Model: Simpson 35101

Compare

1287 240 45-55 HZ 2.5 WV

View Product Details

List Price: $272.39

Your Price: $231.52

In Stock:

Recommended for you

General Specification
Accuracy	± 2% F.S. (Iron-Vane), ± 3 F.S. (Rectified)
Movement	N/A
Tracking	± 3%
Shielding	Calibration is unaffected by magnetic panel mounting.
Response Time	1.5 seconds maximum
Overload (1 sec.)	10 times F.S.
Overload (Continuous)	1.5 times F.S.
Repeatability	2% AC Current, DC Process, 3% AC Voltage, DC Voltage, Wattmeters, 0.5% DC Current
Dial	Sharp clear scale.
Resistance	± 15% of meter impedance
Operating Temperature	- 4ºF to + 149ºF (- 20ºC to + 65ºC)
Case	High density black plastic
Pointer	All other models: Spade with black matte finish
Scale Length	N/A
Net Weight	N/A

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Frequency

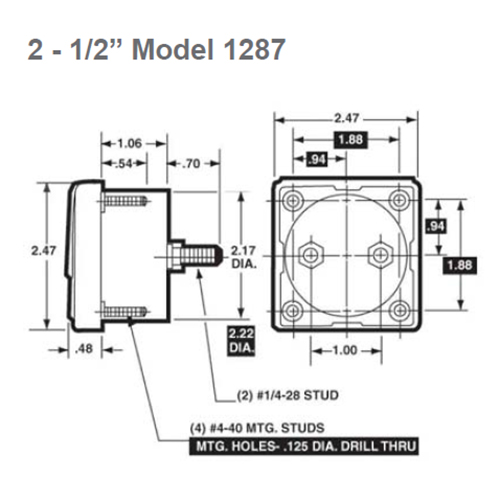

Size-Circular	2.22 IN
Size-Face Width	2 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
