Simpson 24505 Panel Meter RED LED, 2865 0-200 DCUA, 120 VAC

Name: Simpson 24505 Panel Meter RED LED, 2865 0-200 DCUA, 120 VAC
Brand: Simpson
SKU: Simpson24505
Price: 282.58 USD
Availability: InStock

0 reviews | Catalog: 24505 | Model: Simpson 24505

Compare

2865 0-200 DCUA, 120 VAC, RED LED

2865 0-200 DCUA, 120 VAC, RED LED
3 ½ digit red LED display
Input/output edge connector
“U” – shaped mounting bracket
Jumper – selectable decimal point

View Product Details

List Price: $332.45

Your Price: $282.58

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Simpson 24505 2865 0-200 DCUA, 120 VAC, RED LED	Simpson 24508 2865 0-200 DCMA, 120 VAC, RED LED	Simpson 24507 2865 0-20 DCMA, 120 VAC, RED LED	Simpson 24504 2865 0-20 DCUA, 120 VAC, RED LED	Simpson 24506 2865 0-2 DCMA, 120 VAC, RED LED
Price
In Stock
Size Rectangular	1/8 DIN	1/8 DIN	1/8 DIN	1/8 DIN	1/8 DIN
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

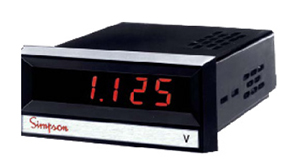

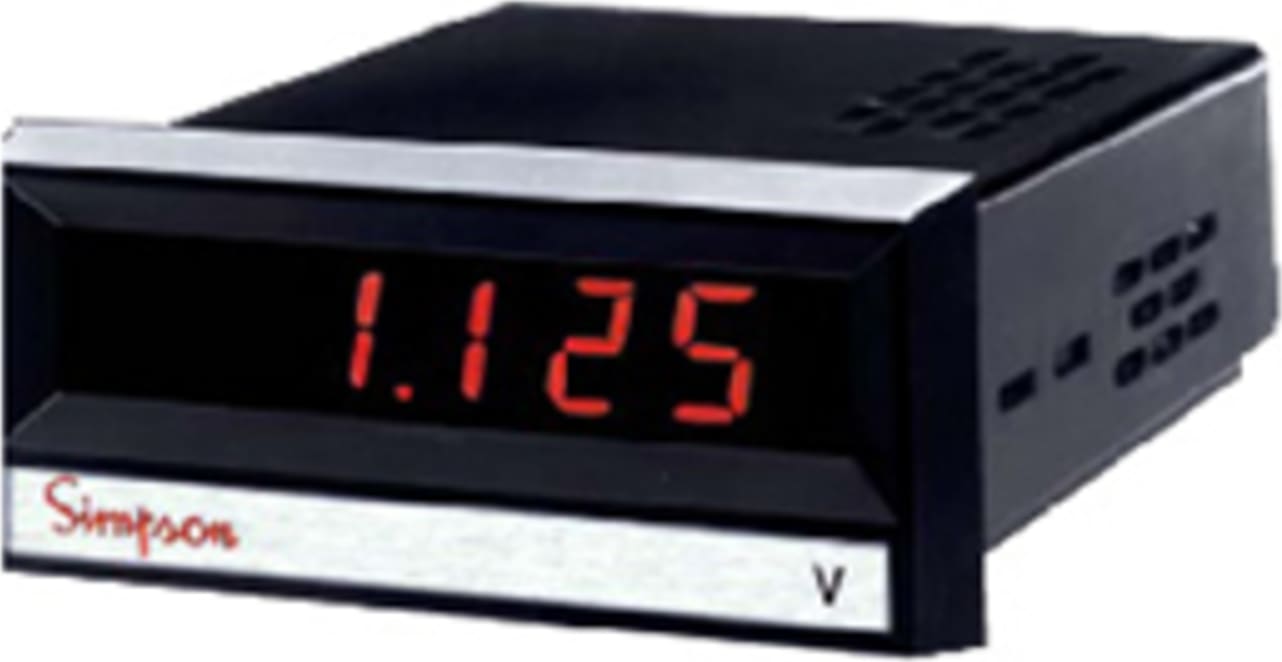

Simpson 24505 2800 Series Digital Panel Meter

2865 0-200 DCUA, 120 VAC, RED LED
3 ½ digit red LED display
Input/output edge connector
“U” – shaped mounting bracket
Jumper – selectable decimal point

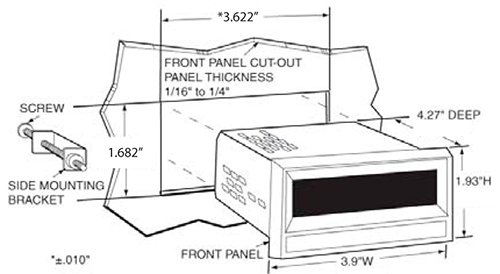

Mounting Instructions

The 2800 indicators are installed with the mounting hardware provided.
Slide the meter through the panel cutout.
Next, insert a side mounting bracket to each side of the meter.
Use the two holes located near the bezel to attach them to the meter.
Slide the brackets back until they lock into the meter.
Turn the screws in each bracket until they firmly contact the panel surface.

General Specifications
DISPLAY
Type	7- segment, red LED
Height	0.56” (14.2mm)
Decimal Point	Jumper-selectable
Overrange Indication	All digits blink “0”
POWER REQUIREMENTS
AC Voltages	120V, ±10%, 50Hz to 400 Hz, 3VA
DC Voltages	5 DCV
Rated Circuit to Ground Voltage	250 DCV (Models 2865 and 2869) or -4.06 to +4.5 DCV (Model 2866)
ACCURACY @ 23°C, ±2°C	± (1.0% of input +5 counts) 45Hz to 1KHz
ENVIRONMENTAL
Operating Temperature	0 to 55ºC
Storage Temperature	-40 to 60°C
Relative Humidity	0 to 85°, non-condensing
Temperature Coefficient	± (0.1% of input) ± 0.5 count / per °C
Warmup time	15 minutes
A TO D CONVERSION
Technique	Dual slope
Rate	2.5 samples / second-nominal
MECHANICAL
Bezel	1.93” x 3.9” (49mm x 99mm)
Depth	4.72” (120mm)
Panel cutout	1.68” x 3.622” (42.72mm x 92mm)
Weight	12.5 oz. (354.3 g)

Tech Specs

Temperature / PID Controllers
Size Rectangular	1/8 DIN
Panel Meters/Panel Meters Template
Type (Panel Meter )	Digital
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current
Size-Face Width	Other
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
