Simpson 17997 Panel Meter 250DG 2524L----1-0-1 DCMA 4.5

Name: Simpson 17997 Panel Meter 250DG 2524L----1-0-1 DCMA 4.5
Brand: Simpson
SKU: Simpson17997
Price: 337.00 USD
Availability: InStock

0 reviews | Catalog: 17997 | Model: Simpson 17997

Compare

2524L----1-0-1 DCMA 4.5 250DG

2524L----1-0-1 DCMA 4.5 250DG
Excellent readability more than double the scale length of standard movements
Sealed round metal or square plastic cases with glass window
Zero adjust from front panel

View Product Details

List Price: $396.48

Your Price: $337.00

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Simpson 17997 250° Long Scale Panel Meters

2524L----1-0-1 DCMA 4.5 250DG
Excellent readability more than double the scale length of standard movements
Zero adjust from front panel
Excellent readability more than double the scale length of standard movements

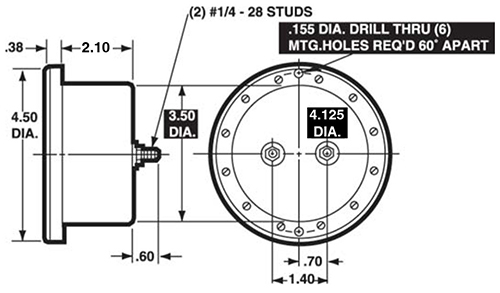

Dimension

4-1/2” Models 2524, 2544 Round Style

General Specifications
Accuracy	AC ±3% full scale (F.S.) DC ±2% full scale (F.S.)
Movement	AC Rectifier type DC Self-shielded, permanent magnet
Suspension	Pivot and jewel
Tracking	±3%
Shielding	Calibration is unaffected by magnetic panel mounting
Response Time	1.5 seconds maximum
Overload (1 sec.)	10 times F.S.
Overload (Continous)	1.5 times F.S.
Repeatability	2%
Dial	Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
Case	Models 2523, 2524, 2543 & 2544: Metal
Resistance	±15% of meter impedance
Operating Temperature	-4°F to +149°F (-20°C to +65°C)
Pointer	Red, knife-edge
Scale Length	Models 2524, 2544: 6.54" (166.0mm)

Tech Specs

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Circular
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current
Size-Circular	3.5 IN
Size-Face Width	4 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
