Simpson 17974 Panel Meter 250DG 2523L----0-10 DCMA 3.5

Name: Simpson 17974 Panel Meter 250DG 2523L----0-10 DCMA 3.5
Brand: Simpson
SKU: Simpson17974
Price: 308.46 USD
Availability: InStock

0 reviews | Catalog: 17974 | Model: Simpson 17974

Compare

2523L----0-10 DCMA 3.5 250DG

2523L----0-10 DCMA 3.5 250DG
Excellent readability more than double the scale length of standard movements
Sealed round metal or square plastic cases with glass window
Zero adjust from front panel

View Product Details

List Price: $362.91

Your Price: $308.46

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Simpson 17974 250° Long Scale Panel Meters

2523L----0-10 DCMA 3.5 250DG
Excellent readability more than double the scale length of standard movements
Zero adjust from front panel
Excellent readability more than double the scale length of standard movements

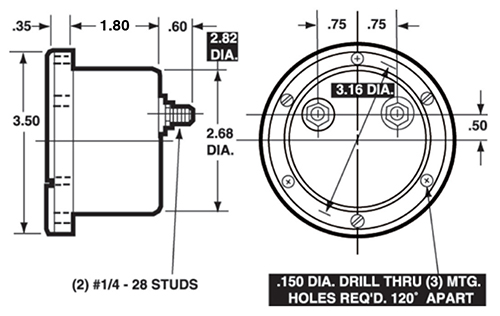

Dimension

3-1/2” Models 2543, 2523 Round Style

General Specifications
Accuracy	AC ±3% full scale (F.S.) DC ±2% full scale (F.S.)
Movement	AC Rectifier type DC Self-shielded, permanent magnet
Suspension	Pivot and jewel
Tracking	±3%
Shielding	Calibration is unaffected by magnetic panel mounting
Response Time	1.5 seconds maximum
Overload (1 sec.)	10 times F.S.
Overload (Continous)	1.5 times F.S.
Repeatability	2%
Dial	Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
Case	Models 2523, 2524, 2543 & 2544: Metal
Resistance	±15% of meter impedance
Operating Temperature	-4°F to +149°F (-20°C to +65°C)
Pointer	Red, knife-edge
Scale Length	Models 2123L, 2523, 2543 & 2143L 4.77" (121.16mm)

Tech Specs

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Circular
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current
Size-Circular	2.82 IN
Size-Face Width	3 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
