Simpson 15125 Panel Meter DES 554MD--- 0-25 ACA 4.5

Name: Simpson 15125 Panel Meter DES 554MD--- 0-25 ACA 4.5
Brand: Simpson
SKU: Simpson15125
Price: 129.79 USD
Availability: InStock

0 reviews | Catalog: 15125 | Model: Simpson 15125

Simpson Designer Style Analog Panel Meter

Compare

554MD--- 0-25 ACA 4.5 DES

554MD--- 0-25 ACA 4.5 DES
Clean, uncluttered design offers maximum visibility in minimum required height
Glass window for optimum viewing
Rugged black plastic case
Red knife-edge pointer for precision readability

View Product Details

List Price: $152.70

Your Price: $129.79

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Recommended for you

Simpson 15125 Designer Style Analog Panel Meters

Clean, uncluttered design offers maximum visibility in minimum required height
554MD--- 0-25 ACA 4.5 DES
Glass window for optimum viewing
Rugged black plastic case
Red knife-edge pointer for precision readability

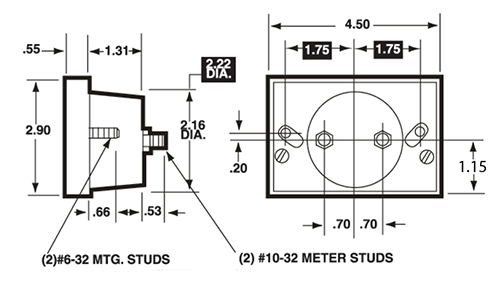

Dimension

4-1/2" Models 524, 524T, 554

General Specifications
Accuracy	± 2% F.S.
Movement	AC/Iron-vane, magnetically damped, DC Annular
Tracking	± 3%
Response Time	1.5 seconds maximum
Overload (1 sec.)	10 times F.S.
Overload (Continuous)	1.5 times F.S.
Repeatability	2% for standard meters, 0.5% for taut band meters
Dial	Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
Case	High Density black plastic
Resistance	± 15% of meter impedance
Operating Temperature	-4ºF to +149°F (-20°C to +65°C)
Pointer	Red, knife-edge
Scale Length	Model 524: 3.25” (82.5mm) Model 554: 2.84” (72.1mm)
Net Weight	Model 524: 10oz. (0.28kg) Model 554: 6oz. (0.17kg)

Tech Specs

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Current
Size-Circular	2.22 IN
Size-Face Width	4 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
