Simpson 10130 Panel Meter 5 WV 1349A----0-150 ACV-RE4.

Name: Simpson 10130 Panel Meter 5 WV 1349A----0-150 ACV-RE4.
Brand: Simpson
SKU: Simpson10130
Price: 169.69 USD
Availability: InStock

0 reviews | Catalog: 10130 | Model: Simpson 10130

Compare

1349A----0-150 ACV-RE4.5 WV

1349A----0-150 ACV-RE4.5 WV
UL Recognized
Clear acrylic window for wide viewing area
Rugged black plastic case
Black spade pointer for easy distant reading
Optional: Behind-panel mounting bezel kit

View Product Details

List Price: $199.64

Your Price: $169.69

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Simpson 10130 1349A----0-150 ACV-RE4.5 WV	Simpson 10100 1349A----0-10 ACV-RE4.5 WV	Simpson 10140 1349A----0-300 ACV-RE4.5 WV
Price
In Stock
Type (Panel Meter )	Analog	Analog	Analog
Style (Panel Meter)	Rectangular/Square	Rectangular/Square	Rectangular/Square
Number of Inputs (Panel Meters)	Single	Single	Single
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

General Specification
Accuracy	± 2% F.S. (Iron-Vane), ± 3 F.S. (Rectified)
Movement	Models 1247, 1347, 1349: Annular, rectifier
Tracking	± 3%
Shielding	Calibration is unaffected by magnetic panel mounting.
Response Time	1.5 seconds maximum
Overload (1 sec.)	10 times F.S.
Overload (Continuous)	1.5 times F.S.
Repeatability	2% AC Current, DC Process, 3% AC Voltage, DC Voltage, Wattmeters, 0.5% DC Current
Dial	Sharp clear scale.
Resistance	± 15% of meter impedance
Operating Temperature	- 4ºF to + 149ºF (- 20ºC to + 65ºC)
Case	High density black plastic
Pointer	All other models: Spade with black matte finish

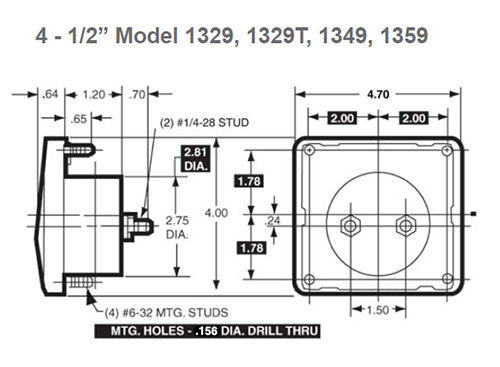

Scale Length	Model 1329, 1329T, 1349, 1359, 1379: 3.93” (100mm)
Net Weight	Model 1329, 1329T, 1349, 1377: 9 oz. (0.26 kg)

Tech Specs

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Rectangular/Square
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Voltage
Size-Circular	2.81 IN
Size-Face Width	4 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
