Simpson 09320 Panel Meter UL RND 155MD--- 0-250 ACV 2.5

Name: Simpson 09320 Panel Meter UL RND 155MD--- 0-250 ACV 2.5
Brand: Simpson
SKU: Simpson09320
Price: 114.88 USD
Availability: InStock

0 reviews | Catalog: 09320 | Model: Simpson 09320

Compare

155MD--- 0-250 ACV 2.5 UL RND

155MD--- 0-250 ACV 2.5 UL RND
UL Recognized
Glass Window for optimum viewing
Rugged black plastic case
Black spade-type pointer for easy distant reading

View Product Details

List Price: $135.15

Your Price: $114.88

Sign-in for EDU Pricing!

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Simpson 09320 155MD--- 0-250 ACV 2.5 UL RND	Simpson 09310 155MD--- 0-150 ACV 2.5 UL RND	Simpson 09340 155MD--- 0-500 ACV 2.5 UL RND	Simpson 09330 155MD--- 0-300 ACV 2.5 UL RND
Price
In Stock
Type (Panel Meter )	Analog	Analog	Analog	Analog
Style (Panel Meter)	Circular	Circular	Circular	Circular
Number of Inputs (Panel Meters)	Single	Single	Single	Single
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

General Specifications
Accuracy	± 2% F.S. (Iron-Vane), ±3 F.S. (Rectifier)
Frequency models	45-55Hz ±0.3Hz (120V-240V) 55-65Hz ±0.3Hz (120V-240V) 380-420Hz ±1.2Hz (120V-240V)
Wattmeters	+2% F.S.; Compensated Meters: +3% F.S.
Movement	Models 55, 155: Iron-vane, magnetically damped
Tracking	± 3%
Shielding	Calibration is unaffected by magnetic field or panel mounting
Response Time	1.5 seconds maximum
Overload (1 sec.)	10 times F.S.
Overload (Continuous)	1.5 times F.S.
Repeatability	2%
Dial	Sharp clear scale. Each dial arc is calibrated to track the specific type of movement used
Case	High density black plastic
Resistance	± 15%
Operating Temperature	- 4ºF to + 149ºF (- 20ºC to + 65ºC)
Pointer	All others Spade pointer with black matte finish
Scale Length	Model 155 & 185: 1.6” (40.6mm)
Net Weight	Models 55, 155 & 185: 5oz (0.14kg)

Tech Specs

Panel Meters/Panel Meters Template
Type (Panel Meter )	Analog
Style (Panel Meter)	Circular
Number of Inputs (Panel Meters)	Single
Mounting (Panel Meter)	Panel Mount
Input (Panel Meters)	Voltage

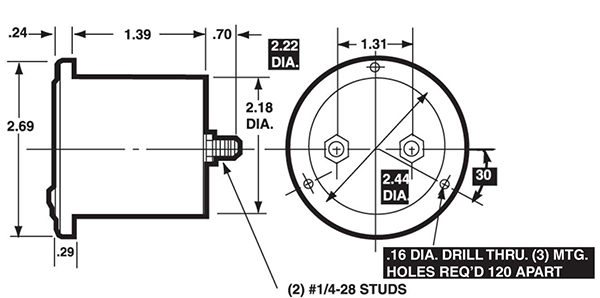

Size-Circular	2.22 IN
Size-Face Width	2 1/2 in
Process Output	No
Control / Alarm Setpoints	No
Water Proof	No
Splash Proof	No
Relay Output	No
Test Equipment General Attributes
Country of Origin	United States
