Siglent SSA5083A - Spectrum Analyzer (9 kHz - 13.6 GHz)

Name: Siglent SSA5083A - Spectrum Analyzer (9 kHz - 13.6 GHz)
Brand: Siglent
SKU: SiglentSSA5083A
Price: 18880.00 USD
Availability: InStock

0 reviews | Model: Siglent SSA5083A

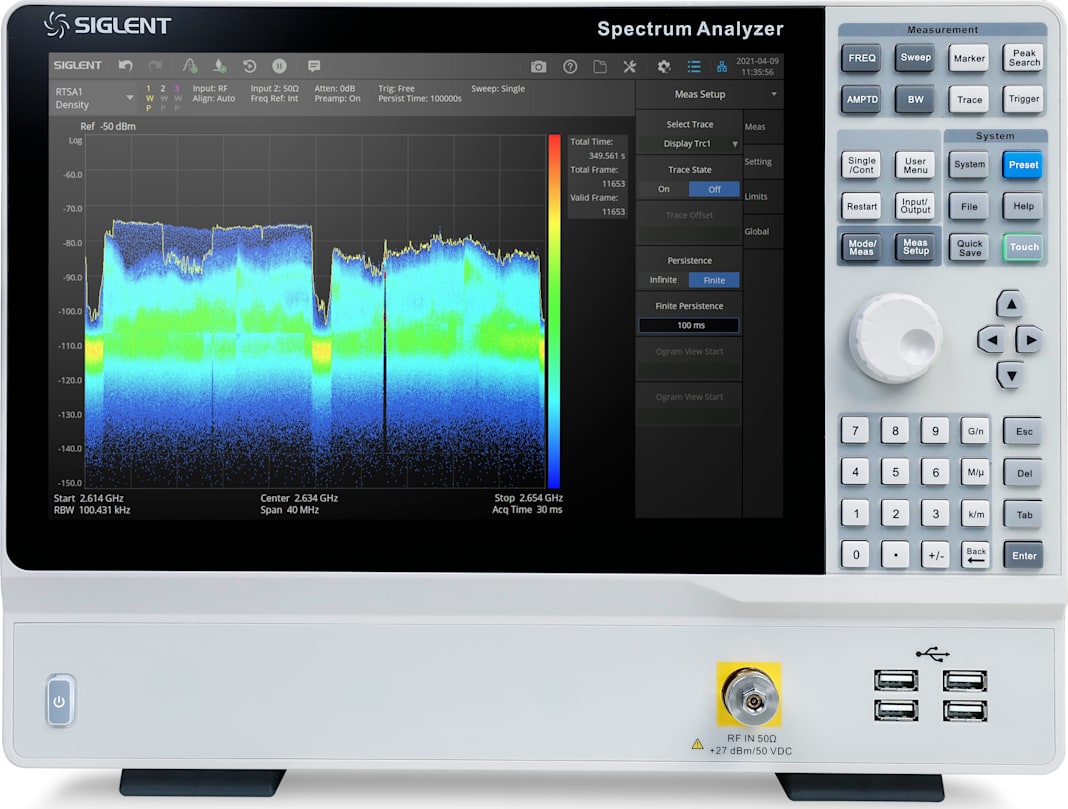

Siglent SSA5083A – Spectrum Analyzeryzer

Compare

9 kHz ~ 13.6 GHz; RBW 1 Hz ~ 10 MHz; DANL -165 dBm/Hz; SSB <-105 dBc/Hz; RTSA BW up to 40 MHz(option)

Frequency range: 9 kHz - 13.6 GHz (upgradeable to 26.5 GHz with option SSA5000-F5)
Resolution bandwidth (RBW): 1 Hz-10 MHz, in 1-3-10 sequence
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
Real-time spectrum analysis (option SSA5000-RTA1)
25/40 MHz real time spectrum analysis BW (40 MHz via option SSA5000-B40)
Channel power, ACPR, OBW, Harmonic, TOI measurements and more (option SSA5000-AMK)
12.1-inch multi-touch screen
Web Browser Remote Control on PC and Mobile Terminals and File Operation
OCXO option must be installed at factory (option 10M_OCXO_L)

View Product Details

Your Price: $18,880.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Siglent SSA5083A 9 kHz ~ 13.6 GHz; RBW 1 Hz ~ 10 MHz; DANL -165 dBm/Hz; SSB <-105 dBc/Hz; ...	Siglent SSA5085A 9 kHz ~ 26.5 GHz; RBW 1 Hz ~ 10 MHz; DANL -165 dBm/Hz; SSB <-105 dBc/Hz; ...
Price
In Stock
Bandwidth Range Max	13.6 GHz	26.5 GHz
Bandwidth Range Min	9 kHz	9 kHz
Noise Floor	-165 dB	-165 dB
Compare	Add to compare	Add to compare

Recommended for you

Siglent SSA5083A Accessories

Choose a Category

for the Siglent SSA5083A

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Siglent N-N-18L N(M)-N(M) cable, 18 GHz

Catalog: N-N-18L

(0)

In Stock!

Add to Cart

Siglent N-SMA-18L N(M)-SMA(M) cable, 18 GHz

Catalog: N-SMA-18L

(0)

In Stock!

Add to Cart

Siglent SMAF-SMA-26L 100cm Cable; SMA (Female) to SMA (Male); 26.5 GHz

Catalog: SMAF-SMA-26L

(0)

In Stock!

Add to Cart

Siglent SMA-SMA-18L 100cm Cable; SMA (Male) to SMA (Male); 18 GHz

Catalog: SMA-SMA-18L

(0)

In Stock!

Add to Cart

Siglent SMA-SMA-26L 100cm Cable; SMA (Male) to SMA (Male); 26.5 GHz

Catalog: SMA-SMA-26L

(0)

In Stock!

Add to Cart

Siglent CASE-S1 Hard transport case for SNA5000, SSA5000, SDS6000 series

Catalog: CASE-S1

(0)

In Stock!

Add to Cart

Siglent SRF5030T Three magnetic field near-field probes and one electric field near...

Catalog: SRF5030T

(1)

In Stock!

Add to Cart

Siglent 2.92F-2.92F-40A 2.92mm Female / 2.92mm Female Adapter; 40 GHz

Catalog: 2.92F-2.92F-40A

(0)

In Stock!

Add to Cart

Siglent USB-GPIB USB-GPIB Adapter, USB Device expanded into GPIB interface.

Catalog: USB-GPIB

(0)

In Stock!

Add to Cart

Siglent NSD28 Noise source driver(hardware), connect spectrum analyzer to noise source

Catalog: NSD28

(0)

In Stock!

Add to Cart

Siglent SSA5000-AMA Analog Modulation Analysis: AM, FM, PM (software license)

Catalog: SSA5000-AMA

(0)

In Stock!

Add to Cart

Siglent SSA5000-AMK Advanced Measurement Kit (software license)

Catalog: SSA5000-AMK

(0)

In Stock!

Add to Cart

Siglent SSA5000-B40 40 MHz analysis bandwidth (software license)

Catalog: SSA5000-B40

(0)

In Stock!

Add to Cart

Siglent SSA5000-BT Bluetooth signal measurement (software license)

Catalog: SSA5000-BT

(0)

In Stock!

Add to Cart

Siglent SSA5000-DMA Digital Modulation Analysis: ASK, FSK, MSK, PSK, QAM (software...

Catalog: SSA5000-DMA

(0)

In Stock!

Add to Cart

Siglent SSA5000-EMI EMI measurement mode (software license)

Catalog: SSA5000-EMI

(0)

In Stock!

Add to Cart

Siglent SSA5000-F5 SSA5083A upgrade to SSA5085A (software license)

Catalog: SSA5000-F5

(0)

In Stock!

Add to Cart

Siglent SSA5000-IFO IF Output (Software License)

Catalog: SSA5000-IFO

(0)

In Stock!

Add to Cart

Siglent SSA5000-IQA Real-Time Data Capture (Software License)

Catalog: SSA5000-IQA

(0)

In Stock!

Add to Cart

Siglent SSA5000-NF Noise figure measurement (software license)

Catalog: SSA5000-NF

(0)

In Stock!

Add to Cart

Siglent SSA5000-P3 Pre-amplifier, 9 kHz ~ 13.6 GHz (software license)

Catalog: SSA5000-P3

(0)

In Stock!

Add to Cart

Siglent SSA5000-PN Phase noise measurement (software license)

Catalog: SSA5000-PN

(0)

In Stock!

Add to Cart

Siglent SSA5000-PU Pulse signal measurement (software license)

Catalog: SSA5000-PU

(0)

In Stock!

Add to Cart

Siglent SSA5000-RTA1 Real-Time Spectrum Analysis (software license)

Catalog: SSA5000-RTA1

(0)

In Stock!

Add to Cart

Cal Test CT4040 Spectrum Analyzer Accessory Kit

Catalog: CT4040

(6)

In Stock!

Add to Cart

Siglent UKitSSA3X Utility Kit: N (M) -SMA (M) cable, N (M) -N (M) cable, N (M) -BNC...

Catalog: UKitSSA3X

(0)

In Stock!

Add to Cart

Siglent SSA5083A

Frequency range: 9 kHz - 13.6 GHz (upgradeable to 26.5 GHz with option SSA5000-F5)
Resolution bandwidth (RBW): 1 Hz-10 MHz, in 1-3-10 sequence
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
Real-time spectrum analysis (option SSA5000-RTA1)

Spectrum Analyzer (9 kHz - 13.6 GHz)

SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensional data displays, as well as advanced triggering to solve modern RF spectrum challenges, including channel power measurement, hopping frequency, conflict channel, and spectrum interference.

Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.

Real time analysis mode (option SSA5000-RTA1)

The SSA5000A series offers real-time spectrum analysis with option SSA5000-RTA1. 25 MHz real-time analysis bandwidth is standard but can be expanded to 40 MHz with option SSA5000A-B40.

Modulation analysis

The SSA5000A also offers optional analog and digital modulation analysis.

SSA5000-AMA: Analog modulation analysis: AM, FM, PM
SSA5000-DMA: Digital modulation analysis: ASK, FSK, MSK, PSK, QAM

OCXO option

An OCXO reference clock can be added with option 10M_OCXO_L. Please note, this option must be installed at the factory.

The OCXO reference clock source provides a better temperature coefficient and clock accuracy and provides a more stable reference clock.

	Standard	OCXO
Internal calibration accuracy (20-30°C)	< 1ppm	< 0.1ppm
Temperature stability	< 1ppm	< 1ppb
Frequency aging rate	< 0.5ppm/first year	< 50 ppb/year
	3.0ppm/20 years

Front panel

1. 12.1 inch multi touch screen 4. USB Host

2. Power switch 5. RF input (2.92mm male, compatible with 2.92mm/3.5mm/SMA connector mechanically)

3. Function keys

Rear panel

1. Handle 8. OCXO (option 10M_OCXO_L)

2. Safety lock hole 9. Ref In (10 MHz)

3. GND terminal 10. Ref Out (10 MHz)

4. LAN 11. Trig Out

5. USB Device 12. Trig In

6. HDMI 13. AC connection

7. Audio

Tech Specs

Spectrum Analyzers/Spectrum Analyzers Template
Bandwidth Range Max	13.6 GHz
Bandwidth Range Min	9 kHz
Noise Floor	-165 dB
Tracking Generator	No
Type(Spectrum Analyzers)	Benchtop
Channel Power Measurement	Yes
Auto tuning	Yes
Marker Measurement	Yes
Preamplifier	Yes
AM/FM Demodulation	Yes
Power Meter	Yes
Test Equipment General Attributes
Safety Approval	CE, RoHS
Product Weight	16.3 LBS
Product Height	11.2 IN
Product Length	5 IN
Product Width	15 IN
Country of Origin	China
