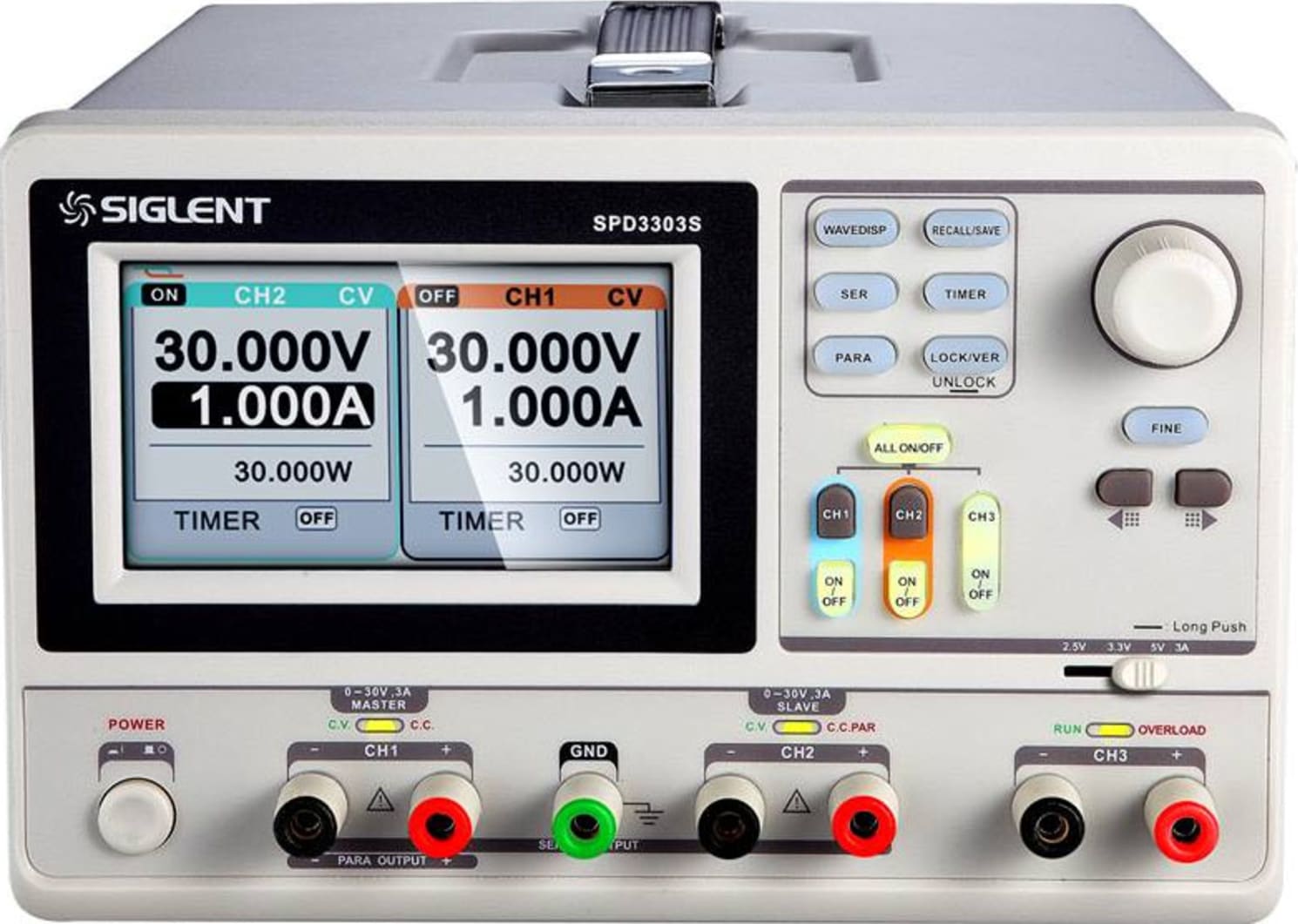

Siglent SPD3303S DC Power Supply
This DC power supply allows users to programme the exact parameters they need and features multiple channels with varying voltage/current ranges and maximum output power of 195W. The minimum voltage of this product is 1mV, 1mA.
One of the main benefits of this device is the inclusion of the extremely high quality colour LCD screen that’s integrated directly into the device. This enables users to easily gain extremely high quality images and parameters can be adjusted with ease using the dials and buttons to the right of the screen. The screen is 4.3 inches in size, and displays data as a high quality 480 x 272 pixel image.
The SPD3303S also features separate control and independent triple outputs: 30V/3A*2, 2.5V/3.3V/5V/3A*1, total 195W power. It also includes three output modes: independent, series and parallel connect.
SPD3000 series programmable linear DC power supply is compatible with 110V, 220V standard power networks, with widely network adaptability. It uses microprocessor controller, easily and exactly set and display output. Simple and reliable man-machine interface, users can operate SPD3303 visually. Background communication and programming operation are possible through USB interface. Over current and over voltage protection ensure the safety.
High-resolution and high-precision output
The highest resolution of 1mV/1mA, Excellent setting and readback accuracy. Ensure accurate pure output .You can easily simulate the device accurate behavior under testing with small change in voltage or current. This is impossible for a low resolution power supply.
Series/parallel/independent mode function
Series and parallel function allows two chanels combined into one output with more power output ability , This extends the application range. Each of 3 chanels power can be on/off independently and also can be all-on/all -off.
Panel realize the timing output
Through the panel operation, 5 groups of timing Settings and output control can be realized, which provides users a simple power programming function. At the same time , cooperating with the PC software, it meets the most demand of communicating and controlling.
Intuitive interface
Large and high resolution LCD display,concise human machine interface,make the machine easily used
Application Field:
- Debugging in R&D
- Production Automatic Test
- Quality Control and Test
- Teaching Experiment
Timing Output Function by Panel
Through panel operation, users can realize 5 groups save/recall. Each group is independent, voltage and current can be set as required. Timer supports continuous output, each group10000S with simple programmable function works together with upper computer software perfectly.
Real-time Waveform Display
SPD 3000series programmable linear DC power supply is equipped with 4.3" 16M TFT screen with 480*272 pixel resolution. It can display the curve of voltage and current perfectly, output state is clear in a glance.
Humanization Save/Recall Interface
SPD 3000series programmable linear DC power supply supports local storage of 5 groups system specifications and data storage expansion.
At this interface, users can save/recall/delete data, easy recover needed state.
