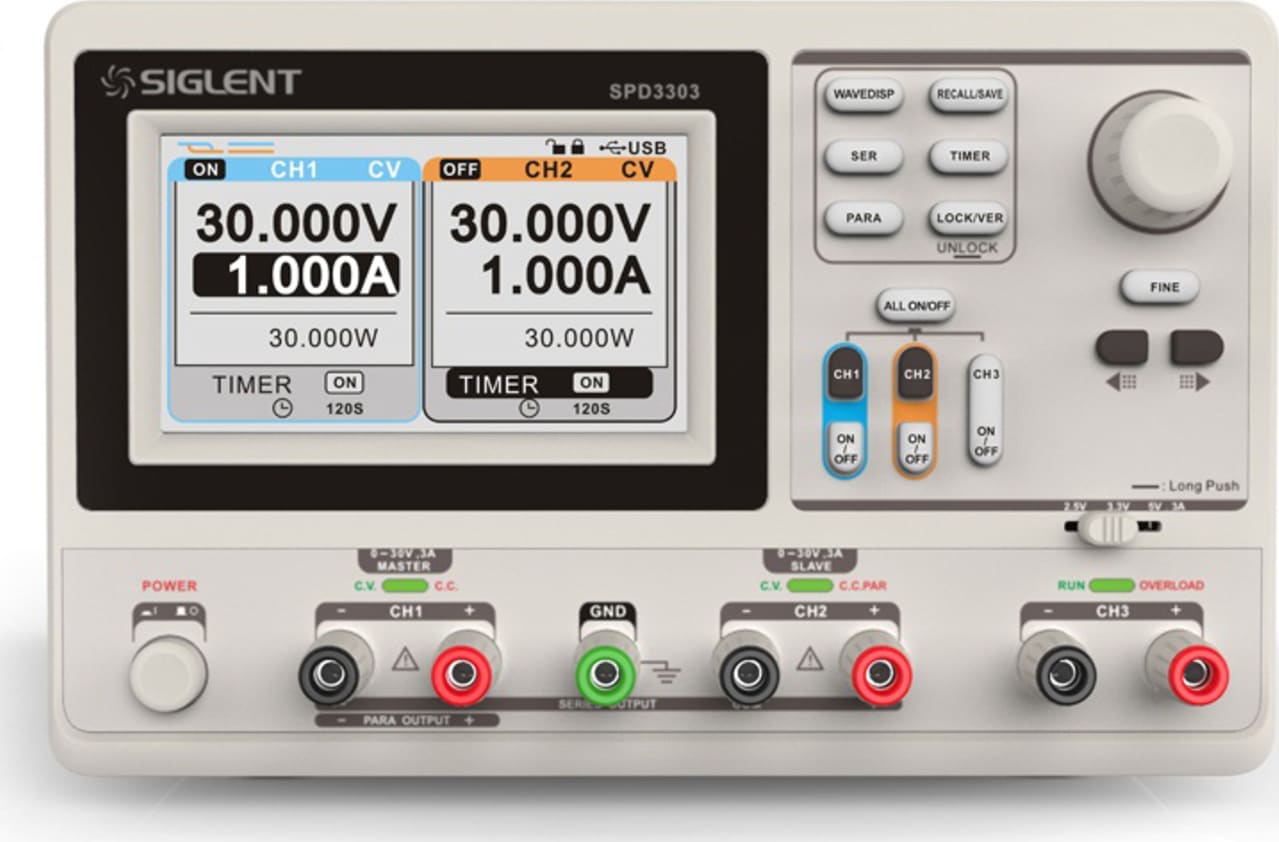

Siglent SPD3303D DC Power Supply (Max Output 195W)
This DC power supply is fully programmable, allowing users to easily choose the exact range they need. The product is ideally suited for R and D lab general purpose testing, teaching lab experiments, automotive electronic tests, production testing and quality assessment inspections.
The SPD3303D includes an integrated 4.3 truecolour LCD screen which is used to display test results. This product also includes 3 kinds of output mode (independent, series and parallel) and 3 independent controlled and isolated outputs: 30V/3A x 2, 2.5V, 3.3V, 5V/3A x 1 and total power of 195W.
This product has also been designed to meet the needs of different power grips and is compatible with 100V/120/220/230V systems. The device is also triple channel- allowing for different supplies to be outputted at the same time. Channel 1 and 2 are used for outputting DC voltage from 0-30V, and Channel 3 is used to output DC voltage at 2.5/3.4/5.0V. All three channels have DC current range of 0-3A.
SPD3000 series programmable linear DC power supply is compatible with 110V, 220V standard power networks, with widely network adaptability. It uses microprocessor controller, easily and exactly set and display output. Simple and reliable man-machine interface, users can operate SPD3303 visually. Background communication and programming operation are possible through USB interface. Over current and over voltage protection ensure the safety.
High-resolution and high-precision output
The highest resolution of 1mV/1mA, Excellent setting and readback accuracy. Ensure accurate pure output .You can easily simulate the device accurate behavior under testing with small change in voltage or current. This is impossible for a low resolution power supply.
Series/parallel/independent mode function
Series and parallel function allows two chanels combined into one output with more power output ability , This extends the application range. Each of 3 chanels power can be on/off independently and also can be all-on/all -off.
Panel realize the timing output
Through the panel operation, 5 groups of timing Settings and output control can be realized, which provides users a simple power programming function. At the same time , cooperating with the PC software, it meets the most demand of communicating and controlling.
Intuitive interface
Large and high resolution LCD display,concise human machine interface,make the machine easily used
Application Field:
- Debugging in R&D
- Production Automatic Test
- Quality Control and Test
- Teaching Experiment
Timing Output Function by Panel
Through panel operation, users can realize 5 groups save/recall. Each group is independent, voltage and current can be set as required. Timer supports continuous output, each group10000S with simple programmable function works together with upper computer software perfectly.
Real-time Waveform Display
SPD 3000series programmable linear DC power supply is equipped with 4.3" 16M TFT screen with 480*272 pixel resolution. It can display the curve of voltage and current perfectly, output state is clear in a glance.
Humanization Save/Recall Interface
SPD 3000series programmable linear DC power supply supports local storage of 5 groups system specifications and data storage expansion.
At this interface, users can save/recall/delete data, easy recover needed state.
