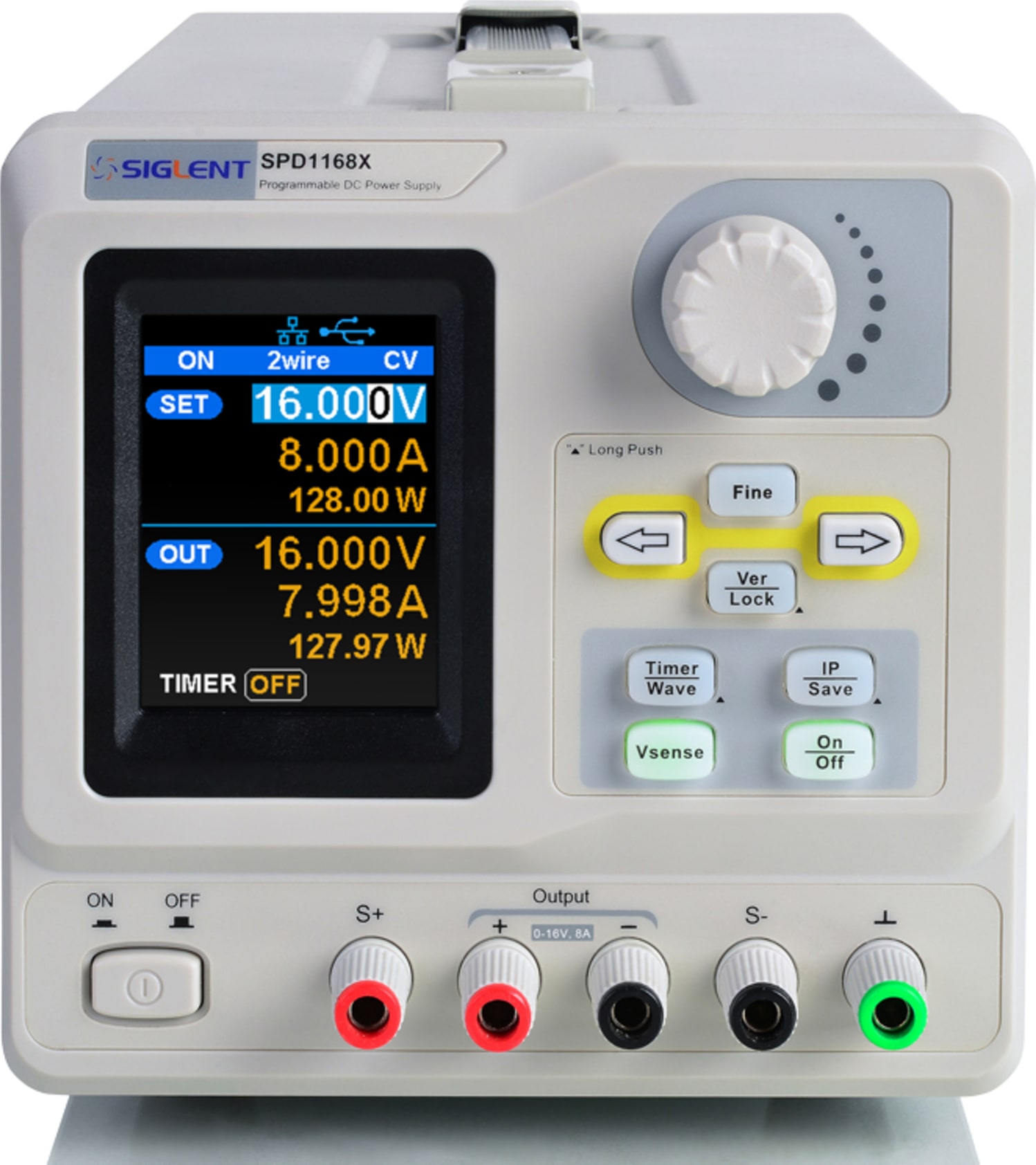

Siglent SPD1168X - Programmable Linear DC Power Supply (1 Channel, 16V/8A, up to 128W)

The SiglentSPD1000X Programmable Linear DC Power Supply has a 2.8 inch TFT-LCD display, features remote computer control capability, and real time wave display. This single output design is focused on delivering high performance and ease-of-use in a small package.

High-resolution and high-precision output

The SPD1000X power supply features a high measurement resolution of 1mV/1mA . This ensures accurate output even with very with small changes in voltage or current. This is impossible for a low resolution power supply.

4-wire SENSE compensation mode function

In the 4-wire SENSE compensation output mode: By using a separate measurement circuit, the supply can more accurately compensate for any voltage drops due to high resistance connections or long cables. Maximum compensation voltage is 1V.

SPD1000X power supplies feature a 0.01% load regulation and 0.2% line regulation. The examples below show the SPD1168X on the left, and the SPD1305X on the right.

Low ripple and noise

Fast transient response time

Panel displays the timing output

Real time wave display

Panel timing output

Save/Recall setting parameters

SPD1000X programmable power supply can save or recall 5 groups of setting parameters in internal storage. You can easily recall the settings you need.

Internal Storage

PC Timer
