Siglent SIG-STB Demo Board

Name: Siglent SIG-STB Demo Board
Brand: Siglent
SKU: SiglentSIG-STB
Price: 79.00 USD
Availability: InStock

0 reviews | Model: Siglent SIG-STB

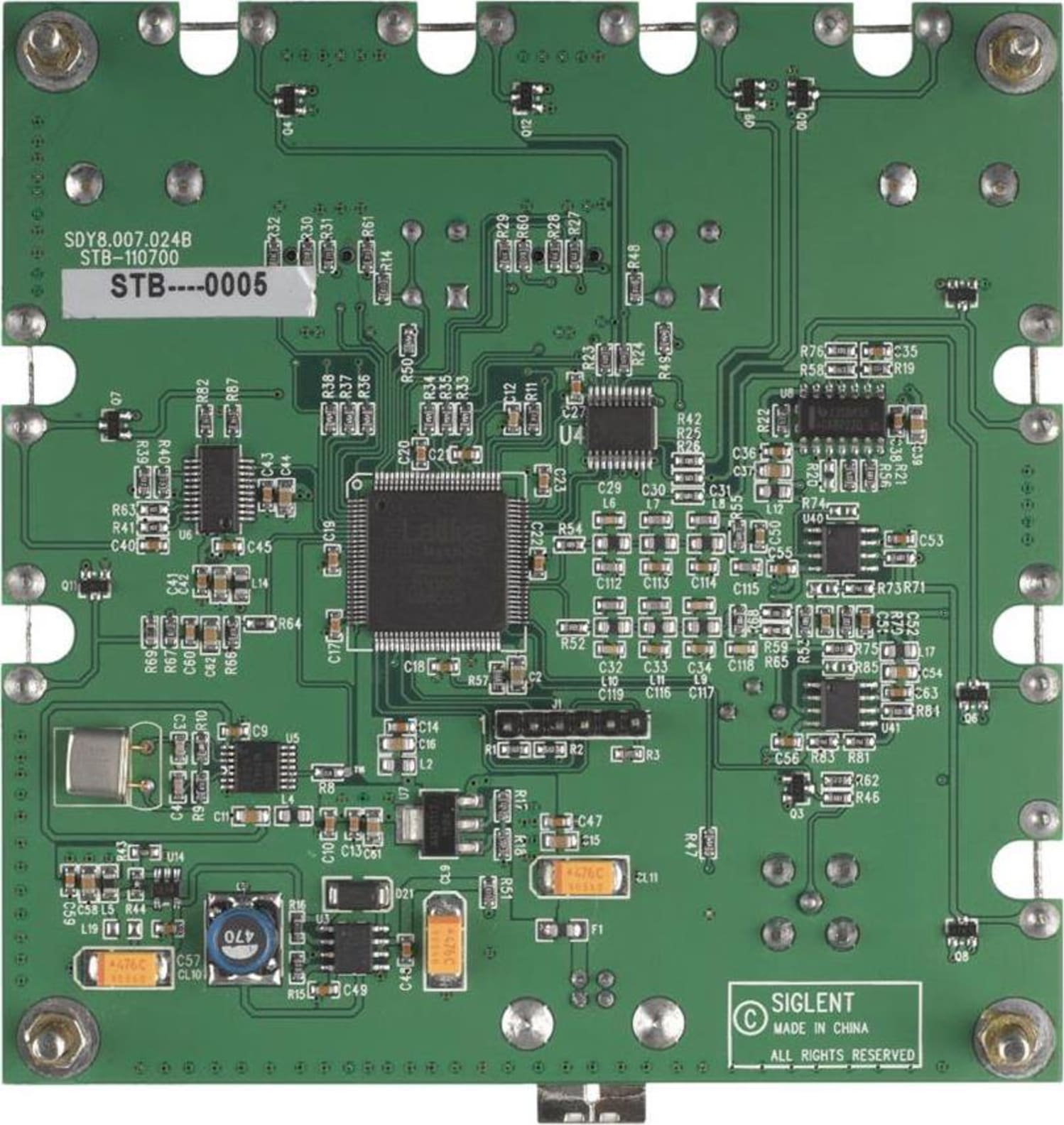

Siglent SIG-STB Demo board (demonstrate oscilloscope operation)

Compare

Demo board to teach and demonstrate oscilloscope operation.

25MHz sine wave, 100KHz square wave
10MHz CLK signal
10KHz square wave + narrow pulses mixed signal
BURST signal, the number of adjustable 1,10,100
Fast along the signal, 1MHz, 10Hz, single shot three modes adjustable
OFFSET signal square wave output + DC offset
AM modulated signal output, the user can freely set the modulation depth

View Product Details

List Price: $79.00

In Stock:

View Payment Options

Recommended for you

Siglent SIG-STB Demo Board to Teach and Demonstrate Oscilloscope Operation

STB demo board is mainly to assist teaching demonstration oscilloscope. STB board can output square wave, sine, random code, pulses, burst, fast along the signal and AM signals 10 kinds of typical signals. With experimental guide book, STB demo board help users have an intuitive understanding of the leval adjustment system, vertical adjustment system and the trigger system of SDS1000 Series oscilloscope. Thus it helps users quickly master the use of a digital oscilloscope.

Specifications
Technical indicators
wave output	Sine wave	25MHz
	Square wave	100KHz
	CLK signal	10MHz
	Square wave + pulse	10KHz square wave+1us pulse width
	BURST	Optional 1、10、100 times
	Fast along the signal	1MHz、10Hz、siglent shot（single pulse）
	OFFSET	1.2V DC bias+1MHz/300mVpp square wave signal
	AM signal	Fundamental cycle 40ns, modulation cycle 400ns, modulation depth adjustable
Interface	USB-device, Pass / Fail interface, nine signal terminals, two ground terminals
Dimensions	108mm×105mm×20mm(L×W×H)
Weight	200g
