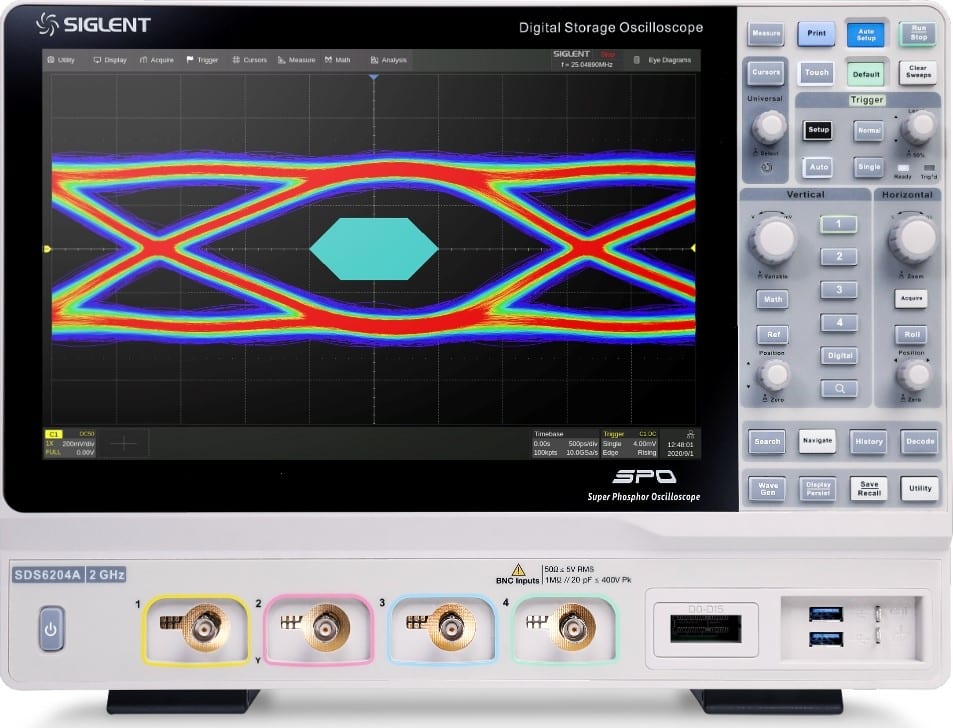

| Model |
SDS6054A |
| Analog channels |
4 + EXT |
| Bandwidth |
500 MHz |
| Sample rate (Max.) |
5 GSa/s (10 GSa/s ESR) @ each channel |
| Memory depth (Max.) |
500 Mpts/ch (single-channel
250 Mpts/ch (dual-channel)
125 Mpts/ch (3 or 4 channels) |
| Waveform capture rate (Max.) |
Normal mode：170,000 wfm/s;
Sequence mode：750,000 wfm/s |
| Vertical resolution |
8-bit, up to 16-bit in Hi-Res mode |
| Trigger type |
Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial |
| Serial trigger and decode |
Standard: I2C, SPI, UART, CAN, LIN
Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only) |
| Measurement |
50+ parameters, statistics, histogram, trend, and track supported |
| Math |
4 traces
8 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold. Supports formula editor |
| Data analysis |
Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis, Eye/Jitter Analysis |
| Digital channel (optional) |
16-channel; maximum sample rate up to 1 GSa/s; record length up to 50 Mpts |
| Waveform generator (optional) |
Single-channel external USB isolated waveform generator, frequency up to 25 MHz, 125 MSa/s sample rate, 16 kpts waveform memory |
| I/O |
USB 3.0 Host x2，USB 2.0 Host x2，USB 2.0 Device, LAN, micro SD card, HDMI, External trigger, Auxiliary output (TRIG OUT，PASS/FAIL） |
| Probe (Standard) |
SP3050A, 500 MHz, 1 probe supplied for each channel |
| Display |
12.1 TFT-LCD with capacitive touch screen (1280*800) |
