| Model |

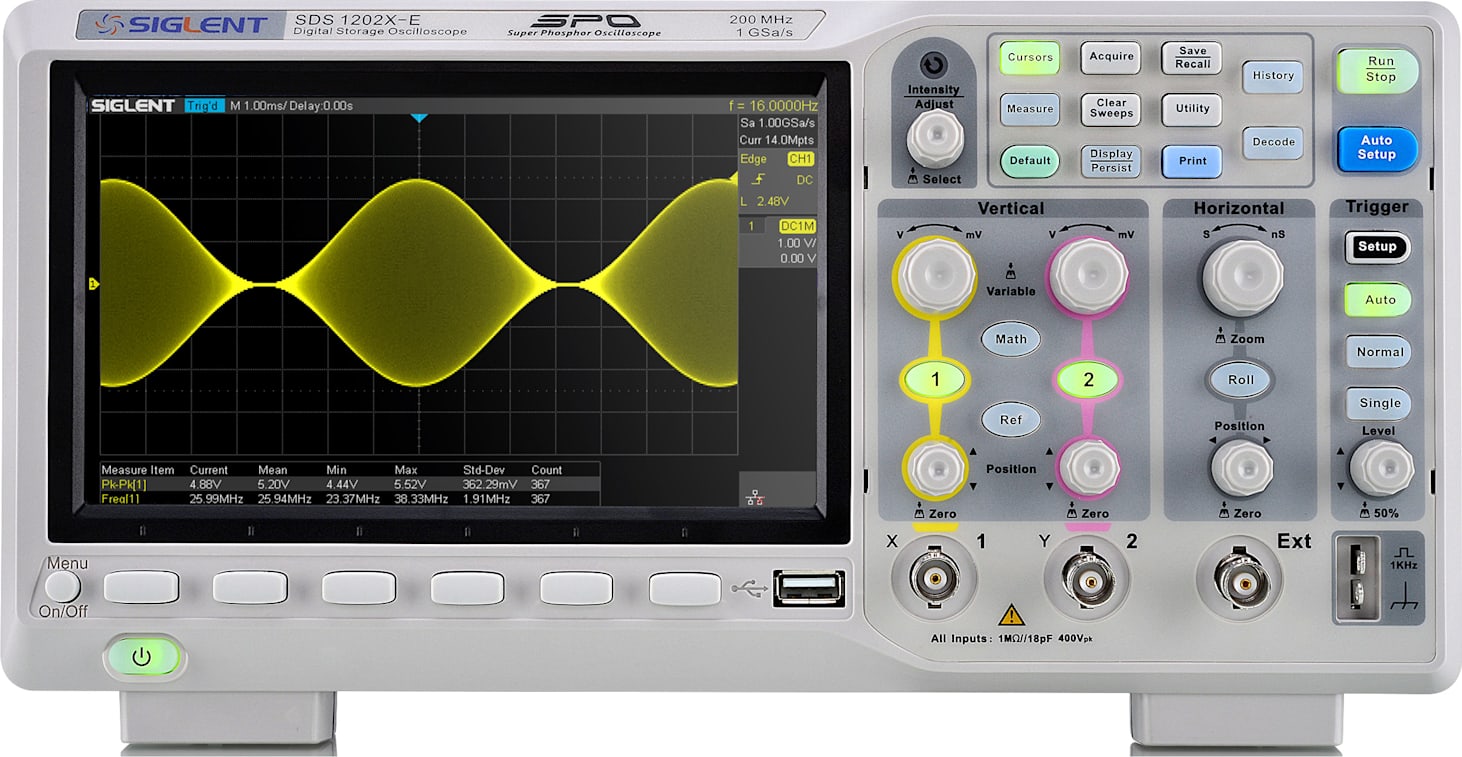

SDS1202X-E |
| Bandwidth |
200 MHz |
| Sampling Rate (Max.) |
Two channel series have a single 1 GSa/s ADC, four channel series have two 1 GSa/s ADCs. When all channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel per pair is active, that channel has sample rate of 1 GSa/s |
| Channels |
2+EXT (two channel series) |
| Memory Depth (Max.) |
7 Mpts/CH (not interleave mode);
14 Mpts/CH (interleave mode) |
| Waveform Capture Rate (Max.) |
100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) |
| Trigger Type |
Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video |
| Serial Trigger and decoder (Standard) |
IIC, SPI, UART, CAN, LIN |
| Probe (Std) |
2 pcs passive probe PP215 |
| Display |
7 inch TFT -LCD (800x480) |
| Weight |
Two channel series: Without package 2.5 kg; With package 3.5 kg |
| Acquire System |
| Sampling Rate |
1 GSa/s (single channel/pair), 500 MSa/s (two channels/pair) |
| Memory Depth |
Max 14 Mpts/Ch (single channel/pair), 7 Mpts/Ch (two channels/pair) |
| Peak Detect |
4 ns (Two channel series) |
| Average |
Averages:4, 16, 32, 64, 128, 256, 512, 1024 |
| Eres |
Enhance bits:0.5, 1.5, 2, 2.5, 3 |
| Waveform interpolation |
Sin(x)/x, Linear |
| Input |
| Channels |
2+EXT (Two channel series) |
| Coupling |
DC, AC, GND |
| Impedance |
DC: (1 MΩ±2%) || (15 pF ±2 pF) (Four channel series)
DC: (1 MΩ±2%) || (18 pF ±2 pF) (Two channel series) |
| Max.Input voltage |
1 MΩ: ≤400 Vpk(DC + Peak AC <=10 kHz) |
| CH to CH Isolation |
DC-Max BW: >40 dB |
| Probe attenuation |
0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X……1000X, 2000X, 5000X, 10000X |
| Vertical System |
| Bandwidth (-3 dB) |
200 MHz |
| Vertical Resolution |
8-bit |
| Vertical Scale (Probe 1X) |
500 μV/div - 10 V/div (1-2-5 sequence ) |
| Offset Range (Probe 1X) |
500uV~118mV: ±2V
120mV~1.18V: ±20V
1.2V~10V: ±200V |
| Bandwidth Limit |
20 MHz ±40% |
| Bandwidth Flatness |
DC- 10% (BW): ± 1 dB
10%- 50% (BW): ± 2 dB
50%- 100% (BW): + 2 dB/-3 dB |
| Low Frequency Response (AC -3 dB) |
≤2 Hz (at input BNC) |
| Noise |
ST-DEV ≤0.5 division (<1 mV/div)
ST-DEV ≤0.2 division (<2 mV/div)
ST-DEV ≤0.1 division (≥2 mV/div) |
| SFDR including harmonics |
≥35 dB |
| DC Gain Accuracy |
≤±3.0%: 5 mV/div-10 V/div
≤±4.0%: ≤2 mV/div |
| Offset Accuracy |
±(1%* Offset+1.5%*8*div+2 mV): ≥2 mV/div
±(1%* Offset+1.5%*8*div+500 uV): ≤1 mv/div |
| Risetime |
Typical 1.8 ns |
| Overshoot (500 ps Pulse) |
<10% |
| Horizontal System |
| Timebase Scale |
1.0 ns/div-100 s/div |
| Channel Skew |
<100 ps |
| Waveform Capture Rate |
Up to 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode) |
| Intensity grading |
256 Levels |
| Display Format |
Y-T, X-Y, Roll |
| Timebase Accuracy |
±25 ppm |
| Roll Mode |
50 ms/div-100 s/div (1-2-5 sequence) |
