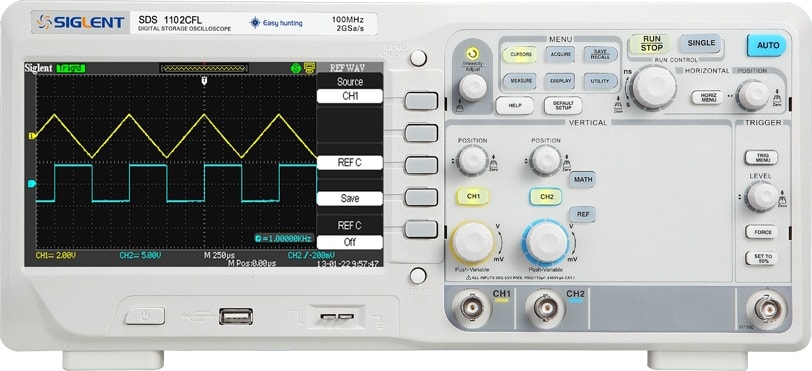

| Bandwidth |
100MHz |
| Channels |
2CH+1EXT |
| Real time sampling rate |
1GSa/s(each channel), 2GSa/s(half channel) |
| Equivalent sampling rate |
50GSa/s |
| Memory depth |
12K(each channel), 24k(half channel) |
| Rise time |
< 3.5ns |
| Input impedance |
1MΩ‖13pF |
| Time base range |
2.5ns/div-50s/div
Scan: 100ms-50s/div |
| Vertical sensitivity |
2mV - 5V/div |
| Vertical resolution |
8bit |
| Trigger source |
CH1, CH2, CH3, CH4, Ext, Ext/5, AC Line |
| Trigger types |
Edge, Pulse, Video, Slope, Alternative |
| Math Operation |
+, -, ×, ÷, FFT |
| Digital filter |
High pass, Low pass, Band pass, Band Stop |
| Max input voltage |
±400V(DC+ACPk-Pk), CAT I, CAT II |
| Internal storage |
2/4 groups of reference waveform, 20 groups of settings, 20 groups of waveforms |
| External storage |
Bitmap save, CSV save, Waveform save, Setting save |
| Language |
English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic |
| Interface |
Double USB Host, USB Device, LAN, Pass/Fail out |
| Display |
7’’color TFT-LCD |
| Power |
AC 100-240V, 45Hz-440Hz, 50VA Max |
| Dimension |
length 358mm x Width 156mm x Height 118mm |
| Weight |
4.3kg |
| PC software |
Can through the computer remote control oscilloscope, extraction waveform analysis data |
| Remark |
With original source seamless connection, form signal collection, produce integration system |
