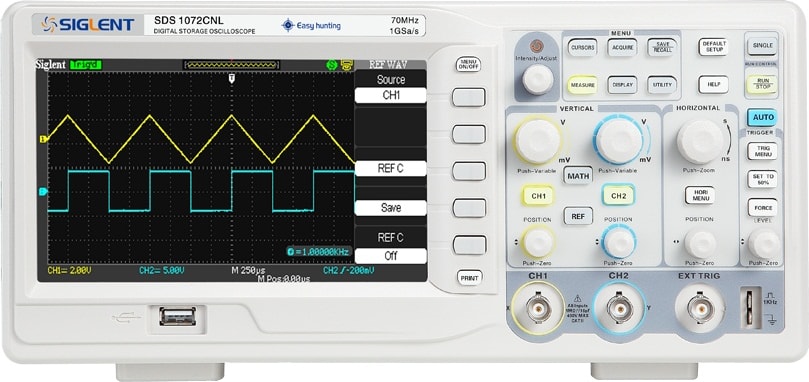

| Bandwidth |
70MHz |
| Channels |
2CH+1EXT |
| Real time sampling rate |
1GSa/s |
| Equivalent sampling rate |
50GSa/s |
| Memory depth |
40kpts |
| Rise time |
< 5ns |
| Input impedance |
1MΩ‖17pF |
| Time base range |
5.0ns/div-50s/div
Scan: 100ms-50s/div |
| Vertical sensitivity |
2mV-10V/div |
| Vertical resolution |
8bit |
| Trigger source |
CH1, CH2, Ext, Ext/5, AC Line |
| Trigger types |
Edge, Pulse, Video, Slope, Alternative |
| Math Operation |
+, -, ×, ÷, FFT |
| Digital filter |
High pass, Low pass, Band pass, Band Stop |
| Max input voltage |
±400V(DC+AC Pk-Pk), CAT I, CAT II |
| Internal storage |
2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms |
| External storage |
Bitmap save, CSV save, Waveform save, Setting save |
| Language |
English, French, German, Russian, Spanish, Simplified Chinese, TraditionalChinese, Portuguese, Japanese, Korean, Italian, Arabic |
| Interface |
USB Host, USB Device, RS-232, Pass/Fail out |
| Display |
7 inches(178mm) color TFT(480*234) LCD |
| Power |
AC 100-240V, 45Hz-440Hz, 50VA Max |
| Dimension |
323.1mm length x 135.6mm width x 157mm height |
| Weight |
2.5kg |
| PC software |
Can through the computer remote control oscilloscope, extraction waveform analysis data |
| Remark |
With original source seamless connection, form signal collection, produce integration system |
