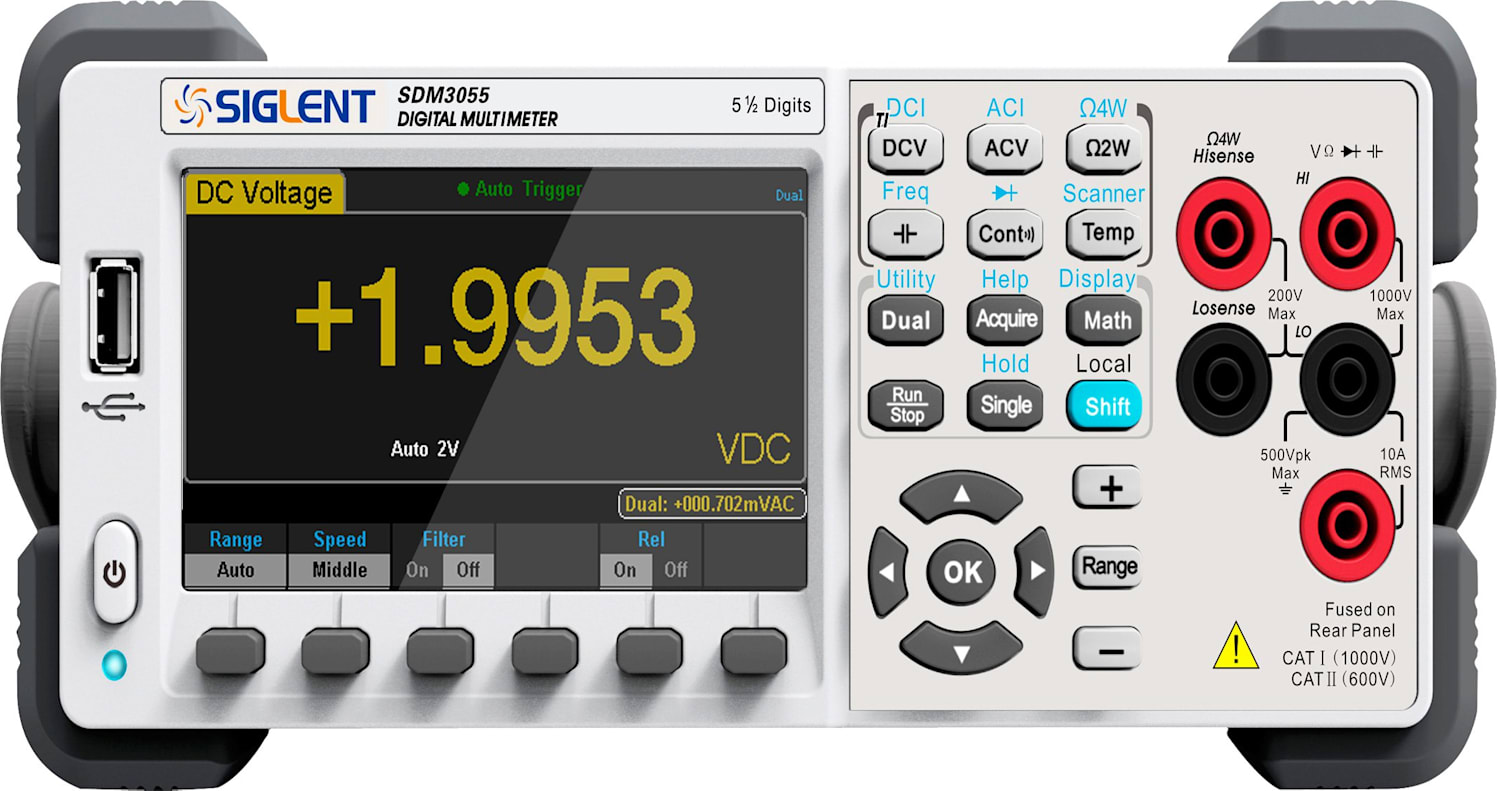

Siglent SDM3055A 5 ½ Benchtop Digital Multimeters with USB, LAN, and GPIB

Name: Siglent SDM3055A 5 ½ Benchtop Digital Multimeters with USB, LAN, and GPIB
Brand: Siglent
SKU: SiglentSDM3055A
Price: 629.00 USD
Availability: InStock

0 reviews | Model: Siglent SDM3055A

Compare

5 1/2 digit; 150rdgs / s measurement speed; 4.3 inch (480 272) true color TFT-LCD screen display; True RMS AC voltage and AC current measurements; supports GPIB interface

SDM3055A 5 1/2 Benchtop Digital Multimeters with USB, LAN, and GPIB.
4.3 inches true color TFT-LCD display
Up to150rdgs / s measurement speed
1Gb NAND Flash, supports U disk expansion
Built-in thermocouple cold-junction compensation
Configuration Interface: USB Host & Device, LAN, GPIB
Supports remote control commands provided PC software
Dual display, Chinese and English menu
Support VXI11, USBTMC

View Product Details

List Price: $629.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

DMM Probe Kits

for the Siglent SDM3055A

Cal Test CT4038 DMM Accessory Kit - Get the most out of your meter with advanced test...

Catalog: CT4038

(13)

In Stock!

Add to Cart

Cal Test CT4039 DMM Accessory Kit - Set pf Leads, removable tips, and deluxe alligator...

Catalog: CT4039

(4)

In Stock!

Add to Cart

Siglent SDM3055A 5 ½ Benchtop Digital Multimeters with USB, LAN, and GPIB.

The new Siglent SDS3055/3055A is a new 5 ½ digit dual-display digital multimeter and features many math and statistical functions It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT-LCD screen, and is designed for users who need to include high performance, multiple functions, and automatic measurements, is a high-performance desktop multimeter.

Features

Up to 150rdgs / s measurement speed
1Gb Nand Flash total capacity, mass storage settings and data files, supports expandable storage to external U disk
Built-in thermocouple cold junction compensation supports the dual-display operation
Chinese and English menus
Built-in help system to facilitate information acquisition and document management
Extensive math functions which include measuring the signal’s minimum/maximum/average/standard deviation. Also, readings can be displayed in dBm, dB, Pass / Fail, relative value, histograms, trend curves, bar graphs, etc
Supports remote command and control, compatible with the mainstream multimeter command scripts and comes standard with PC software EASYSDM
4.3 inch (480 * 272) true color TFT-LCD large-screen display and comes configured for variety communication interfaces with USB Device, USB Host, LAN, GPIB (SDM3055A only) ports.

Application

Research and education
Testing and maintenance, measuring
Signal measurement and analysis statistics
Electronic products, manufacturing
Electrical, electronic, automated testing, etc.

Model	SDM3055/3055A
Measuring Range
DCV	200mV～1000V
DCI	200uA～10A
OHM(R)	200～100M
ACV	200mV～750V
ACI	20mA～10A
CAP	2nF～10000uF
FREQ/PERI	1MHz
Accuracy
DCV	0.015+ 0.003
DCI	0.055+ 0.005
OHM(R)	0.020+ 0.003
ACV	0.2 + 0.05
ACI	0.50 + 0.10
CAP	1+0.5
FREQ/PERI	0.01+0.003
Interface
LAN	√
USB DEVICE	√
USB HOST	√
GPIB (for SDM3055A only)	√

Tech Specs

Multimeters Template
Style	Bench
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	750 V
Resolution AC Volts	1 uV (0.001 mV)
Maximum Voltage DC	1000 V
Resolution DC Volts	1 uV (0.001 mV)
Maximum Current AC	10 A
Minimum Current AC	100 nA (0.00010 mA)
Resolution AC Current	100 nA (0.00010 mA)
Maximum Current DC	10 A
Minimum Current DC	1 nA (0.000001 mA)
Resolution DC Current	1 nA (0.000001 mA)
Basic Accuracy V DC	0.015%
# Digit Display	5.5
Counts	239999 .
Backlight	Yes
Manual/Autoranging	Both
Decibels	Yes
Resistance	Yes
Frequency	Yes
Capacitance	Yes Capacitance 2 nF - 1000 uF
Temperature	Yes
Diode Testing	Yes Diode Testing Fixed at 2 V.
CAT Rating	II
CAT Voltage	1,000 V
Intrinsically Safe	No
Peak Hold	Yes
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	Yes
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	Yes Low-Pass Filter AC Filter function
Duty Cycle %	Wave crest factor: 1-2: (Error is 0.05% of range) Wave crest factor: 2-3: (Error is 0.2% of range)
Test Equipment General Attributes
Unique Features	Min/Max/Average/Standard Deviation. dB/dBm, Relative measurements, histograms, Pass/Fail, Trending, Bar Chart, Built-in cold junction for thermocouple temperature testing. Includes SIGLENT EasySDM computer software. USB Device/Host, LAN, GPIB
Warranty	3 YEARS
Warranty Details	USA service center in Solon, OH.
Safety Approval	CE
Interfaces I/O	GPIB, LAN / Ethernet, USB Host, USB
Storage	Compact Flash
Product Weight	3.33 KILOS (7.34 LBS)
Product Height	105 MM (4.13 IN)
Product Length	282 MM (11.10 IN)
Product Width	260 MM (10.24 IN)
Data Logging	Yes
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China
