Siglent SDG5122 Function/ Arbitrary Waveform Generator 120MHz

Name: Siglent SDG5122 Function/ Arbitrary Waveform Generator 120MHz
Brand: Siglent
SKU: SiglentSDG5122
Price: 935.00 USD
Availability: InStock

0 reviews | Model: Siglent SDG5122

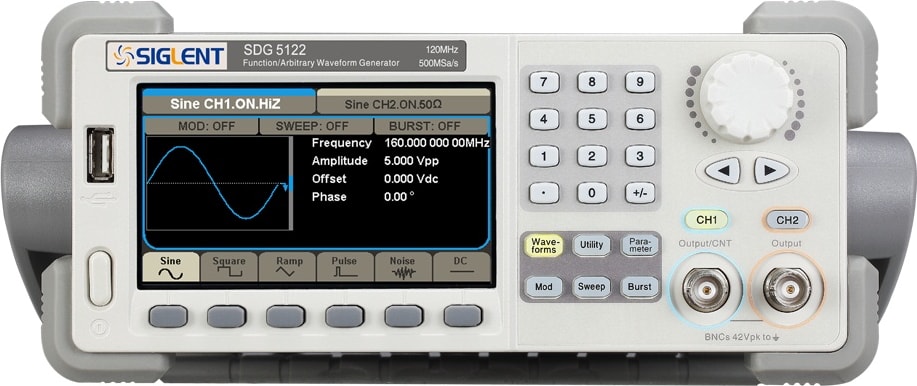

Siglent SDG5122 Digital Oscilloscope Front View

Images (4) | Videos (3)

Compare

120MHz; 2 channels; 500MSa/s; wave length: CH1 16Kpts, CH2 512Kpts; function/arbitrary waveform output; EasyPulse technology amplitude:2mV 20Vpp (high impedance); modulation function(AM,DSB-AM,FM,PM,ASK,FSK,PWM,Sweep,Burst);frequency counter function

DDS technology, dual-channel output, 500MSa/s sample rate, 14bit vertical resolution;
The 2ppm high-frequency stability, -116dBc,/Hz low phase noise(SSB) signal output;
Has the outstanding signal fidelity, 512k waveform length,can output complicated signals, can display signals user define more accurately;
Adopt unipue EasyPulse technology,can output the pulse signal which is low jitter and very small duty cycle, the edge and pulse width can adjust a wide rang and fine;
Complete set of modulation functions: AM, DSB-AM,FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst;
Built-in accurate frequency counter enables to measure ranges 100mHz-200MHz (single channel);
Standard interfaces: USB Device, USB Host
The TFT graphics of big screen,higher-resolution and high brightness, support the intuitionistic operations and setting parameters;
Supplied with powerful arbitrary editing software, remote control support.

Standard Accessories:

A User Manual
A Certification
A Guaranty Card
A CD (including EasyWave1.0 computer software system)
A Power Cord that fits the standard of destination country
A USB Cable
A Quick Start

Application:

IC test
Analog sensor
Simulated environment signals
Electrical circuit function test
Education and training

View Product Details

List Price: $935.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits
Function Generator / Frequency Counter Kits

for the Siglent SDG5122

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Catalog: CT4036

(8)

In Stock!

Add to Cart

Siglent SDG5122 Function/ Arbitrary Waveform Generator 120MHz

An improved version of the Siglent SDS5082, the SDG5122 features improved output frequency up to 120Mhz and has frequency output of 500MSa/s.

The device is a 2-channel function generator, which means it can output two individual waveforms at the same time. These waveforms are displayed on the device’s large LCD screen, allowing users to easily make adjustments and change waveform type, frequency and more as needed.

Siglent’s SDG5122 also includes DDS technology, 14 bit vertical resolution, 512k waveform length, can output complicated signals and contains a complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep and burst.

Signal Fidelity
SDG5000 series Function/Arbitrary Wavefom Generator has high stability time base and 512 kpts arbitrary waveforms storage length. It can output more complicated and more accurate arbitrary waveforms. Users can get higher fidelilty signal by the Function/Arbitrary Waveform Generator.

Edit arbitrary waveform
Enables edRion of 14-bit 512kpts arbitrary output waveforms, Arbitrary edlitg software EasyWave provides 9 standard waveforms: Sine. Square, Ramp, Pulse, ExRlse. EupPall Sinu Noise and DC. which meets all engineers' basic needs; In addition, I provides plenty of ways of manual drawing, point-to-point line drawing and arbitrary point drawing. It facilitates to create complex waveforms; Multi-file screen management helps users to edit multiple-waveform simultaneously. it provides 10 Storage In non-volatIle RAM. You can edit and store more wavefomts by EasyWave.

Outstanding performance
SDG5000 series Function/Arbitrary Waveform Generator Is a new family member of SIGLENT with friendly design: 4.3 itch TFT-LCD display; built-In ChltesetEnglIsh language; Online help function; Support USB and internal storage facilitate files management: Special connection terminal for grounding.

Considering the traditional technical defects, Siglent develops an innovative pulse generating algorithm, which is named as EasyPulse technology and is adopted in the new SDG5000 series. Basedupon the new technology, SDG5000 can produce pluses with quick rising/falling edge, low jitter, tiny duty cycle and is none- affecting by frequency variation. What’s more, the pulse edge orwidth can be fine adjusted in large range. As shown in the following functional block diagram:

Compared with the traditional technology, the innovative EasyPulse technology is featured with the following superior advantages:

Can output pulses with quick rising/falling edge (6ns) under very low frequency (less than 1Hz)
Pulse width can be minimized to 12ns under low frequency, with extremely low duty cycle
Parameters of pulse can be easily and immediately changed without updating any waveform data
Pulse Edge or width can be widely adjusted

Model	SDG5162	SDG5122	SDG5082
Max. output frequency	160MHz	120MHz	80MHz
Output channels	2
Sample rate	500 MSa/s
Arbitrary waveform length	CHI :16 kpts CH2:512 kpts
Frequency resolution	1 pHz
vertical resolution	14 bit
Waveform	Sine, Square, Ramp, Pulse, Gaussian Noise, DC, Built-in arbitrary waveforms
Modulation	AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Frequency counter	Frequency range:100mHz-200MHz
Standard interface	USB Host & Device
Optional interface	GPIB(IEEE-488)
Dimension	WidthxHeigthxDepth=261mmx105mmx344mm

Attention:
All these specifications apply to the SDG51300 Series Funclion/Arbitrary Waveform Generator unless otherwise explanation. To satisfy these specifications, the following conditions must be met first:

The instrument has been operating contiluously for more than 30 minutes within specified operating temperature range (18.C-28°G ).
The tentperature variation do. not exceed .
Un less otherwise stated:all specifications apply with a 501, resistive load and auto range ON.

Note: all specifications are guaranteed unless where noted 'typical'.
Typical:The characteristic performance:which 80% or more of manufactured instruments will meet:This data is not warranted,does not include measurement uncertainty:and is valid only at room temperature {approximately 23°C)

Frequency Specification
Model	SDG5162	SDG5122	SDG5082
Waveform	Sine,Square,Ramp,Triangle,Pulse,Noise,Arb
Sine	1µHz~160MHz	1µHz~120MHz	1µHz~80MHz
Square	1µHz~50MHz	1µHz~40MHz	1µHz~30MHz
Pulse	1µHz~40MHz	1µHz~30MHz	1µHz~20MHz
Ramp/Triangular	1µHz~4MHz	1µHz~3MHz	1µHz~2MHz
Gaussianwhite noise	100MHz(-3dB)
Arbitrary	1µHz~40MHz	1µHz~30MHz	1µHz~20MHz
Resolution	1µHz
Temperature coefficient	1 year,0°C~55°C,±2ppm

Sine Spectrum Purity
Harmonic Distortion	DC-1MHz	<-54dBc
	1MHz~10MHz	<-46dBc
	10MHz~100MHz	<-36dBc
	100MHz~160MHz	<-30dBc
Total harmonic waveform distortion		DC~20kHz,1Vpp<0.2%
Spurious signal (non-harmonic)		DC~1MHz<-70dBc
		1MHz~10MHz<-70dBc+6dB/spectrum phase
Phase noise		100kHz Offset,-116dBc/Hz(typical value)

Square Specification
Rise/Fall time(10%~90%)		<8ns
Overshoot		<3%(typical,1kHz,1Vpp)
Duty Cycle	1µHz~10MHz	20%~80%
	10MHz~40MHz	40%~60%
	40MHz~50MHz	50%
Asymmetric(50% Duty Cycle)		1% of period+5ns(typical,1kHz,1Vpp)
Jitter(cycle-to-cycle)		100ps(typical,rms)

Ramp/Triangle Specification
Linearity	<0.1% of Peak value output (typical,1kHz,1Vpp,100% symmetric)
Symmetry	0%~100%

Pulse Specification
Periods	1000000s,Max.25ns,Min.
Pulse width	12ns
Duty	0.0001%~99.9999%
Rise/Fall time(10%~90%)	6ns~6s,100ps resolution
Overshoot	<3%
Jitter(cycle-to-cycle)	<100ps(typical,rms)

Arbitrary Specification
Output	CH1	CH2
Waveform length	16k points	512k points
Vertical resolution	14 bit	14 bit
Sample rate	500MSa/S	500MSa/s
Min.Rise/Fall time	10ns(typical)	10ns(typical)
Jitter(cycle-to-cycle)	2ns(max)	2ns(max)

Output Specification
Output	CH1	CH2
Amplitude (into 50Ω)	1 mVpp~10 Vpp(=40MHz)	1 mVpp~10 Vpp(=40MHz)
	1 mVpp~5 Vpp(40MHz~100MHz)	1 mVpp~5 Vpp(40MHz~100MHz)
	1 mVpp~2.5 Vpp(100MHz~130MHz)	1 mVpp~2.5 Vpp(100MHz~130MHz)
	1 mVpp~1.5 Vpp(130MHz~160MHz)	1 mVpp~1.5 Vpp(130MHz~160MHz)
Vertical accuracy (100 kHz sine)	±(1%+1mVpp of setting value)	±(1%+1mVpp of setting value)
Amplitude flatness (coompare to 100kHz sine,1Vpp)	10MHz ±0.1dB	10MHz ±0.1dB
	60MHz ±0.2dB	60MHz ±0.2dB
	100MHz ±0.4dB	100MHz ±0.4dB
	160MHz ±0.8dB	160MHz ±0.8dB
Cross talk	<-80dB
Channel Delay	<1ns

DC Offset Specification
Output	CH1	CH2
Range(DC)	±5V(50O)	±5V(50O)
Range(DC)	±10V(high impedance)	±10V(high impedance)
Offset accuracy	±(l setting offset value l*1%+1mV)	±(l setting offset value l*1%+1mV)

Waveform Output
Impedance	50Ω(typical)
Protection	short-circuit protection
Isolation	Connector shells for channel output(s),Sync and Modulation input of BNC,isolated from BNC connector and chassis.Maximum allowable voltage on isolated connector shells is ±42Vpk.
AM / DSB-AM Modulation ( CH1/CH2 )
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary
Modulation depth	0%-120%
Modulation Frequency	1mHz-50kHz
FM Modulation ( CH1/CH2 )
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary
Modulation Frequency	1mHz-50kHz
FM Modulation ( CH1/CH2 )
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary
Phase Deviation	0-3600 ,0.1°Resolution
Modulation Frequency	1mHz-50kHz
FSK Modulation ( CH1/CH2 )
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	50% duty-cycle square waveform
Modulation Frequency	1mHz-1MHz
ASK Modulation ( CH1/CH2 )
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	50% duty-cycle square waveform
Modulation Frequency	1mHz-1MHz
PWM Modulation ( CH1/CH2 )
Carrier	Pulse
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Arbitrary(except DC)
Modulation Frequency	1mHz-50kHz
Sweep ( CH1/CH2 )
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Type	linear/logarithmic
Direct	Up/down
Sweep time	1 ms- 500 s±0.1%
Trigger source	Manual, external, internal
Burst ( CH1/CH2 )
Waveform	Sine, Square, Ramp, Pulse, Arbitrary(except DC)
Carrier Frequency	2mHz-100MHz
Type	Count(1 - 1,000,000 periods),infinite, Gated
Start/Stop phrase	00360
Internal period	1 ps- 1000 s± 1%
Trigger delay	232ns-34s
Gated source	External trigger
Trigger source	Manual, External or Internal
External modulation
Connector	Rear-panel BNC,isolated from chassis
Voltage level	±4.5Vpk= 100% modulation >5k0 input impedance
Note	The external input voltage can't be over ±5Vpk, otherwise instrument gets damaged.
Trigger Input
Connector	Rear-panel BNC,chassis-referenced
Input Level	TTL compatible
Slope	Up or down (optional)
Pulse width	>5± ns
Input impedance	>5kΩ,DC coupling
Reaction time	380ns(typical)
Trigger Output
Connector	Rear-panel BNC,chassis-referenced
Voltage level	TTL compatible
Pulse width	>60 ns(typical)
Output impedance	50Ωtypical)
Max Frequency	1 MHz
SYNC Output
Connector	Rear-panel BNC,isolated from chassis
Voltage level	TTL compatible
Pulse width	>50 ns(typical)
Output impedance	50Ω(typical)
Max Frequency	2 MHz
Frequency reference input
Connector	Rear-panel BNC,isolated from chassis and all connector.
Frequency range	10MHz±50Hz
Voltage level	2.3Vpp -3.3Vpp
Lock time	< 2 s
Input impedance	1KΩ AC-coupled
Frequency reference output
Connector	Rear-panel BNC,chassis-referenced
Frequency	10MHz
Voltage level	>1Vpp
Output impedance	50Ω AC-coupled

Frequency Counter
Measurement	Frequency, Period, Positive/negative pulse width, duty cycle
Frequency range	Single Channe1:100mHz-200MHz
Frequency resolution	6bit/s
Voltage range (non-modulated signal)
DC coupling	DC offset range	±1.5VDC
	100mHz-100MHz	50mVrms-±2.5V
	100MHz-200MHz	100mVrms-±2.5V
AC coupling	1Hz-200MHz	100mVrms-5Vpp
Pulse width and duty-cycle measurement	1Hz-10M Hz(50mVrms-5Vpp)
Input adjustment	Input impedance	IMΩ
	Coupling mode	AC,DC
	High-frequency rejection	ON/OFF
Trigger level range	-3V- 1.8V

General Specification
Display
Display type	4.3inch'TFT-LCD
Resolution	480(RGB)x272
Color depth	24bit
Contrast Ratio	500:1(typical)
Luminance	300cd/m2(typical)
Power
Voltage	100-240 VACRMS, 45-66Hz,CATII 100-127 VACRMS, 45-440Hz,CATII
Consumption	<30W
Fuse	1.25A,250V
Environment
Temperature	Operation:0°C-40°C Storage:-20°C-60°C
Humidity range	Below +35C :90% relative humidity +35r -+40 t :60% relative humidity
Altitude	Operation: below 3,000 meters Storage: below 15,000 meters
Others
Dimension	Width:261mm Height:105mm Depth:344mm
Weight	N.W: G.W:
IP protection	IP2X
Calibration Cycle	1year

Tech Specs

Generators / Counters/Function Generator Template
Channels	2
Frequency Maximum	120 MHz
Frequency Minimum	1 uHz (0.000001 Hz)
Functions	Burst, Noise, Other, Pulse, Ramp, Sine, Square, Sweep, Triangle
Max Amplitude Vpp @ 50 ohms	10 V
Arbitrary	Yes
Sample Rate	500 MSa/S
Screen Type	LCD, TFT
Color Screen	Yes
Digital Amplitude Resolution	14 Bits
Triggering	Yes
Counter that displays frequency on screen.	Yes
Modulation Types	AM, FM, FSK, PWM
Graphical Display	Yes
Memory	512 kB Memory CH1: 16Kpts CH2: 512Kpts
Direct Digital Synthesis (DDS)	Yes
PC Based	No
Test Equipment General Attributes
Unique Features	Seamlessly transfer files captured on Siglent oscilloscopes with a compact flash drive to the SDG5000 generators to recreate the waveform. "Easy-Pulse" technology provides wider range of pulse width times and faster rise/fall times at lower frequencies than other models. DSB-AM Modulation.
Warranty	3 YEARS
Warranty Details	Service center located in Cleveland, OH
Additional Info/Comments	"Easy-Pulse Technology"
Safety Approval	CE
Interfaces I/O	GPIB, USB Host, USB Interfaces I/O GPIB: Optional adapter
Storage	Compact Flash
Product Weight	6 LBS
Product Height	105 MM (4.13 IN)
Product Length	334 MM (13.15 IN)
Product Width	261 MM (10.28 IN)
Shipping Weight	8.6 LBS
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Siglent SDG5122 Function/ Arbitrary Waveform Generator 120MHz

Recommended for you

Accessories

for the Siglent SDG5122

Cal Test CT4103 Universal Adapter Kit

Cal Test CT4036 Function Generator And Freq. Counter Accessory Kit

Siglent SDG5122 Function/ Arbitrary Waveform Generator 120MHz

Tech Specs

Generators / Counters/Function Generator Template

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
