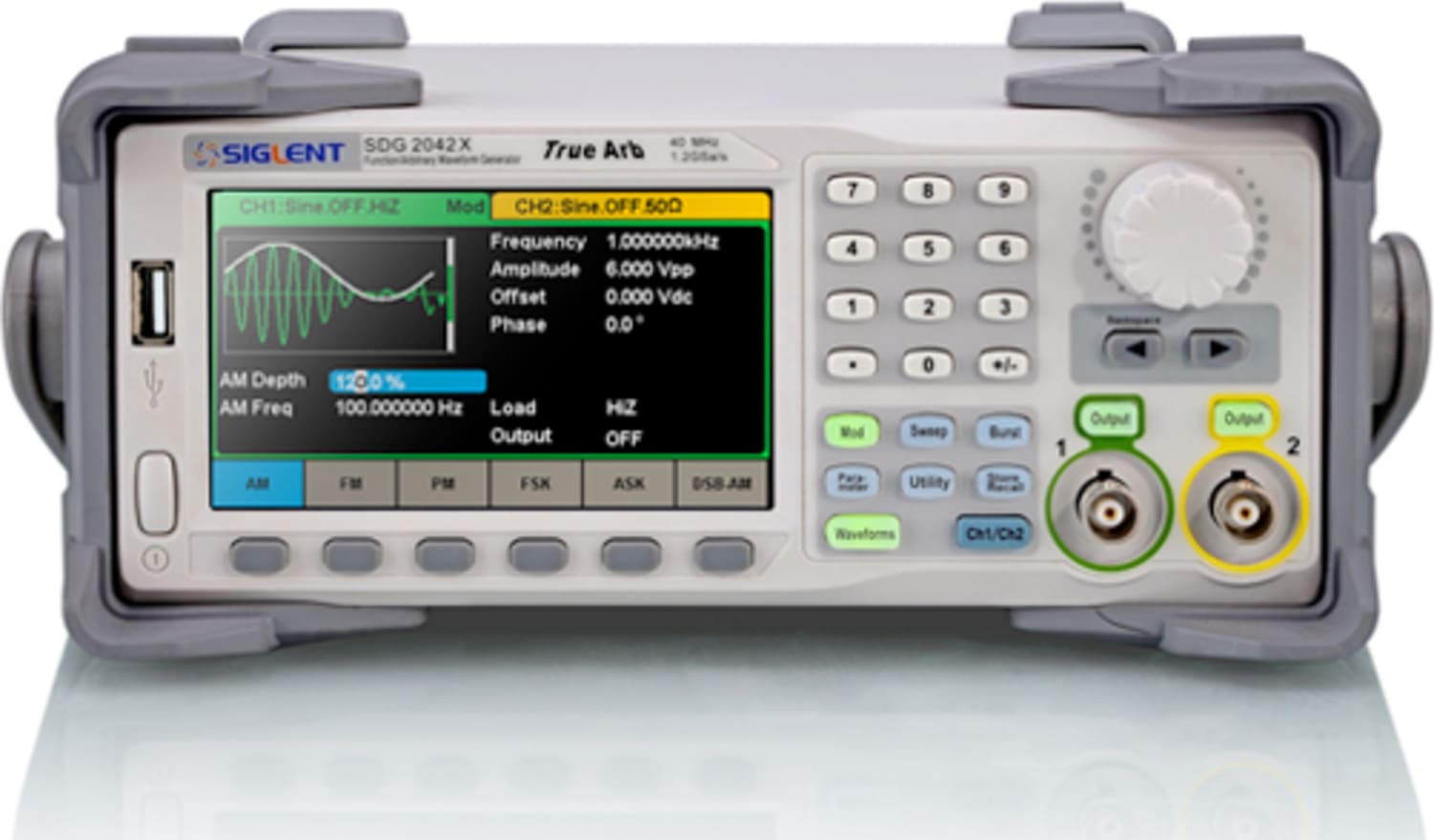

5 (2 Reviews) | Model: Siglent SDG2082X
80 MHz; 2 channels; 1.2 GSa/s; wave length: 8 pts-8 Mpts function/arbitrary waveform output; EasyPulse technology amplitude: 2 mV ~ 20 Vpp (high impedance); modulation function(AM, DSB-AM, FM, PM, ASK, FSK, PWM, Sweep, Burst); frequency counter function
Your Price: $619.00
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(8)
In Stock!
(11)
(0)
(2)
The Siglent SDG2000X are dual channel function/arbitrary waveform generators with 16-bit vertical resolution and sampling rates up to 1.2 GSa/s. Available in 40, 80 and 120MHz, the SDG2000X feature proprietary TrueArb and EasyPulse technologies and were designed to solve the weaknesses inherent in traditional DDS generators. These devices provide a variety of high fidelity and low jitter signals, which can meet the growing requirements of complex and extensive applications.
When a Square/Pulse waveform is generated by DDS, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG2000X EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms.
The Pulse width can be fine-tuned to the minimum of 16.3ns with the adjustment step as small as 100ps.
The rise/fall times can be set independently to the minimum of 8.4ns at any frequency and to the maximum of 22.4s. The adjustment step is as small as 100 ps.
For arbitrary waveforms, TrueArb not only has all the advantages of traditional DDS, but also eliminates the probability that DDS may cause serious jitter and distortion.
TrueArb generates arbitrary waveforms point by point, never skips any point so that it can reconstruct all the details of the waveform as defined.
As with EasyPulse, TrueArb effectively overcomes the defect that DDS may cause the one-clock-jitter in arbitrary waveforms.
Support for AM, FM, PM, FSK, ASK, DSB – AM provide for a variety of analog and digital modulation mode, “internal” and “external” modulation.
High precision Frequency Counter with an input frequency range of 0.1Hz~200MHz.
Benefiting from a 1.2GSa/s and 16-bit sampling system, SDG2000X achieves extremely high accuracy performance in both time domain and amplitude, which results in more accurately reconstructed waveforms and lower distortion.
4.3” touch screen display, makes operation much more convenient.
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying all 2 reviews
Most Helpful First | Newest First
Recommend to a Friend
Great product, feature rich
5.0
It has lots of features and is a good size. The price is very good for the number of functions.
txalan on Apr 04, 2016 I found this helpful (0)
I am very pleased with this unit so far
I received it last night and have been playing around with all the features and functions and this thing is great. I didn't know what I was missing not having a signal gen. It is easy to use, easy to navigate, and my arbitrary waveform testing on it has worked perfectly. It is more compact than it looks in the picture. Something that isn't advertised as much as it should be is the fantastic frequency counter it has as well, much better accuracy than the 6 digit counters most scopes have.
Verified Purchase Anonymous on Oct 28, 2015 I found this helpful (3)
