Siglent SDG1005 5MHz Function Arbitrary Waveform Generator

Name: Siglent SDG1005 5MHz Function Arbitrary Waveform Generator
Brand: Siglent
SKU: SiglentSDG1005
Price: 329.00 USD
Availability: InStock

0 reviews | Model: Siglent SDG1005

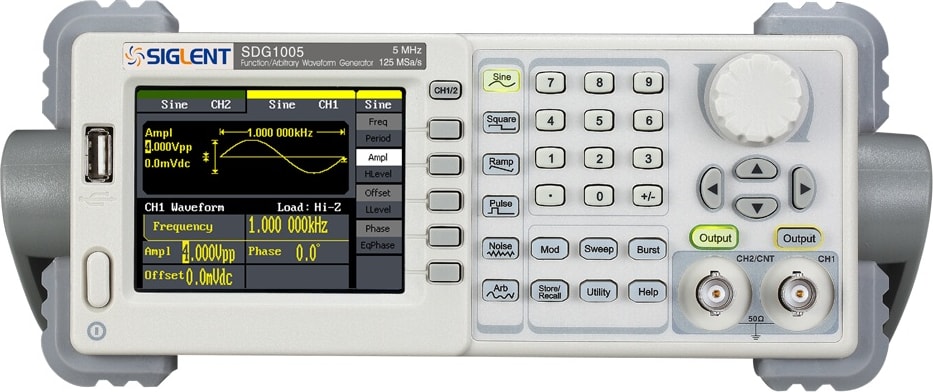

Siglent SDG1005 Digital Oscilloscope Front View

Compare

5MHz; 2 channels; 125MSa/s; wave length: 16Kpts; function/arbitrary waveform output amplitude:4mV 20Vpp (high impedance); modulation function(AM,DSB-AM,FM,PM,ASK,FSK,PWM,Sweep,Burst);frequency counter function

SDG1005 5MHz Function Arbitrary Waveform Generator.
DDS technology, dual-channel output
125MSa/s sample rate, 14bit vertical resolution.
5 types of standard output waveform, built-in 46 arbitrary waveforms(include DC)
Complete set of modulation functions: AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep, burst
Abundant input/output: waveform output, Synchronous signal output, External modulation source input, 10MHz clock input, external trigger input, internal trigger output etc
Channel duplication function
Built-in accurate frequency counter enables to measure ranges 100mHz- 200MHz (single channel)
Standard interfaces: USB Device, USB Host, Optional interface: GPIB
Supplied with powerful arbitrary editing software
Remote control support

View Product Details

List Price: $329.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

Adapter Kits
Function Generator / Frequency Counter Kits

for the Siglent SDG1005

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(8)

In Stock!

Add to Cart

Cal Test CT4037 Advanced Function Generator Accessory Kit

Catalog: CT4037

(11)

In Stock!

Add to Cart

Siglent SDG1005 5MHz Function Arbitrary Waveform Generator

The SDG1000 series of high-performance function/arbitrary waveform generators use direct digital synthesis (DDS) technology and can generate accurate, stable, clean and low distortion output signals. It provides fast rising and falling edge square waves up to 25MHz. The SDG1000 series provides a user-friendly graphical interface that can help you complete tasks faster and greatly improve your work efficiency. It has dual-channel output and each channel can output waveforms up to 50MHz (Sine Wave).

Reasonable price & outstanding performance

SDG1000 Series Function/Arbitrary Waveform Generator is a new family member of SIGLENT with friendly design: 3.5-inch TFT-LCD display; Built-in Chinese/English language; Online help function; Support USB and internal storage, facilitate files management; Special connection terminal for grounding.

Edit arbitrary waveform

Enables edition of 14-bit 16kpts arbitrary output waveforms, Arbitrary editing software EasyWave provides 9 standard waveforms: Sine, Square, Ramp, Pulse, ExRise, ExpFall, Sinc, Noise and DC, which meets all engineers’ basic needs; In addition, it provides plenty of ways of manual drawing, point-to-point line drawing, and arbitrary point drawing. It facilitates to create complex waveforms; Multi-file screen management helps users to edit multiple-waveform simultaneously. It provides 10 Storage in non-volatile RAM. You can edit and store more waveforms by EasyWave.

Arbitrary waveform output

Built-in 48 arbitrary waveforms, including math, engineering, and other commonly-used waveforms.

Complete set of modulation functions, sweep output, burst output

Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, the modulation waveform can be observed directly, which is suitable for education and training;
Sweep output: change output frequency from starting frequency to ending one within sweeping time, Sweeping time range: 1ms~500s. The carrier can be Sine, Square, Triangle and Arbitrary waveforms.
Burst output: It can periodically generate pulse sequences. Internal counter and external control signals are available to control burst output.

Dual-channel Coupling, Duplicating function

Channel coupling: after setting the base channel and coupling frequency/ phase difference, the frequency/phase of the other channel will change according to the base channel, keeping set coupling frequency/phase difference fixed.
Channel duplicating: allows to duplicate parameters from one channel to the other.

Built-in frequency counter

Wide frequency range: 100mHz~200MHz. Measurable parameters: frequency, period, duty-cycle, positive pulse width, negative pulse width Setting: it can set DC/AC coupling, trigger level, and high-frequency rejection.

The Front/Rear Panel

When you get a new SDG1000 Series Function/Arbitrary Waveform Generator, first you need to understand how to operate the front/rear panel correctly. This chapter will make a brief introduction and description of the operation and functions of the front/rear panel.

The SDG1000 Series Function/Arbitrary Waveform Generator has a clear and simple front panel. The front panel has a knob and functional keys. The 5 blue grey buttons on the right side of the screen are menu buttons (named F1 to F5 from up to down) with the help of which, you can enter different functions menu or have direct specific applications. The signal input and output interfaces are set at the front and rear panels which can help to generate multiple arbitrary waveforms. The various interfaces can meet the need of multiple interface communications.

The signs for buttons in this manual are the same as the panel buttons. Please note that, the signs for the functional buttons on the operation panel are represented by squared words, such as Sine, which represents the transparent functional key with Sine on it on the front panel, while the menu buttons are represented by brightening words such as Freq, which means the frequency option in the Sine menu.

To Set a Waveform

Content

To Set a Waveform

On the operation panel, there is a set of buttons with a waveform icon. The exercise below will help you familiarize yourself with the waveform selection settings.

Press the Sine button and the waveform window will display sine waveform. SDG1000 Series Generator can generate a sine signal with a frequency from 1μHz to 50MHz. By setting frequency/period, amplitude/high level, offset/low level, sine signal with different parameters can be generated.
Press the Square button, and the waveform window displays a square waveform. SDG1000 Series Generator can generate a square signal with a frequency from 1μHz to 25MHz and a variable duty cycle.
Press the Ramp button, and the waveform window displays a ramp waveform. SDG1000 Series Generator can generate a ramp signal with a frequency of from 1μHz to 300kHz and variable symmetry.
Press the Pulse button, and the waveform window displays pulse waveform. SDG1000 Series Generator can generate pulse signals with a frequency from 500μHz to 5 MHz and variable pulse width and delay.
Press the Noise button, and the waveform window displays the noise waveform. SDG1000 Series Generator can generate a noise signal with a bandwidth up to 50MHz.
Press the Arb button and the waveform window displays arbitrary waveform. SDG1000 Series Generator can generate repeatable arbitrary waveform signals with at most 16K points and 5MHz frequency.

Model	SDG1005	SDG1010	SDG1020	SDG1025	SDG1050
Max. output frequency	5MHz	10MHz	20MHz	25MHz	50MHz
Output channels	2
Sample rate	125MSa/s
Arbitrary waveform length	16kpts
Frequency resolution	1µHz
vertical resolution	14bits
Waveform	Sine, Square, Ramp, Pulse, Gaussian Noise. 48built-in arbitrary waveforms(include DC)
Modulation	AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Frequency counter	Frequency range:100mHz~200MHz
Standard interface	USB Host & Device
Optional interfaces	GPIB(IEEE-488)
Dimension	W x H x D=229mm x 105mm x 281mm
FREQUENCY SPECIFICATION
Waveform	Sine, Square, Ramp, Pulse, Noise, Arbitrary
Sine	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 20MHz	1μHz ~ 25MHz	1μHz ~ 50MHz
Square	1μHz ~ 5MHz	1μHz ~ 10MHz	1μHz ~ 20MHz	1μHz ~ 25MHz	1μHz ~ 25MHz
Pulse	500μHz ~ 5MHz	500μHz ~ 5MHz	500μHz ~ 5MHz	500μHz ~ 5MHz	500μHz ~ 5MHz
Ramp/Triangular	1μHz ~ 300kHz	1μHz ~ 300kHz	1μHz ~ 300kHz	1μHz ~ 300kHz	1μHz ~ 300kHz
Gaussian white noise	>5MHz (-3dB)	>10MHz (-3dB)	>20MHz (-3dB)	>25MHz (-3dB)	50MHz (-3dB)
Arbitrary	1μHz ~ 5MHz	1μHz ~ 5MHz	1μHz ~ 5MHz	1μHz ~ 5MHz	1μHz ~ 5MHz
Resolution	1μHz
Accuracy	Within 90daysv±50ppm within 1 year ±100ppm 18°C~28°C
Temperature coefficient	<5ppm/°C
SINE SPECTRUM PURITY
Harmonic Distortion	CH1/CH2
DC~1MHz	-60dBc
1MHz~5MHz	-53dBc
5MHz~25MHz	-35dBc
25MHz~50MHz	-32dBc
Total harmonic waveform distortion	DC~20kHz,1Vpp<0.2%
Spurious signal(non-harmonic)	DC~1MHz<-70dBc 1MHz~10MHz<-70dBc+6dB/spectrum phase
Phase noise	10kHz Offset,–108dBc/Hz(typical value)

SQUARE
Rise/fall time		<12ns(10% ~ 90%)
Overshoot		<5%(typical,1kHz,1Vpp)
Duty Cycle
	1µHz ~10MHz	20%~80%
	10MHz(exclude)~20MHz	40%~60%
	20MHz(exclude))~25MHz	50%
Asymmetric(50% Duty Cycle)		1% of period+20ns(typical,1kHz,1Vpp)
Jitter		0.1% of period(typical,1kHz,1Vpp)

RAMP/TRIANGLE
Linearity	<0.1% of Peak value output(typical,1kHz,1Vpp,100% symmetric)
Symmetry	0%~100%
PULSE
Pulse width	1800s, Max. 16 ns, Min. 8 ns resolution
Rise/Fall time (10% ~ 90%,typical,1 kHz,1Vpp)	7ns
Duty Cycle	0.1%Resolution
Overshoot	<5%
Jitter(pk-pk)	8ns
ARBITARY
Waveform length	16k points
Vertical resolution	14bits
Sample rate	125MSa/s
Min. Rise/Fall time	7ns(typical)
Jitter(pk-pk)	8ns(typical)
Storage in non-volatile RAM memory (10 in total)	10waveforms

OUTPUT SPECIFICATION
Output	CH1	CH2
Amplitude	2mVpp~10Vpp(50 Ω ,≤10MHz) 2mVpp~5Vpp(50 Ω ,>10MHz) 4mVpp~20Vpp(high impedance,≤10MHz) 4mVpp~10Vpp(high impedance,>10MHz)	2mVpp~3Vpp(50 Ω ) 4mVpp~6Vpp(high impedance)
Vertical accuracy (100 kHz sine)	±(0.3dB+1mVpp of setting value)	±(0.3dB+1mVpp of setting value)
Amplitude flatness (compared to 100 kHz sine,5Vpp)	±0.3 dB
Channel phase deviation	<400ps (classic value,sine,50MHz,4vpp)
Cross talk	<-70dBc
DC OFFSET
Range(DC)	±5V(50 Ω) ±10V(high impedance)	±1.5V(50 Ω ) ±3V(high impedance)
Offset accuracy	±(\|setting offset value\|*1%+3mV)	±(\|setting offset value\|*1%+3mV)
WAVEFORM OUTPUT
Impedance	50 Ω (typical)	50 Ω (typical)
Protection	short-circuit protection	short-circuit protection
AM Modulation(CH1/CH2)
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Modulation depth	0% ~ 120%
FM Modulation(CH1/CH2)
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary(2mHz~20kHz)
Frequency deviation	0 ~0.5*bandwidth 10µHz resolution
PM Modulation(CH1/CH2)
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Noise, Arbitrary(2mHz~20kHz)
Phase Deviation	0~360° ,0.1°Resolution
FSK Modulation(CH1/CH2)
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	50% duty-cycle square waveform(2mHz~50kHz)
ASK Modulation(CH1/CH2)
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Source	Internal/External
Modulation waveform	50%duty-cycle square waveform(2mHz~50kHz)
PWM Modulation(CH1/CH2)
Frequency	500µHz~20kHz
Source	Internal/External
Modulation waveform	Sine, Square, Ramp, Arbitrary(except DC)
External Modulation range	-6V~+6V (maximum width deviation)
Sweep(CH1/CH2)
Carrier	Sine, Square, Ramp, Arbitrary(except DC)
Type	linear/logarithmic
Direct	Up/down
Sweep time	1ms~500s
Trigger source	Manual, external, internal
Burst(CH1/CH2)
Waveform	Sine, Square, Ramp, Pulse, Arbitrary(except DC)
Type	Count(1~50,000 periods),infinite, Gated
Start/Stop phrase	0°~+360°
Internal period	1µs~500s
Gated source	External trigger
Trigger source	Manual, External or Internal
Rear Panel Connector
External modulation	±6V=100% modulation>5kΩ input impedance
External trigger	TTL compatible
Note	The external input voltage can’t be over ±6V, otherwise instrument gets damaged.
Trigger Input
Input Level	TTL compatible
Slope	Up or down (optional)
Pulse width	>100ns
Input impedance	>5kΩ,DC coupling
Trigger Output
Voltage level	TTL compatible
Pulse width	>400ns
Output impedance	50Ω (typical)
Max. frequency	1MHz
SYNC Output
Voltage level	TTL compatible
Pulse width	>50ns
Output impedance	50Ω(typical)
Max. frequency	2MHz

Frequency Counter
Measurement		Frequency, Period, Positive/negative pulse width, duty cycle
Frequency range		Single Channel:100mHz~200MHz
Frequency resolution		6bits/s
Voltage range (non-modulated signal)
Manual
	DC coupling	DC offset range	±1.5VDC
		100mHz~100MHz	50mVrms~±2.5V
		100MHz~200MHz	100mVrms~±2.5V
	AC coupling	1Hz~100MHz	50mVrms~5Vpp
		100MHz~200MHz	100mVrms~5Vpp
Pulse width and duty-cycle measurement	1Hz~10MHz(50mVrms~5Vpp)
Input adjustment	Input impedance		1MΩ
	Coupling mode		AC,DC Input adjustment
	High-frequency rejection		ON/OFF
Trigger level range	-3V~ +1.8V

GENERAL SPECIFICATION
Display
Display type	3.5inch’TFT-LCD
Resolution	320×RGB×240
Color depth	24bit
Contrast Ratio	350:1(typical)
Luminance	300cd/m 2 (typical)
Power
Voltage	100~240 VAC RMS, 45~66Hz,CATII 100~127 VAC RMS, 45~440Hz,CATII
Consumption	<30W
Fuse	1.25A,250V
Environment
Temperature	Operation:0°C~40°C Storage:-20°C~60°C
Humidity range	Below +35℃:≤90% relative humidity +35℃~+40℃:≤60% relative humidity
Altitude	Operation: below 3,000 meters Storage: below 15,000 meters
Others
Dimension	Width:229mm Height:105mm Depth:281mm
Weight	N.W: 2.6Kg
IP protection
IP2X
Calibration Cycle
1 year

Generators / Counters/Function Generator Template
Channels	2
Frequency Maximum	5 MHz
Frequency Minimum	1 uHz (0.000001 Hz)
Functions	Burst, CMOS, Noise, Other, Pulse, Ramp, Sine, Square, Sweep, Triangle, TTL
Max Amplitude Vpp @ 50 ohms	10 V
Arbitrary	Yes
Sample Rate	125 MSa/S
Screen Type	TFT
Color Screen	Yes
Digital Amplitude Resolution	14 Bits
Triggering	Yes
Counter that displays frequency on screen.	Yes
Modulation Types	AM, FM, FSK, PWM
Graphical Display	Yes
Memory	16 kB
Direct Digital Synthesis (DDS)	Yes
PC Based	No
Test Equipment General Attributes
Unique Features	Seamlessly transfer files captured on Siglent oscilloscopes with a compact flash drive to the SDG1000 generators to recreate the waveform.
Warranty	3 YEARS
Warranty Details	Warranty service center in Cleveland, OH
Safety Approval	CE
Interfaces I/O	GPIB, USB Host, USB
Storage	Compact Flash
Product Weight	5.7 LBS
Product Height	105 MM (4.13 IN)
Product Length	281 MM (11.06 IN)
Product Width	229 MM (9.02 IN)
Shipping Weight	9.9 LBS
Calibration Included	Factory Calibration
Power Supply Voltage	120V/220V Universal
Country of Origin	China

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Siglent SDG1005 5MHz Function Arbitrary Waveform Generator

Recommended for you

Accessories

for the Siglent SDG1005

Cal Test CT4103 Universal Adapter Kit

Cal Test CT4037 Advanced Function Generator Accessory Kit

Siglent SDG1005 5MHz Function Arbitrary Waveform Generator

Reasonable price & outstanding performance

Edit arbitrary waveform

Arbitrary waveform output

Complete set of modulation functions, sweep output, burst output

Dual-channel Coupling, Duplicating function

Built-in frequency counter

The Front/Rear Panel

To Set a Waveform

Generators / Counters/Function Generator Template

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
