0 reviews | Model: Siglent DPB1300
Bandwidth: 50 MHz; Rise Time 7 ns; DC Accuracy 2%; Max Input: 600 V CATIII, 1000 V CATII; Max Differential Test Voltage (DC + Peak AC): 50 X: 130 V, 500 X: 1300 V. Input impedance/capacitance: 5 M Ohm /<4 pF(Single-ended), 10 M Ohm /< 2 pF(Two inputs); DC 12 V/1.2 A Power
Your Price: $489.00
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.

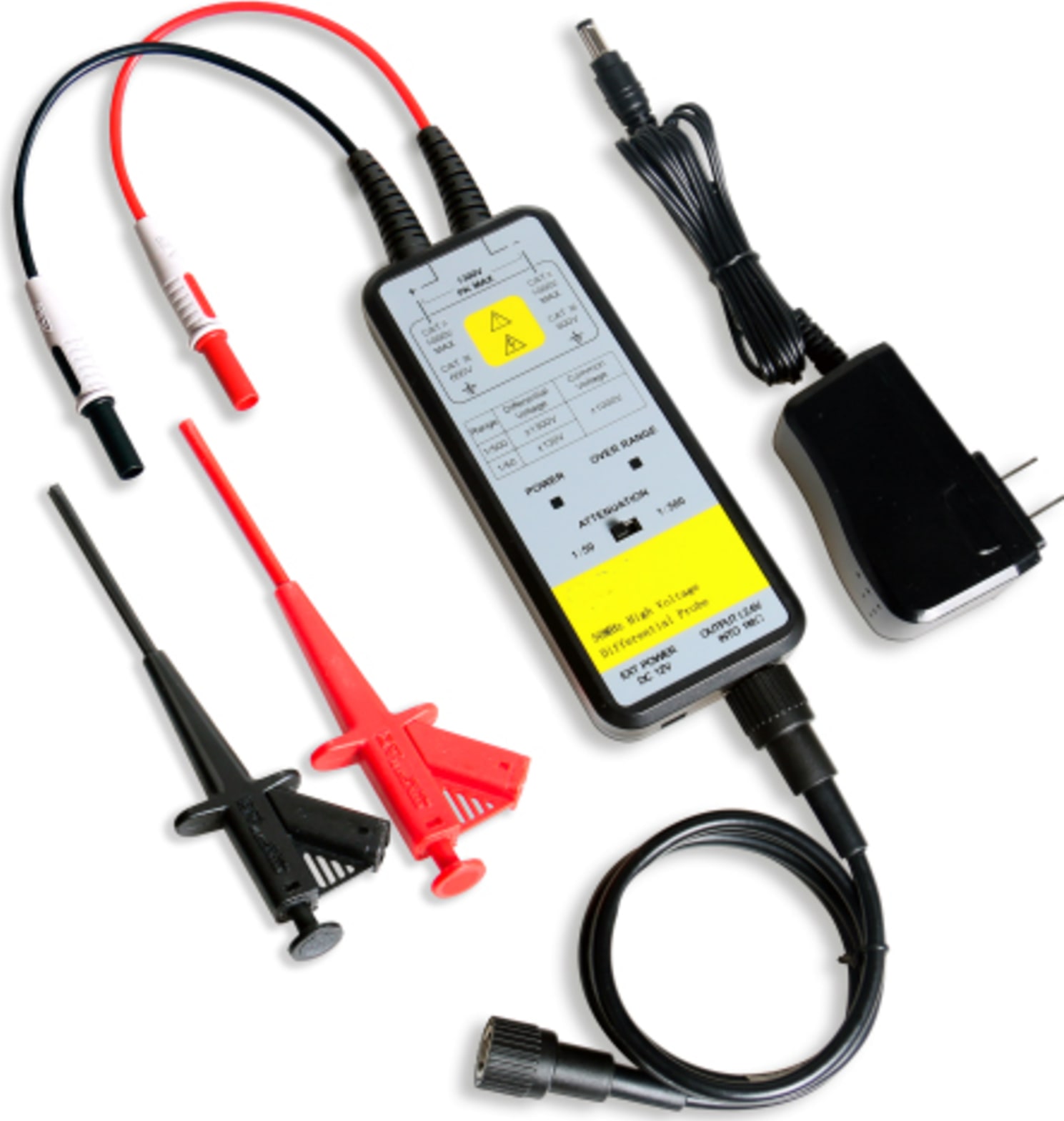

The Siglent DPB1300 is designed to measure high voltage differential signals and floating measurements. The DPB1300 has a standard BNC port, enabling it to be connected to any brand of oscilloscope. It also has a great CMRR, which is very important in many power electronics applications.
Input port: The red line is positive and black line is negative. When the connection is reversed, the output will be inversed. Attenuation: Different attenuations symbolize different measurement range. 500X means the max measuring voltage is 1300V and 50X means 130V. The attenuation ratio setting of the Oscilloscope should be compatible with the attenuation of the probe. Over Range Indicator: The Indicator will be lighted red when the measurement is out of range. Output port: The standard BNC output port can fit any kind of oscilloscope. But the Input Impedance of the oscilloscope should be 1MΩ, otherwise it can cause the attenuation of the output. For instance, if the Impedance is 50Ω, the output will be 50% of the actual value. Power port: DC 12V port, able to be powered by standard DC adapter
