Siglent CPL5100 - AC/DC Current Probe (100A/600kHz)

Name: Siglent CPL5100 - AC/DC Current Probe (100A/600kHz)
Brand: Siglent
SKU: SiglentCPL5100
Price: 465.00 USD
Availability: InStock

0 reviews | Model: Siglent CPL5100

Compare

Bandwidth: DC-600 kHz ; Current Range: L(50mA~10A Peak), H(1A~100A Peak); Attenuation accuracy L(0.1V/A), H(0.01V/A); Typical DC precision: L(3% 50mA), H(500mA~40A Peak 4% 50mA 40A~100A Peak 15% Maximum); Rise Time: 583ns; Operating voltage RMS: CATI 600V CATII 600V CATIII 300V; 9V alkaline layer-built battery/ 15H

AC/DC current probe
Bandwidth: DC - 600 kHz
Maximum Continuous Current: 10 A (Low Range)/100 A (High Range)
Switching Ratio: 10 A/100 A
Accuracy low range (3%±50 mA)
Accuracy high range (1500 mA~40 A Peak: 4% ± 50 mA) (40 A~100 A Peak: ± 15% Maximum)
Power: 9V battery
To view the Siglent probe brochure, please click here

View Product Details

Your Price: $465.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Recommended for you

Siglent CPL5100 - AC/DC Current Probe (100A/600kHz)

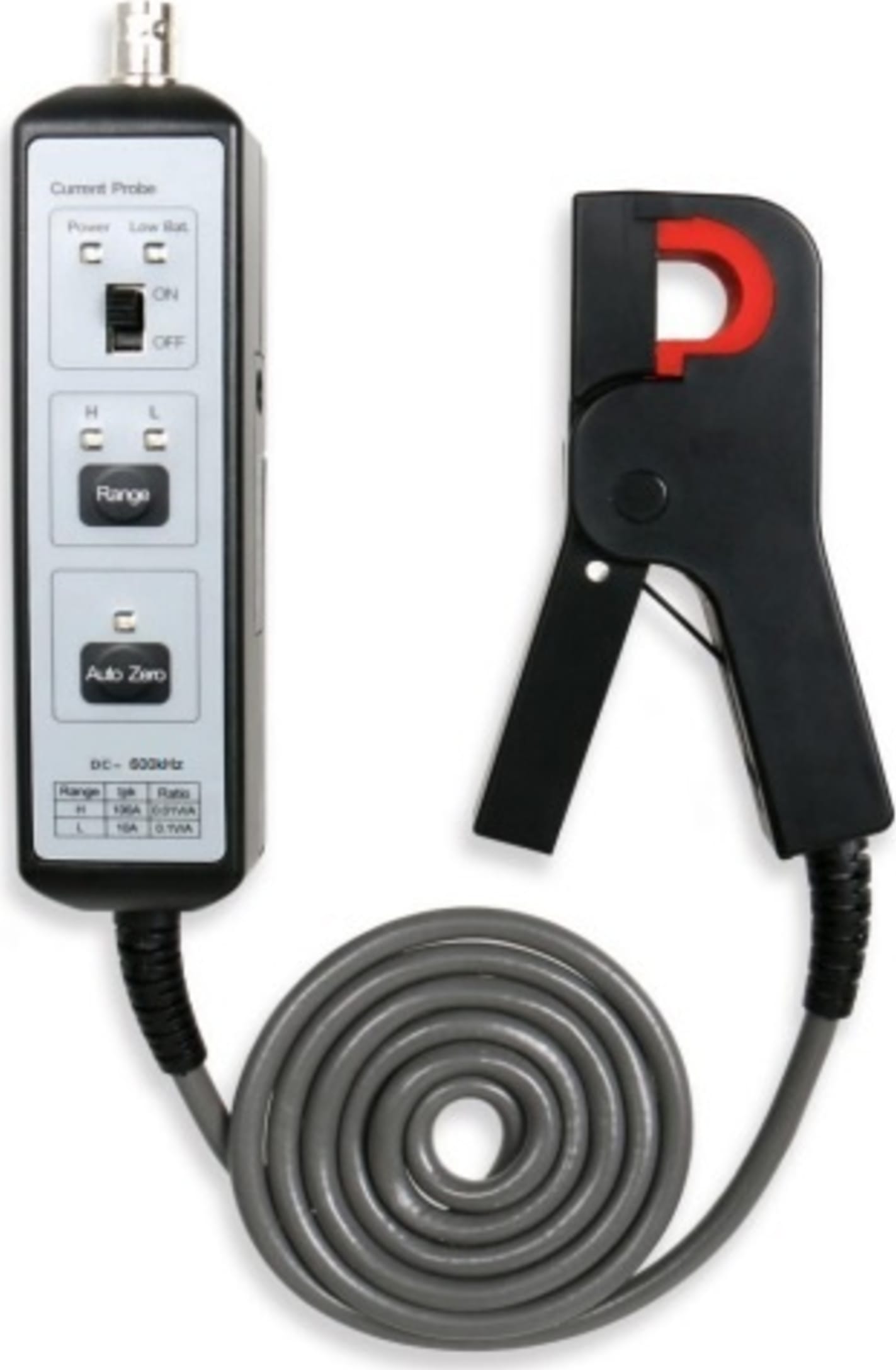

The Siglent CPL5100 is a current probe that can measure both DC and AC current up to 100A (70.7Arms), and has a bandwidth of 600 kHz (-3dB). The CPL5100 provides two range option of 10A and 100A - users may choose the correct range according to the current value.

The auto zero function makes operation easy, along with power and low voltage indicators, as well as overload sound alerts. For additional convenience, the probe can be powered by battery or external power supply. With a standard BNC output port, the probe can connect to any oscilloscope, as well as a multimeter if used with a BNC-banana plug.

Max Current (DC + Pk)	Max RMS value	Bandwidth (-3dB)	Range	Current Transfer Ratio
100A	70.7 Arms	600kHz	100A	0.01 V/A
100A	70.7 Arms	600kHz	10A	0.1V/A

Product Features

Power Switch: ON and OFF
Power Indicator: When the power switch is on, the indicator is green
Battery Low Voltage Indicator: When the voltage of the battery is lower than 6.5V, the power indicator will light red, reminding users to change battery
Range Switch: Press the button switch to change between H and L Range
Range Indicator: Indicating the current Range choice. H level: 100A; L level: 10A
Auto Zero button: To make accurate measurements, users need to do zero degaussing before measuring to avoid the influence of environmental factors such as earth magnetic fields or temperature shift
Auto Zero Indicator: When Auto Zero is working, the indicator will turn green. It will be turn off when the Auto Zero is finished
Clamp: The clamp used for current measurement; the max diameter for the cable is 12mm
External Power Supply Plug: Powered by external DC supply
Battery Box: Standard 9V alkaline battery is used. Please turn off the switch and disconnect from the conductor under test and oscilloscope when changing battery

General Specifications
Range level	23℃ , 60%RH, cable under test get through the test center, load resistance 1MΩ
Current range	L	H
Attenuation accuracy	50 mA~10 A Peak	1 A~100 A Peak
Typical DC precision	0.1 V/A	0.01 V/A
Band Width (-3dB)	DC-600 kHz
DC Accuracy	3%±50 mA	1500 mA~40 A Peak: 4%±50 mA; 40 A~100 A Peak: ±15% Maximum
Phase shift	DC~65 Hz: <1.5°	DC~65 Hz: <1°
Typical DC linearity	The typical DC linearity at H level (0.01 V/A), Figure 4
Rise time	≤583 ns
Max operation current	10 A	100 A
Max operation voltage	600 V
Max floating voltage	600 V
Operating voltage	RMS CATI 600 V CATII 600 V CATIII 300 V
Common mode voltage	RMS CATI 600 V CATII 600 V CATIII 300 V
Typical battery type and life	9 V alkaline layer-built battery/ 15 H
Low power indication	When battery voltage is lower than 6.5 V, battery indicator will turned red and alert
Overload indication	When the current under test surpasses the range, the buzzer will buzz
Length of the cable connecting current clamp and output box	1 m
Length of double terminal BNC cable	1 m
Weight	About 223 g (without battery)
