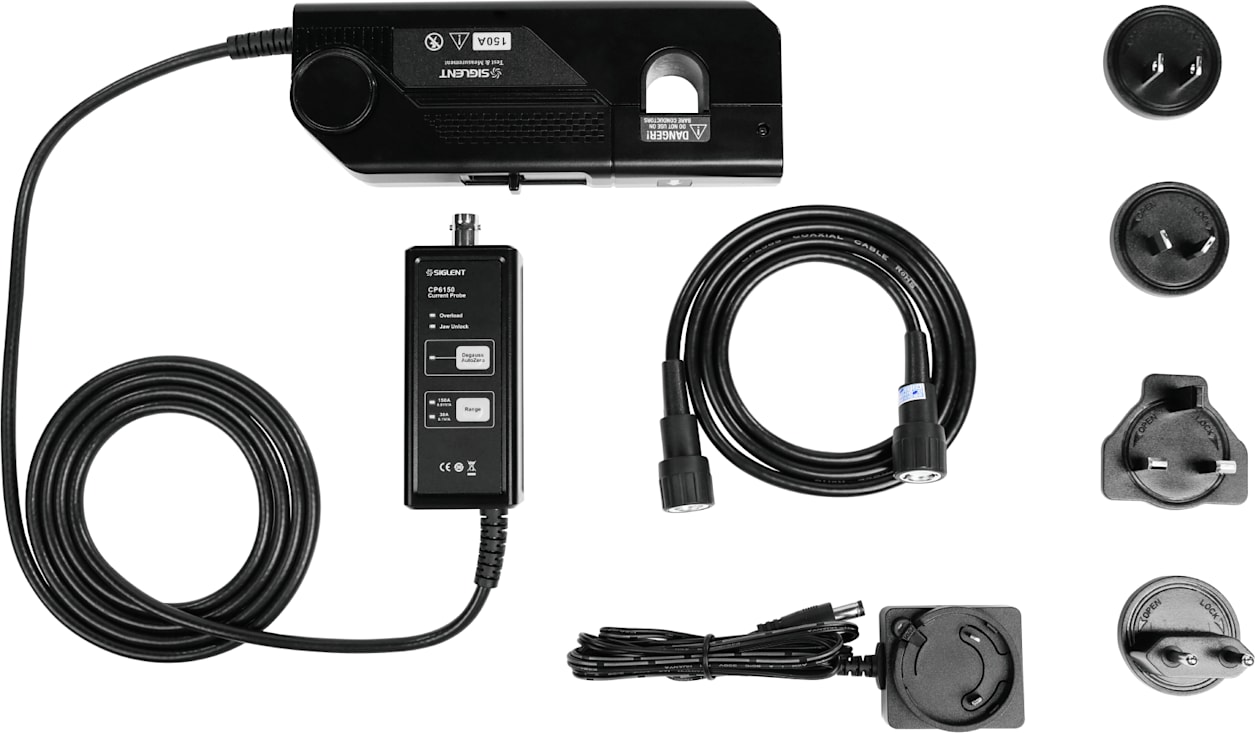

Current Probe (12 MHz, 150 Arms, 300 A)
The CP6000 series current probes are wide band width DC / AC active current probes, featuring high bandwidth, fast and accurate capture the current wave, accuracy up to 1% and low circuit insertion loss. This probe can be used with any oscilloscope having a high-impedance BNC input.
| Bandwidth: DC-12MHz | DC Accuracy: 30A(±1%±10mA) 150A(±1%±100mA) |
| Rise Time: ≤ 29nS | Max. rated Voltage to earth: 300V CAT III 600V CAT II |
| Max. effective Value of AC: 150 Arms | Conductor Diameter Max: 20mm |
| Peak-Peak Value: 300 A | Cable Length: 1.5m |
| Range: 30A(10X)/150A(100X) | Power Supply: DC 12V/1A |
| Overload Value: 30A(≥30A) 150A(≥300A) | BNC Length: 100cm |
| Current Transfer Ratio: 30A(0.1V/A) 150A(0.01V/A) | Weight: 555g |
| Measurement Resolution: 30A(10mA) 150A(100mA) |
|
