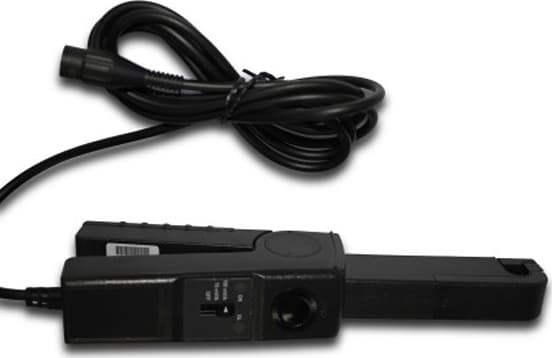

Siglent CP4200 150KHz, 400mA ~ 200A, Battery-Powered

Name: Siglent CP4200 150KHz, 400mA ~ 200A, Battery-Powered
Brand: Siglent
SKU: SiglentCP4200
Price: 688.00 USD
Availability: InStock

0 reviews | Model: Siglent CP4200

Compare

Battery-powered, 150KHz, 400mA 200A

Battery-powered, 150KHz, 400mA 200A
Battery-powered, 150KHz, 400mA ~ 200A

View Product Details

List Price: $688.00

In Stock:

View Payment Options

Recommended for you

150KHz, 400mA ~ 200A, Battery-Powered

CP4000 Series probes adopt electromagnetic induction technology, to measure AC / DC current. They can measure from dozens of mA apeak to 200A, with the advantages of low phase. Besides, they can guarantee the accurate measurement of power voltage output (mV) effectively, Furthermore, they can measure cables, and be used in narrow spaces, because of the a narrow clamp design.

Specifications
Model	CP4060		CP4200
Range	20mV/A	2mV/A	20mV/A	2mV/A
Current Range	50mA-10Apk	1A-60Apk	50mA-10Apk	1A-200Apk
Output signal error	3%±5mV	500mA~10Apk： 4%±500uV 10A~60Apk： 60A Max.15%	3%±5mV	500mA~10Apk： 4%±500uV 10A~200Apk： 200A Max.15%
Bandwidth（-3dB）	DC~100kHz		DC~150kHz
Phase shift	DC-65Hz：<1.5°	DC-65Hz：<1°	DC-65Hz：<1.5°	DC-65Hz：<1°
Load impedance	≥1MΩ and ≤100pF		≥1MΩ and ≤100pF
Impedance	0．01Ω		0．01Ω
Noise	6mV	600μV	6mV	600μV
Switching rate	0.3V/μS	20mV/μs	0.3V/μS	20mV/μs
Rise time	3μs	4μs	3μs	4μs
Measuring condition	23±5℃，20~75%RH,Sinusoidal frequency 48~65 Hz， external magnetic field <40 A/m，No load flow nearby， center testing sample， load impedance 1 MΩ
Operating voltage	Max.600Vrms
CMRR	Max.600Vrms
Battery	9V DC(NEDA 1604A,IEC 6LR61)
Low battery indicator	with green LED light when >6.5V
Overload indicator	Red LED light indicates the over measuring current, change the range
Mechanical Specifications
Operating temperature	0~+50℃
Storage temperature	-3~+80℃
Temperature influence	Every 10℃，<0.2%
Operating relative humidity	+10℃~+30℃：85±5% relative humidity(non-condensing ) +40℃~+50℃：45±5%relative humidity(non-condensing )
Operating height	0~2000m
Max clam size	Diameter 11.8mm
Dimension	231х36х67mm
Weight	330g(including battery)
