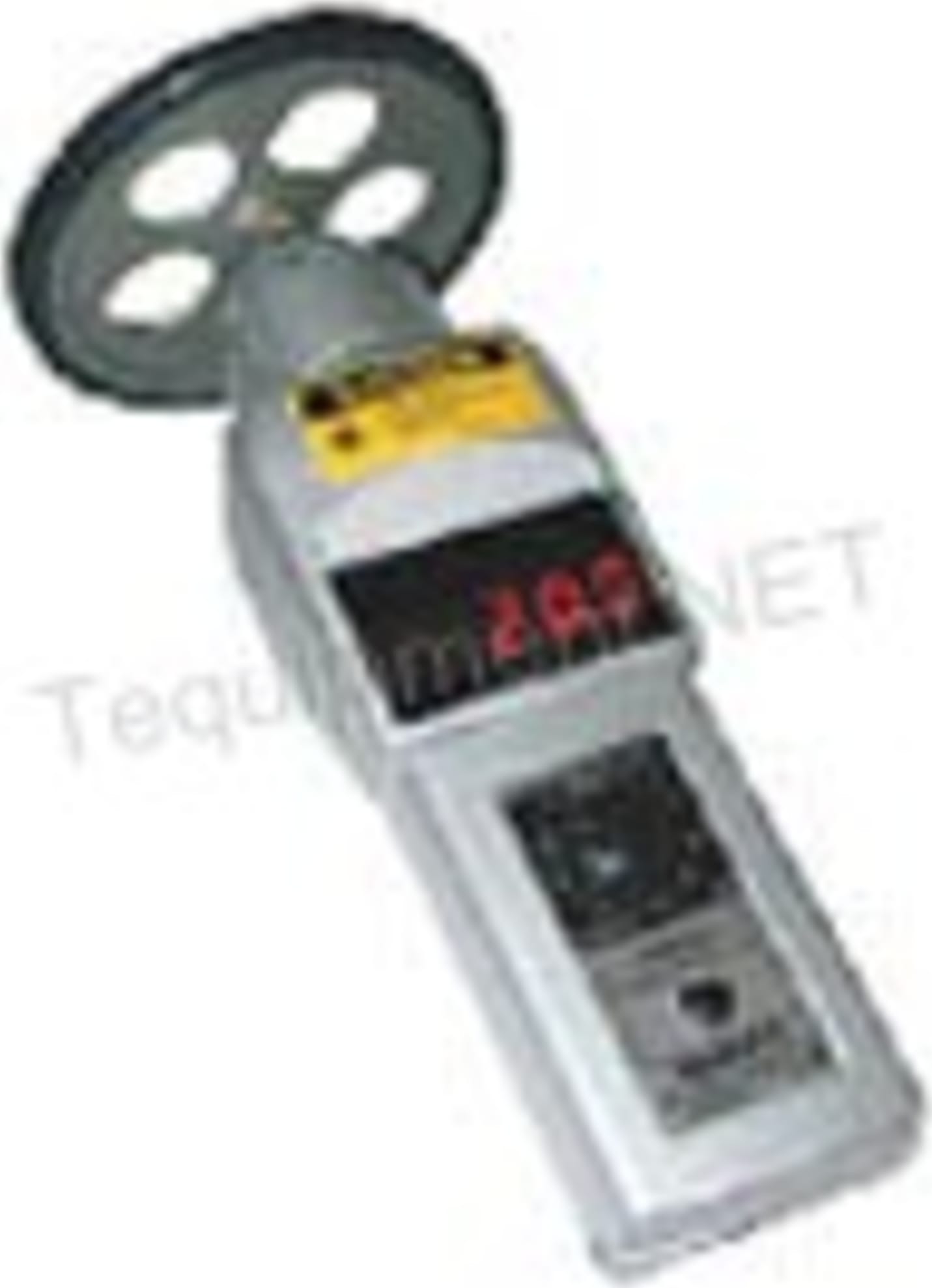

Shimpo DT-205L-S12 Handheld Tachometer LCD with 12 Inch Wheel

Name: Shimpo DT-205L-S12 Handheld Tachometer LCD with 12 Inch Wheel
Brand: Shimpo
SKU: ShimpoDT-205L-S12
Price: 301.50 USD
Availability: InStock

0 reviews | Model: Shimpo DT-205L-S12

Compare

DT-205L-S12 (LCD) 12 cir. wheel - Range: 6-99,999 RPM - Accuracy: +/- 0.006%

Calibrated 12" Wheel
Advanced laser beam detection
Exceptional accuracy (±0.0006% of reading)
Length and rate functions
Multi-mode speed selection
Broad speed range (up to 99,999 RPM)
Hardy aluminum construction
Large 5 digit display
Expansive 10 test memory capacity (selectable to 5 minutes or more)
Extended battery life (25 - 40 hours)
Free N.I.S.T. certificate
CE mark

View Product Details

List Price: $335.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Shimpo DT-205L-S12

Shimpo CONE Standard Cone Attachment for Handheld Tachometers, 1/2 inch Diameter

Catalog: CONE

(0)

In Stock!

Add to Cart

Shimpo EXT-SHAFT 3.5 inch Extension Shaft for Digital Tachometers

Catalog: EXT-SHAFT

(1)

In Stock!

Add to Cart

Shimpo FPM-12 12-inch Circumference Contact Measuring Wheel for Digital Tachometers

Catalog: FPM-12

(0)

In Stock!

Add to Cart

Shimpo FPM-6 6-inch Circumference Contact Measuring Wheel for Digital Tachometers

Catalog: FPM-6

(0)

In Stock!

Add to Cart

Shimpo FUNNEL Standard Funnel Attachment for Handheld Tachometers, 1/2 inch Diameter

Catalog: FUNNEL

(1)

In Stock!

Add to Cart

Shimpo TAPE Reflective Tape Strip, 1 x 7 3/4 inch

Catalog: TAPE

(0)

In Stock!

Add to Cart

The DT-205L-S12 provides exceptional accuracy in measuring speed and length via a 12” wheel; the larger wheel rotates more slowly than a standard 6” wheel, enabling reliable and safe registration of high speeds. These superior instruments also feature a contact adapter, conveniently allowing both non-contact and contact measurement. One year warranty.

General
Display Range	6 to 99,999 rpm
Accuracy	±1 rpm:6 to 8,300 rpm, ±2 rpm:8,300 to 25,000 rpm, 25,000 to 99,999 rpm:±0.006%of reading ±1 digit (±6 rpm max.)
Display	5 digit 0.47"(12mm)high LCD
Measuring Units	RPM (on contact using adapter,included), For YPM,mPM,FPM,IPM and Length:YRD,m,FT and IN use 6"cir.wheel with 200L adapter
Measuring Distance	14'(4.2 m)maximum
Memory System	13 readings are stored in memory and retained for 5 minutes (last,max.,min.and 10 extra measurements)
Detection	Laser diode /contact
System Control	Single chip C-MOS microprocessor
Over Range Indicator	Flashing numerals
Update Time	1 second (typical)
Batteries	Included Size:2 AA 1.5V
Battery Life	Approx.40 hrs
Low Voltage Indicator	Flashing “LO BAT ”display
Operating Temperature	32 °to 113 °F (0 °to 45 °C)
Construction	Die-cast aluminum housing
Weight	0.8 lb (365g)
Dimensions	6.6"L x 2.4"W x 1.8"H (167.5 mm x 60 mm x 46 mm)
Warranty	1 year
Standard Accessories	Reflective tape,2 cone adapters,1 funnel adapter, NIST certificate,instruction manual,carrying case,200L adapter, master wheel (12"cir.)and 3.5"extension shaft
