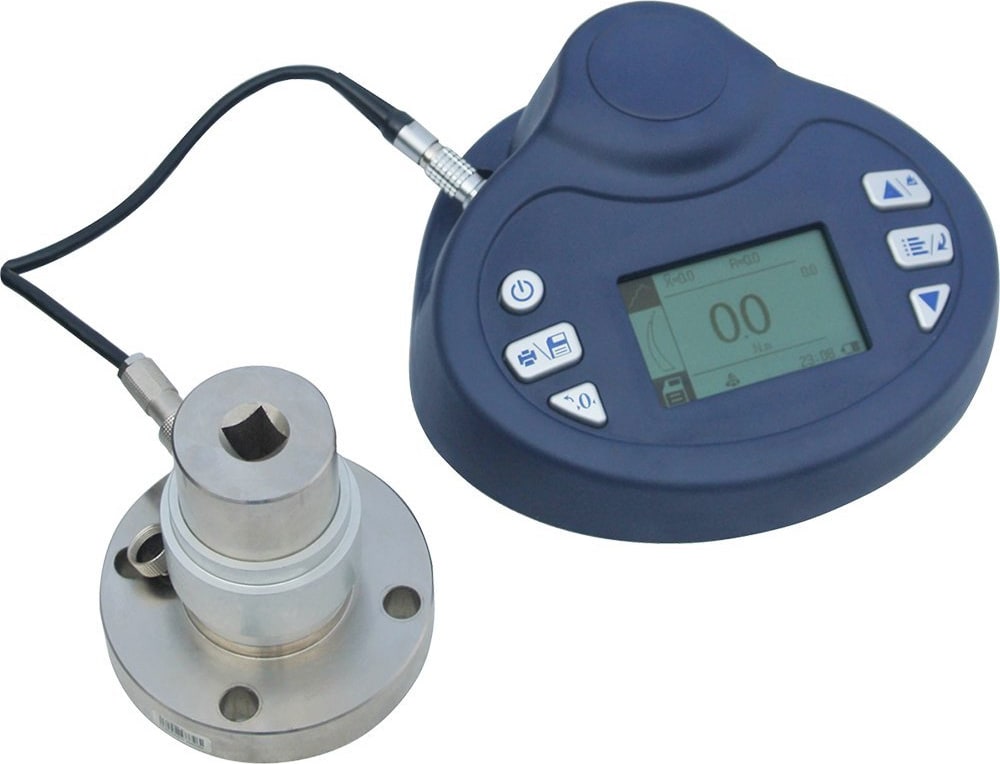

Shimpo TTC-E - Torque Tool Tester Display

Name: Shimpo TTC-E - Torque Tool Tester Display
Brand: Shimpo
SKU: ShimpoTTC-E
Price: 1080.00 USD
Availability: InStock

0 reviews | Model: Shimpo TTC-E

Compare

Torque Tool Tester Display for Use with Model ES External Sensors

Strong, light-weight, compact aluminum enclosure allows portability and usage in any shop environment
Flexible six modes of operation: Track, Peak, First Peak, Auto Peak, Auto First Peak, Double Peak
Backlit graphical, reversible display with analog bar graph plus CW/CCW directional indication provides fast interpretation of tool response. Selectable chart display mode aids viewing performance over the entire test
Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
Units come standard with USB or RS232 communication output for data upload
1000 memory record storage plus software provides easy data transfer
0.3% FS accuracy provides a standard for checking tools on ranges up to 590 ft-lb (800 N-m)
Operation via the rechargeable battery or the AC
Available rundown adapter for power tool testing on certain models
Calibration certificate with data guarantees performance upon purchase

View Product Details

List Price: $1,200.00

Your Price: $1,080.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Shimpo TTC-E Torque Tool Tester Display for Use with Model ES External Sensors	Shimpo TTC-E-800 Torque Tool Tester, External Sensor, 1 lbf	Shimpo TTC-E-500 Torque Tool Tester, External Sensor, 500 N-m, 0.2 lbf	Shimpo TTC-E-200 Torque Tool Tester, External Sensor, 200 N-m, 0.2 lbf	Shimpo TTC-I-100 Digital Torque Tool Tester, 0.2 N-m, 0.02 lbf	Shimpo TTC-I-50 Digital Torque Tool Tester, 0.01 N-m, 0.05 lbf	Shimpo TTC-I-20 Digital Torque Tool Tester, 0.002 N-m, 0.02 lbf	Shimpo TTC-I-10 Digital Torque Tool Tester, 0.01 N-m, 0.01 lbf	Shimpo TTC-I-5 Digital Torque Tool Tester, 0.001 N-m, 0.005 lbf	Shimpo TTC-I-2 Digital Torque Tool Tester, 0.0002 N-m, 0.002 lbf
Price
In Stock
Accuracy		± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity	± 0.3% of reading over 5 to 100% capacity
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

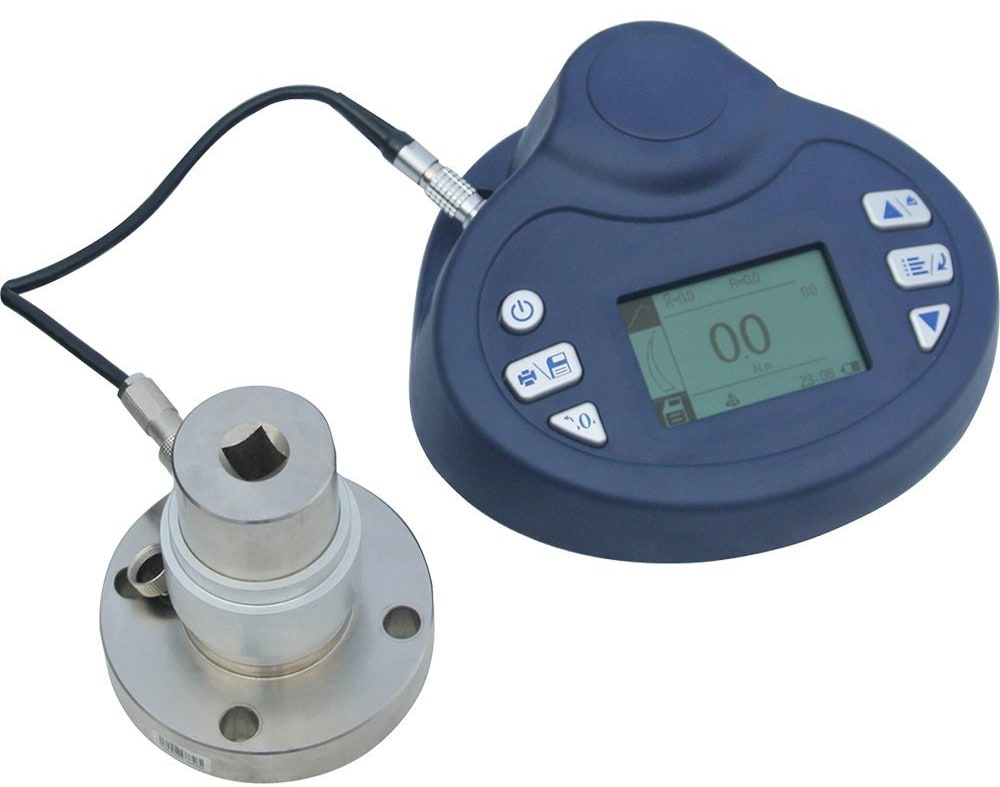

Shimpo TTC-E - Torque Tool Tester Display

Strong, light-weight, compact aluminum enclosure
Preset operation with Pass-Fail LED icons enable quick determination of tool performance acceptance
Operation via the rechargeable battery or the AC
Calibration certificate with data guarantees performance upon purchase

The TTC's provide long operation life and power flexibility with the ability to work from the internal rechargeable battery or included AC adapter. The TTC's have six modes of operation: Track for live readings, Peak which records the highest level over a test, First Peak which records a reading after a programmed decrease, Auto Peak which resets after a period of time, Auto First Peak which resets the first peak after a period of time, Double Peak which provides two separate peak readings from programmed decreases. Preset operation with programmable tolerance thresholds for quick pass-fail tool tests is available in all modes.

The analog bar graph on the backlit, reversible LCD aids users by providing the resultant torque’s current position compared to the full-scale range along with the direction of the force. Pass/fail icons produce live test feedback allowing instant determination of the results.

Every tester comes standard with USB and RS-232 outputs. The TTC's software enables the uploading of data and the additional statistical analysis with its auto-calculation of the selected values.

These excellent features make the TTC Torque Tool Testers a valuable and versatile addition to the production and quality control departments.

General Specifications
Measuring Range	0.5% - 100% capacity
Accuracy	ą 0.3 % of reading
Units of Measure	N-cm, N-m, in-lb, ft-lb, kg-cm (depending on range)
Measure Modes	Track, Peak, First Peak, Auto Peak, Auto First Peak & Double Peak
Tool Socket Size	TTC-2/5/10: 1/4" & 1/2" (6.3 & 12.5 mm) TTC-20/50/100/200: 3/8" & 1/2" (10 & 12.5 mm) TTC-500/800: 3/4" (19 mm)
Overload Protection	120% of Full Scale
Sampling Rate	2000 Hz
Peak Capture Rate	0.05 s
Display	160* 128 Dot matrix backlit LCD
Display Update Rate	10 times/sec
Memory	1000 data
Set Point	Programmable High and Low Limits
Battery Indication	Battery icon flashes when low
Charger/Adapter	Universal USB charger, input 100 240 V ac 50/60 Hz
Operating Temperature	14 to 104°F (-10 to 40°C)
Humidity Limit	20 80% RH
Power	3.6 V dc 1600 mAH Ni-MH
Battery Life	Approx. 16 Hours continuous on full charge
Output	USB, serial port RS-232, High and low limit NPN
Dimensions	Display TTC-I: 7.75 x 7 x 3.3" (197 x 180 x 83 mm) Display TTC-E: 7.75 x 7 x 3" (197 x 180 x 75 mm) External / Sensor (50, 100 N-m): 4.3 x 3.3"(110 x 83 mm) External Sensor (200, 500 & 800 N-m): 4 x 3.8" (100 x 98 mm)
Product Weight	TTC-I: 3.3 lb (1.5 kg) TTC-E Display: 2.6 lb (1.2 kg) TTC-E-200/500/800 External Sensor: 4.4 lb (2 kg)
Package Weight	TTC-I: 6.5 lb (3 kg) TTC-E-200/500/800: 10.2 lb (4.6 kg)
Warranty	1-Year
Certification	CE
