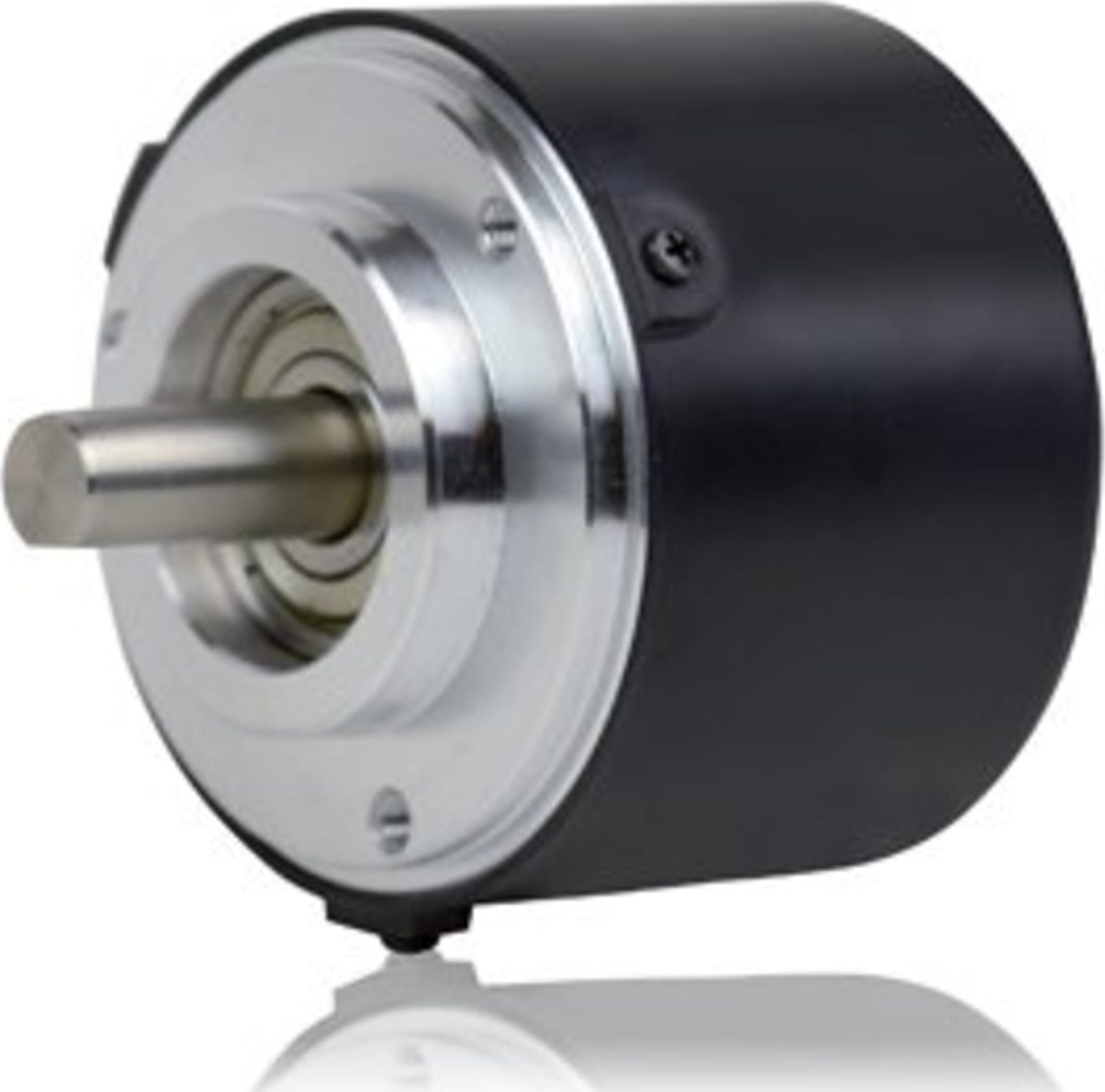

Shimpo RE2B-30F - Rotary Encoder in ABS Housing with 30 ppr Digital Output

Name: Shimpo RE2B-30F - Rotary Encoder in ABS Housing with 30 ppr Digital Output
Brand: Shimpo
SKU: ShimpoRE2B-30F
Price: 193.50 USD
Availability: InStock

0 reviews | Model: Shimpo RE2B-30F

Compare

Rotary Encoder in ABS Housing with 30 ppr Digital Output

Dual Logic Output (90° out of phase) for quadrature applications.
30 Pulses / Rev
5000 rpm Max
1.6' (.49 m) Cable

View Product Details

List Price: $215.00

Your Price: $193.50

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Shimpo RE2B-30F Rotary Encoder in ABS Housing with 30 ppr Digital Output	Shimpo RE1B-60F Rotary Encoder in ABS Housing with 60 ppr Digital Output	Shimpo RE1B-600F Rotary Encoder in ABS Housing with 600 ppr Digital Output	Shimpo RE2B-600F Rotary Encoder in ABS Housing with 600 ppr Digital Output	Shimpo RE1B-1000F Rotary Encoder in ABS Housing with 1000 ppr Digital Output
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Shimpo RE2B-30F Accessories

Choose a Category

General Accessories

for the Shimpo RE2B-30F

Shimpo FPM-RE1B 12 inch Circumference Contact Wheel for Use with RE1B and RE2B Pulse...

Catalog: FPM-RE1B

(0)

In Stock!

Add to Cart

Shimpo RE1-BRKT RE1B-F Series Mounting Bracket

Catalog: RE1-BRKT

(0)

In Stock!

Add to Cart

Specifications
Model	RE1B & RE2B
Maximum Speed	5000 RPM
Power Supply	4.75 – 30VDC
Current Maximum	40mA (max)
Output Voltage	logic "1"
Output Voltage	logic "0"
Shaft Torque	0.42 oz-in (30.6 g-cm)
Shaft Allowable Load	Overhung load 11.2 lb
Shaft Allowable Load	Thrust load 6.7 lbs
Cable Length	1.774 ft (0.5m)
Temperature Limits	14 to 158º F
Temperature Limits	(-10 to 70ºC)
Mounting	BASE OR FACE
Enclosure	ABS HOUSING
Weight	5.3 oz (150g)

Tech Specs

Test Equipment General Attributes
Unique Features	Quadrature rotary encoder in ABS housing with Dual (90° out of phase) 30 ppr digital output Maximum speed: 5000 rpm
Product Weight	0.33 LBS
Country of Origin	Japan
