Retro Reflective Sensor 1000 Hz Activating Frequency; Metal Housing

Sensing distance up to 23' (7 m)
Polarizing filter ensures reliable detection of highly-reflective objects
Bright power and signal LEDs with 360° visibility offer quick and simple troubleshooting, reducing maintenance time and costs
Bright red sender LED simplifies alignment and saves installation time
Reflector Included
High switching frequencies up to 1000 Hz
The flat and smooth lens reduces the collection of dust and dirt, ensuring reliable operation
Polarizing filter prevents false readings on reflective surfaces, reducing errors

View Product Details

List Price: $215.00

Your Price: $193.50

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Shimpo MCS-655M Retro Reflective Sensor 1000 Hz Activating Frequency; Metal Housing	Shimpo MCS-655P Retro Reflective Sensor 1000 Hz Activating Frequency; Plastic Housing
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Shimpo MCS-655M

Sensing distance up to 23' (7 m)
Polarizing filter ensures reliable detection of highly-reflective objects
Bright power and signal LEDs with 360° visibility offer quick and simple troubleshooting, reducing maintenance time and costs
Bright red sender LED simplifies alignment and saves installation time
Reflector Included

Retro Reflective Sensor 1000 Hz Activating Frequency; Metal Housing

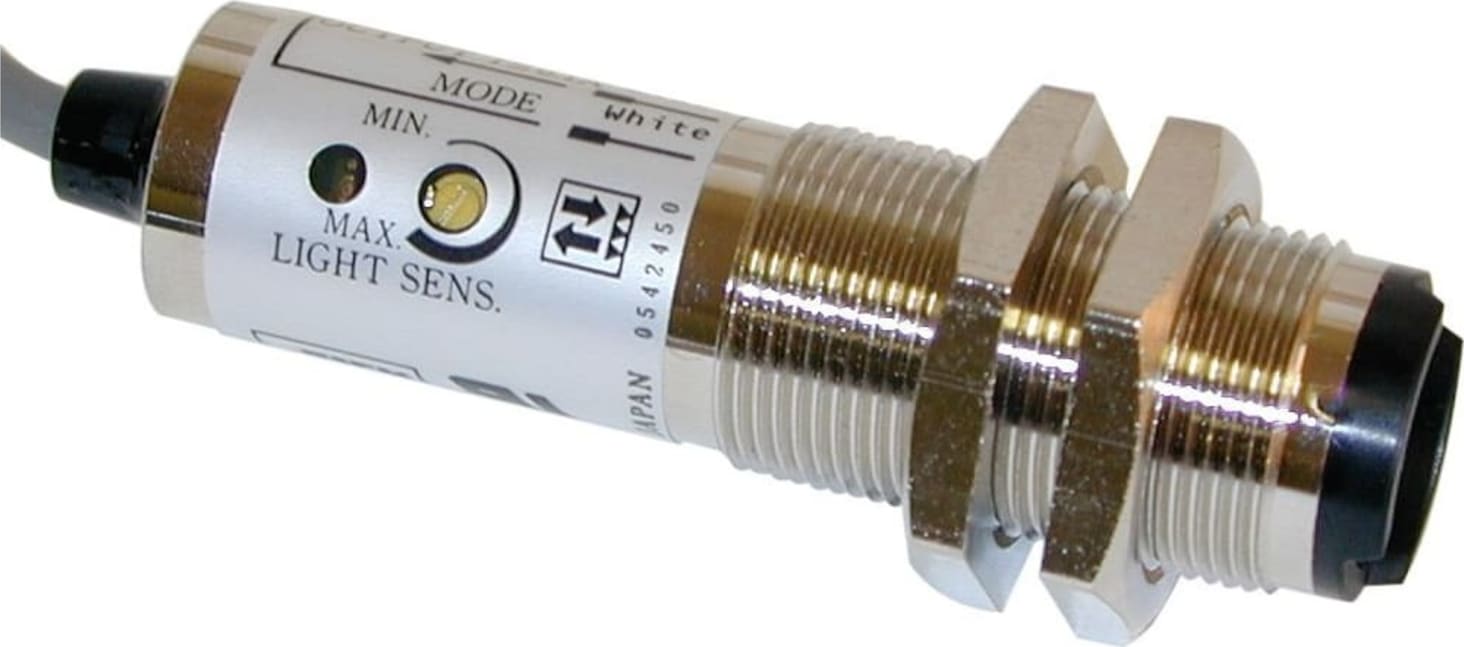

The Shimpo MCS-655M is a photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. For simplified installation purposes the integral LED aids in the MCS-655M model come in a robust metal housing with a connection cable, LED status indicator, sensitivity control, and mounting nuts.

Specifications
Model	Shimpo MCS-655M
Sensor/Detection Principle	Photoelectric retro-reflective sensor
Housing Length	2.5" (62.9 mm)
Housing Thread Diameter	M18 x 1
Sensing Range	2" – 23' (0.05 -7 m)
Light/Source	Visible red LED
Light Spot @ Distance 19.7' (6 m)	15.75" (400 mm)
Wave Length	645 nm
Sensitivity Adjustment	Turnable Potentiometer over 270°
Supply Voltage	10-30 V DC
Switching Output	NPN open collector, Light/dark-switching, Selectable via L/D control wire
Signal Voltage NPN HIGH / LOW	Approx. VS / < 1.8 V
Output Current Max.	100 mA
Response Time	≤ 0.5ms
Switching Frequency	1,000 Hz with light/dark ratio 1:1
Angle of Dispersion	Ca. 4.5°
Ambient Operating Temperature -	13 to 131 °F (-25 to 55 °C)
Housing Material	Nickel-plated brass
Optics Material	PMMA
Cable Material	PVC
Connection Type	Cable, 4-wire, 6.6' (2 m)
Circuit Protection	Inputs and output reverse-polarity protected; outputs overcurrent and short-circuit protected
Weight	3.35oz (95 g)
Enclosure Rating	IP 67
Items Supplied	Fastening nuts (2 x), Reflector target, reflection tape
