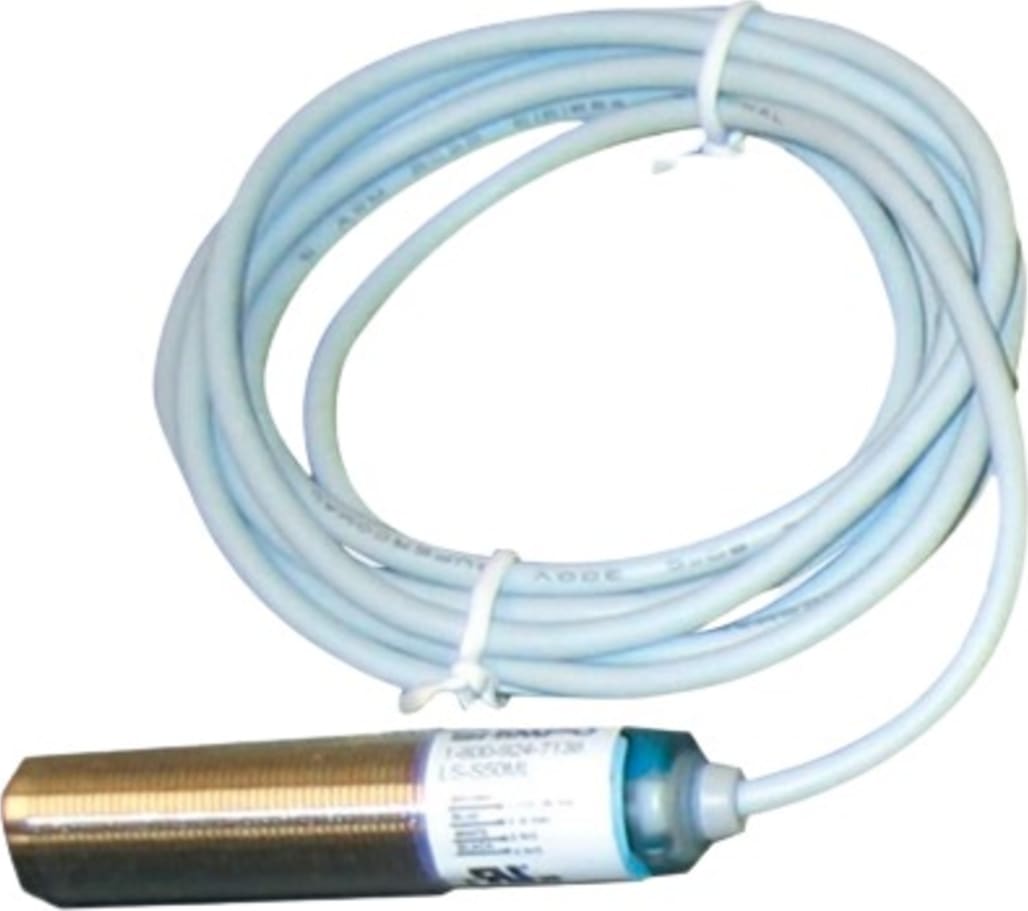

Shimpo LS-S50MLR - Diffused Laser Sensor for Shimpo Stroboscopes

Name: Shimpo LS-S50MLR - Diffused Laser Sensor for Shimpo Stroboscopes
Brand: Shimpo
SKU: ShimpoLS-S50MLR
Price: 315.00 USD
Availability: InStock

0 reviews | Model: Shimpo LS-S50MLR

Compare

Diffused Laser Sensor for Shimpo Stroboscopes

Diffused Laser Sensor (diffuse laser, NPN with cable) for Shimpo Stroboscopes
With NPN or PNP Outputs, and LED Indication
6' (1.8 m) cable Length

View Product Details

List Price: $350.00

Your Price: $315.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Power Supply	10 - 30 VDC (limit values)
Ripple	2 Vpp max.
Current consumption (output current excluded)	35 mA max.
Outputs	N.O. and N.C. NPN (short circuit protection)
Output current	100 mA max
Output saturation voltage	2 V max.
Response time	333 µs
Switching frequency	1, 5 kHz
Indicators	Output LED: yellow Power on LED: green
Setting	Sensitivity trimmer
Operating Mode	Light mode on N.O. Dark mode on N.C. (mod C01)
Operating temperature	-10°C - +50°C
Storage temperature	-25°C - +70°C
Electrical shock protection	Class 2
Operating distance (typical values)	0 - 35 cm
Emission type	Red laser: Class 1 EN 60825-1 (1994) Class II CDRH21 CFR PART 1040.10 Max power = 1 mW Pulse = 4.5 µs λ = 630 - 680 nm Frequency = 25 kHz
Ambient light rejection	According to EN 60947-5-2
Vibrations	0.5 mm amplitude, 10 - 55 Hz frequency, for every axis (EN60068-2-6)
Shock resistance	11 ms (30 g) 6 shock for every axis (EN60068-2-27)
Housing material	Nickel plated brass
Lens material	PMMA
Mechanical protection	IP67 (type 1 enclosure)
Connections	2 m cable Ø 4 mm M12 - 4 pole connector
Weight	110 g max. cable vers. 60 g max connector vers.
