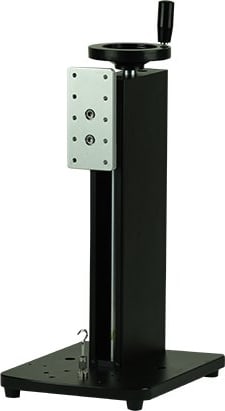

Shimpo FGS-250W Test Stand

Name: Shimpo FGS-250W Test Stand
Brand: Shimpo
SKU: ShimpoFGS-250W
Price: 445.50 USD
Availability: InStock

0 reviews | Model: Shimpo FGS-250W

Compare

Hand Wheel Operated Test Stand, 250 lb (125 kg) Capacity, Vertical or Horizontal Operation

Flexible Vertical or Horizontal operation
Compact footprint & lightweight enables usage in most locations
Fine movement from the top-mounted wheel aids in precision testing
250 lbf (125 kg) maximum testing capacity
Digital Scale kit available for high resolution movement recording
Optional Tensile Frame Kit extends movement stroke to over 10 inches

View Product Details

List Price: $495.00

Your Price: $445.50

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Shimpo FGS-250W Hand Wheel Operated Test Stand, 250 lb (125 kg) Capacity, Vertical or Hori ...	Shimpo FGS-100H Hand Wheel Operated Test Stand, 220 lb (100 kg) Capacity	Shimpo FGS-100L Lever Operated Test Stand, 220 lb (100 kg) Capacity	Shimpo FGS-50S Lever Operated Test Stand, 50 lb (22 kg) Capacity	Shimpo FGS-1000H Hand Wheel Operated Test Stand, 1000 lb (500 kg) Capacity
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Shimpo FGS-250W Accessories

Choose a Category

General Accessories
Test Stands

for the Shimpo FGS-250W

Shimpo FG-10TJM6 Thread Adapter, 10/32 UNF (FEM) to M6 (MALE)

Catalog: FG-10TJM6

(0)

In Stock!

Add to Cart

Shimpo FG-CLV10B Clevis Grip, for Use on Test Stand Base, 500 lb (225 kg) Max. Capacity

Catalog: FG-CLV10B

(0)

In Stock!

Add to Cart

Shimpo FG-FLM50B 2 inch (50 mm) Wide Film Grip, Bottom, 100 lb (50 kg) Max. Capacity

Catalog: FG-FLM50B

(0)

In Stock!

Add to Cart

Shimpo FG-M10CLV10U Clevis Grip, M10 Thread, 500 lb (225 kg) Max. Capacity

Catalog: FG-M10CLV10U

(0)

In Stock!

Add to Cart

Shimpo FG-M10COMP100U 4 inch (100 mm) Diameter Compression Plate, M10 Thread, 200 lb...

Catalog: FG-M10COMP100U

(0)

In Stock!

Add to Cart

Shimpo FG-M10COMP50U 2 inch (50 mm) Diameter Compression Plate, M10 Thread, 200 lb...

Catalog: FG-M10COMP50U

(0)

In Stock!

Add to Cart

Shimpo FG-M10TJ5/16 Metric 10 Female to 5/16 Male Thread Adapter

Catalog: FG-M10TJ5/16

(0)

In Stock!

Add to Cart

Shimpo FG-M10TM6 Thread Adapter, M10 (Female) to M6 (Male)

Catalog: FG-M10TM6

(0)

In Stock!

Add to Cart

Shimpo FG-M10TWN500U Cord/Twine Grip, M10 Thread - Upper, 500 lb (225 kg) Max. Capacity

Catalog: FG-M10TWN500U

(0)

In Stock!

Add to Cart

Shimpo FG-M10TWN500UB Cord/Twine Grip, M10 Thread - Upper and Lower, 500 lb (225 kg)...

Catalog: FG-M10TWN500UB

(0)

In Stock!

Add to Cart

Shimpo FG-M10WDG500U High Capacity Wedge Grip, M10 Thread, 500 lb (225 kg) Max. Capacity

Catalog: FG-M10WDG500U

(0)

In Stock!

Add to Cart

Shimpo FG-M4TJ10 Thread Adapter, M4 (FEM) to 10/32 UNF (MALE)

Catalog: FG-M4TJ10

(0)

In Stock!

Add to Cart

Shimpo FG-M4TM6 Thread Adapter, M4 (Female) to M6 (Male)

Catalog: FG-M4TM6

(0)

In Stock!

Add to Cart

Shimpo FG-M6COMP100U 4 inch (100 mm) Diameter Compression Plate, M6 Thread

Catalog: FG-M6COMP100U

(0)

In Stock!

Add to Cart

Shimpo FG-M6COMP50U 2 inch (50 mm) Diameter Compression Plate, M6 Thread

Catalog: FG-M6COMP50U

(0)

In Stock!

Add to Cart

Shimpo FG-M6FLM20 20 mm Wide Film Frip, M6 Thread, 100 lb (50 kg) Max. Capacity

Catalog: FG-M6FLM20

(0)

In Stock!

Add to Cart

Shimpo FG-M6FPG3 3 mm Fine Point Grip, M6 Thread, 22 lb (11 kg) Max. Capacity

Catalog: FG-M6FPG3

(0)

In Stock!

Add to Cart

Shimpo FG-M6FPG8 8 mm Fine Point Grip, M6 Thread, 33 lb (15 kg) Max. Capacity

Catalog: FG-M6FPG8

(0)

In Stock!

Add to Cart

Shimpo FG-M6JAC5U Jacobs Chuck Grip, M6 Thread, 100 lb (50 kg) Max. Capacity

Catalog: FG-M6JAC5U

(0)

In Stock!

Add to Cart

Shimpo FG-M6PIN05 0.5 mm Pin Head Grip, M6 Thread, 22 lb (11 kg) Max. Capacity

Catalog: FG-M6PIN05

(0)

In Stock!

Add to Cart

Shimpo FG-M6PIN1 1 mm Pin Head Grip, M6 Thread, 22 lb (11 kg) Max. Capacity

Catalog: FG-M6PIN1

(0)

In Stock!

Add to Cart

Shimpo FG-M6PIN2 2 mm Pin Head Grip, M6 Thread, 22 lb (11 kg) Max. Capacity

Catalog: FG-M6PIN2

(0)

In Stock!

Add to Cart

Shimpo FG-M6SPO10U Spool Grip, M6 Thread, 100 lb (50 kg) Max. Capacity

Catalog: FG-M6SPO10U

(0)

In Stock!

Add to Cart

Shimpo FG-M6TAP30U 30 mm Tape Grip, M6 Thread, 100 lb (50 kg) Max. Capacity

Catalog: FG-M6TAP30U

(0)

In Stock!

Add to Cart

Shimpo FG-M6TJ10 Thread Adapter, M6 (FEM) to 10/32 UNF (MALE)

Catalog: FG-M6TJ10

(0)

In Stock!

Add to Cart

Shimpo FG-M6TM10 Thread Adapter, M6 (FEM) to M10 (MALE)

Catalog: FG-M6TM10

(0)

In Stock!

Add to Cart

Shimpo FG-M6WDG50U Small Capacity Wedge Grip, M6 Thread, 100 lb (50 kg) Max. Capacity

Catalog: FG-M6WDG50U

(0)

In Stock!

Add to Cart

Shimpo FGS-ACC Tool Accesory Kit for Test Stands

Catalog: FGS-ACC

(0)

In Stock!

Add to Cart

Shimpo FG-FAB80B Fabric Grip, Bottom, 500 lbs (225 kg) Max. Capacity

Catalog: FG-FAB80B

(0)

In Stock!

Add to Cart

Shimpo FG-FTG20B Flat Chuck Grip, Bottom, 187 lbs (85 kg) Max. Capacity

Catalog: FG-FTG20B

(0)

In Stock!

Add to Cart

Shimpo FG-JAC5B Jacobs Chuck Grip, Bottom, 500 lbs (225 kg) Max. Capacity

Catalog: FG-JAC5B

(0)

In Stock!

Add to Cart

Shimpo FGS-250W-DSK Digital Length Scale for Use with FGS-250W Test Stands

Catalog: FGS-250W-DSK

(0)

In Stock!

Add to Cart

Shimpo FGS-250W-TFK Tensile Frame Kit for FGS-250W

Catalog: FGS-250W-TFK

(0)

In Stock!

Add to Cart

Shimpo FG-SPO10B Spool Grip for Use with Test Stand Base, 100 lbs (50 kg) Max. Capacity

Catalog: FG-SPO10B

(0)

In Stock!

Add to Cart

Shimpo FG-TAP30B 1.2-inch (30 mm) Tape Grip, for Use with Test Stand Base, 100 lbs (50...

Catalog: FG-TAP30B

(0)

In Stock!

Add to Cart

Shimpo FG-TEN7B Tensile Grip, for Use with Test Stand Base, 500 lbs (250 kg) Max. Capacity

Catalog: FG-TEN7B

(0)

In Stock!

Add to Cart

Shimpo FG-WDG50B Small Capacity Wedge Grip, for Use with Test Stand Base, 100 lb (50...

Catalog: FG-WDG50B

(1)

In Stock!

Add to Cart

The Series FGS-250W Manual Hand Wheel Operated Test Stand

The FGS-250W is specifically designed for tensile and compressive force testing and destructive or failure testing for research applications in a multitude of industries.The FGS-250W movement is created from a trapezoidal screw drive with integral nut. Combined with its top-mounted wheel that smoothly turns with minimal effort, fine, stable resolution is achieved during operation.

The FGS-250W offers dual functionality by being able to be used in either the vertical or horizontal positions with no added equipment required. Simply lay unit on its back and level with the adjustment screw and you now can run horizontal tests. The FGS-250W’s compact footprint and lightweight frame enables ease of movement and usage in a myriad of locations.

Optional accessories include a Digital Scale which accurately tracks distance movement and a Tensile Frame adapter kit which enables extended clearance for tensile tests. Shimpo offers a variety of grips and fixtures to create the required set-up for your test parameters. The FGS-250W’s maximum 250 lbf (125 kgf) capacity combined with the precision wheel movement operation yields an ideal manual test stand for a full range of lab or production line testing applications.

FGS-250W Dimensions

Capacity	Up to 250 lbf (125 kg); 143 lbf (65 kg) with optional Tensile frame
Travel	0.12˝ (3 mm)/turn
Stroke	9˝ (230 mm) max.; 10.24˝ (260 mm) max. with Tensile Frame kit.
Dimensions	9.8 x 7.7 x 17.5˝ (250 x 196 x 445 mm)
Weight	15.4 lb (7 kg)
Warranty	1-Year
Packing List	Test Stand (1), Handle of Hand Wheel (1), Adapter Screw (M6) (1), Screw M4 x 16 (for force gauge) (6)

Test Equipment General Attributes
Unique Features	Flexible Vertical or Horizontal operation Compact footprint & lightweight enables usage in most locations Fine movement from the top-mounted wheel aids in precision testing 250 lbf (125 kg) maximum testing capacity
Warranty	1 YEARS
Product Weight	15.4 LBS
Product Height	17.5 IN
Product Length	9.8 IN
Product Width	7.7 IN
HTS/Schedule B Number	9031.90.0000
ECCN Number	EAR99
Country of Origin	China

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

No, the FGS-250W is not compatible with other manufacturer products. In the future, Shimpo will be releasing an universal adapter.

I found this helpful (0)

Inaccurate? (0)

Answered by Anonymous
