| Model |

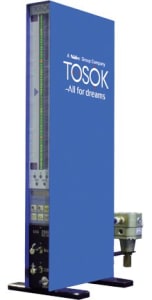

Shimpo CAG-2000 |
| Input |
1 air channel; Optional 2 air channels |
| Measuring range μm (mm) |
10 (0.0100), 20 (0.0200), 50 (0.0500), 100 (0.100), 200 (0.200) |
| Resolution in μm (mm) |
0.01 (0.0001), 0.2 (0.0002), 0.5, (0.0005), 1 (0.001), 2 (0.002) |
| Shift Range |
±1000% (full scale) |
| Display |
| Bar graph: 101 segment 3 color with Green (OK), Red (No Go) |
| Measurement Values: 7 digits plus decimal point |
| Auto Mastering Range |
Zero position: ±50% (full scale) |
| Sensitivity: ±20% (full scale) |
| Power Requirement |
85 to 264 VAC, 50/60 Hz 100-VAC |
| Power Supply Capacity |
30 VA |
| Air Supply Pressure |
28.4 psi (196 kPa) |
| Source Pressure |
43.5 psi (300 kPa) to 101.5 psi (700 kPa) |
| Air Supply Volume |
1 CH: 106 cfh (50 l/min) 2 CH: 212 cfh (100 l/min) |
| Operating Temperature |
32 to 113°F (0 to 45°C) |
| Dimensions |
2° wide x 19° high x 8° deep (50 × 480 × 200 mm) |
| Weight |
8.8 lb (4 kg) |
| Warranty |
1-Year |
| Item |
Specification |
Remarks |
| Input |
1 air channel |
|
| Air supply pressure |
0.196 MPa |
Source pressure: 0.3 MPa or more |
| Measurement item |
1 |
|
| Measuring range (mm) |
| CAG2000 |
0.0200, 0.0500, 0.100, 0.200 |
|
| CAG2000E |
0.0250, 0.0500, 0.100, 0.200 |
|
| CAG2000H |
0.0100, 0.0200, 0.0500, 0.1000 |
|
| Resolution (mm) |
| CAG2000 |
0.0002, 0.0005, 0.001, 0.002 |
|
| CAG2000E |
0.00025, 0.0005, 0.001, 0.002 |
|
| CAG2000H |
0.0001, 0.0002, 0.0005, 0.0010 |
|
| Bargraph display |
101 dots (red, green, orange, light/dark) |
|
| Bargraph display method |
Bar (OK: Green, NG: Red), Dots (Max/Min) |
|
| Range display |
2 digits (numbers), 2 places |
|
| Multifunctional display |
8 digits (numbers/alphabet)
Measured value, set item, set value, and error display |
|
| Shift range |
±1000% (full scale) |
From Version 2.60 |
| Actual dimension display |
000.0000 mm (7 digits + decimal point) |
|
| Judgment result |
±NG and OK |
|
| Judgment result display |
Bargraph display (color), judgment LEDs Multifunctional display |
|
| Automatic mastering |
Minimum and maximum masters |
|
| Automatic mastering range |
Zero position: ±50% (full scale)
Sensitivity: ±20% (full scale) |
|
| Number of setting programs |
10 |
|
| Power supply voltage and frequency |
85 to 264 VAC, 50/60 Hz |
100-VAC power cable supplied as accessory |
| Power supply capacity |
30 VA |
|
| Dimensions and mass |
50 mm wide × 480 mm high × 200 mm deep, 4 kg |
|
| Operating temperature |
0 to 45°C |
|
| Standard |
| External input |
4 (measure, reset, maximum master, and minimum master) |
External buttons or foot switch |
| Serial output |
1 (printer or personal computer) |
RS232C |
| Optional |
| Printer output |
1 (DP1) |
Digimatic |
| Judgment result output |
–NG, OK, +NG (12/24 VDC) |
|
| Rank output |
–NG,OK1 to OK14, +NG (12/24 VDC) |
Rank function combined use |
| BCD output |
1 (12/24 VDC) |
|
| Peak measurement function |
+PEAK, –PEAK,
TIR (= +PEAK – (–PEAK)),
TIR (= +PEAK – (–PEAK) /2) |
Based on measurement value change with auto measurement start function |
| Rank function |
99 ranks maximum |
OK range |
