• 4-Way digital manifold with rechargeable battery, temperature clamp probes (2x), vacuum probe, Flexible hoses (4x), and hard case
• Pressure working range: -1 to 55.2 bar
• Vacuum measurement range: 0 to 19.000 micron
• Can be controlled and managed remotely with the Seitron be cool mobile app
• Pre-configured parameters such as superheating and subcooling

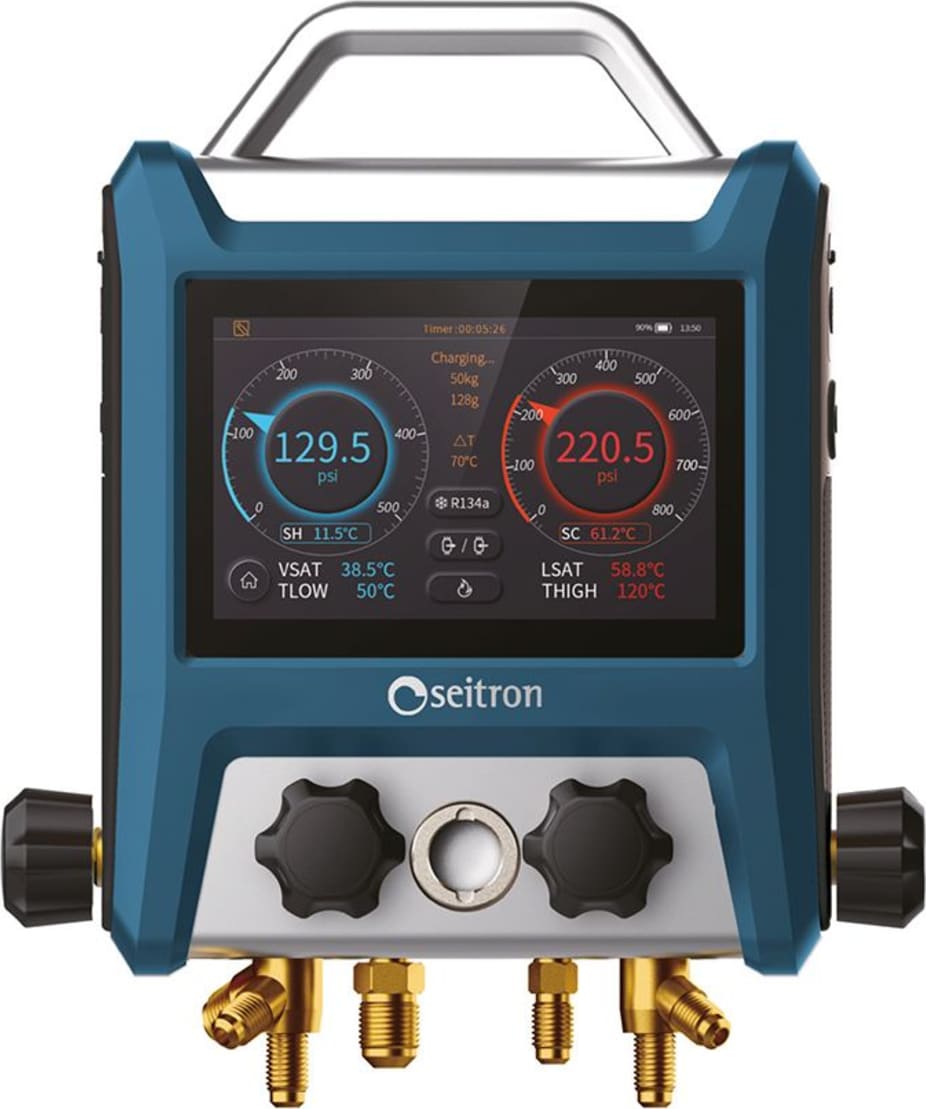

The Seitron BE COOL M4 is a digital manifold with four-way valve block, equipped with a rechargeable battery (5000mAh) and 5-inch, color touch display with intuitive and simple interface.

The execution of measurements on refrigeration and air conditioning systems and on heat pumps are facilitated by pre-configured parameters, such as superheating and subcooling, in addition to the possibility to reverse pressures on the instrument. Settable measurement units include psi, kg/cm2, cmHg, inHg, bar, kPa, and MPa. The BE COOL M4 can be remotely controlled and managed with the Seitron be cool mobile app.

• 4-Way digital manifold equipped with rechargeable battery
• Temperature clamp probes (2)
• Vacuum probe (with T-joint and bent joint)
• Flexible hoses (4)
• Portable hard case

The BE COOL M4 is ideal for commissioning, servicing and maintenance of refrigeration and air conditioning systems and heat pumps.

1. Clamp probe connector for high temperature side (with safety cap)

2. Clamp probe connector for low temperature side (with safety cap) or for vacuum gauge

3. USB type C interface (with safety cap)

4. Power On/Off button

5. High pressure control valve

6. Low pressure control valve

7. Metal handle

8. 5-inch color IPS capacitive touch screen display

9. Refrigerant gas flow control window

10. Low pressure side refrigerant gas pipeline interface (fitting 1/4 SAE)

11. High pressure side refrigerant gas pipeline interface (fitting 1/4 SAE)

12. Refrigerant gas loading interface (fitting 1/4 SAE)

13. System vacuum measurement interface (fitting 3/8 SAE)

14. Vacuum control valve

15. Load control valve

16. Supports for flexible hoses
