Sonic Belt & Pulley Tension Meter
When you use our Sonic Belt Tension Meter for belt tension readings, you will always receive accurate results.
Our meter measures belt tensioning by analyzing harmonic properties and by measuring the vibration frequency, you will be able to determine if your belt tension is correct.
Sonic Tension Meter

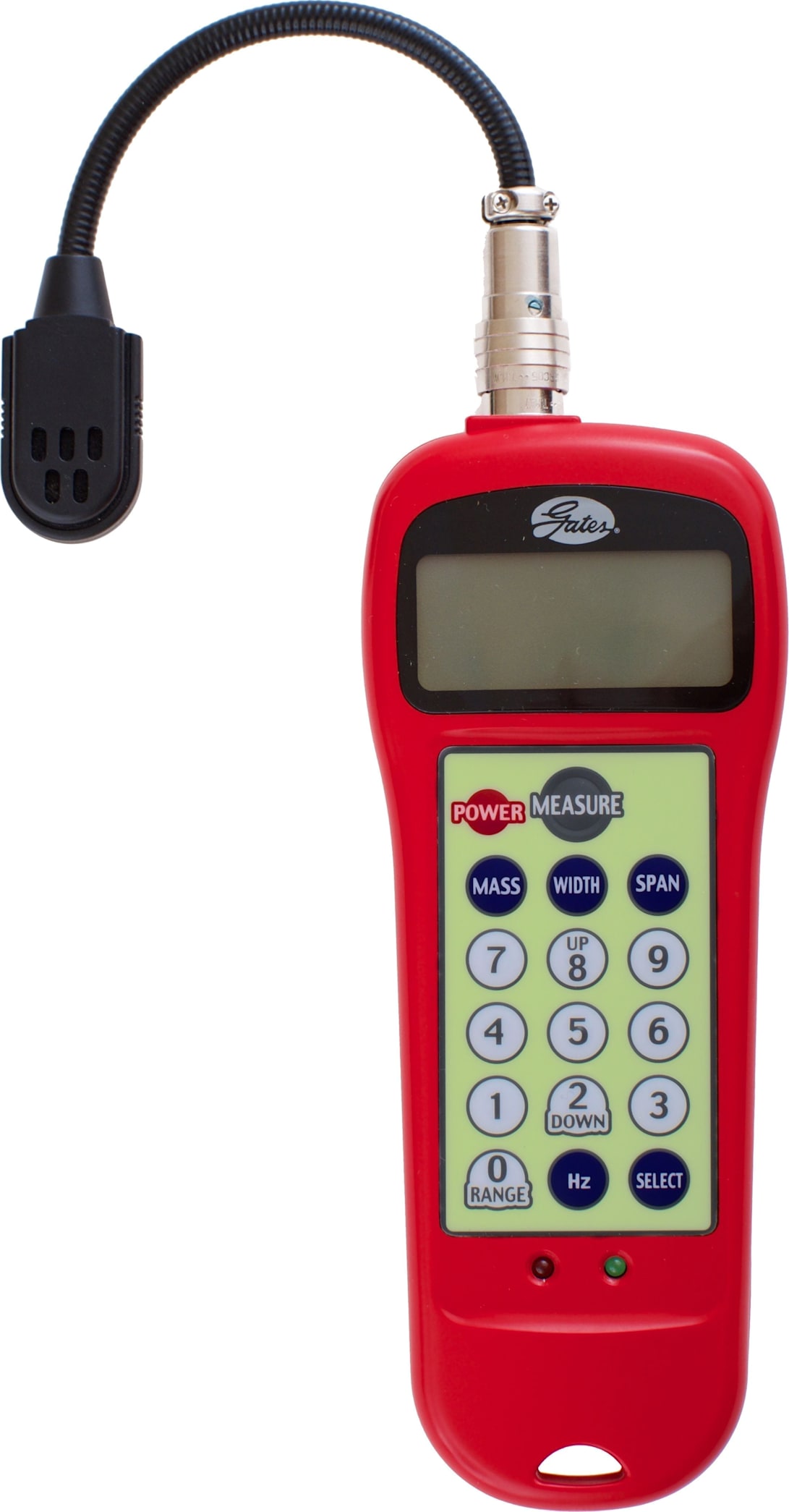

Unlike the force deflection method which involves applying force to the belt, the Gates Sonic Tension Meter measures belt tension by analyzing the harmonic characteristics of a vibrating belt. Belts, like strings, vibrate at a particular natural frequency based on mass and span length.
The Sonic Tension Meter can easily be operated by one person for fast, accurate readings on all types of synchronous belt drive systems and V-belt drives. Simply enter belt mass constant, belt width and span length* into the meter using the built-in keypad. Next, hold the meter sensor just above the belt and lightly strum belt to make it vibrate. Press “measure” button to obtain the reading as a frequency (as hertz) or as a force (pounds or newtons).
Use the standard cord sensor to reach inside cramped compartments where conventional measurements would be impossible. An optional flexible sensor can be bent and repositioned for convenient, one-hand operation. Use the optional inductive sensor to measure belt tensions in high-noise or windy environments.
*The ideal tension values, along with the belt mass constant, belt width and span length, can be found by entering drive parameters into Design Flex® Pro™ or Design Flex Web™
This device works on any type of synchronous belt drive system, including V-belt drives.
Anyone can operate the Sonic Belt Tension Meter by inputting the belt width and length, and then holding the sensor near the belt to measure its vibration.
It can measure a frequency range of anywhere from 10-5000 hertz, and has 20 memory registers for belt constants. To make things simple, it has a clear LCD display screen with a black light.
