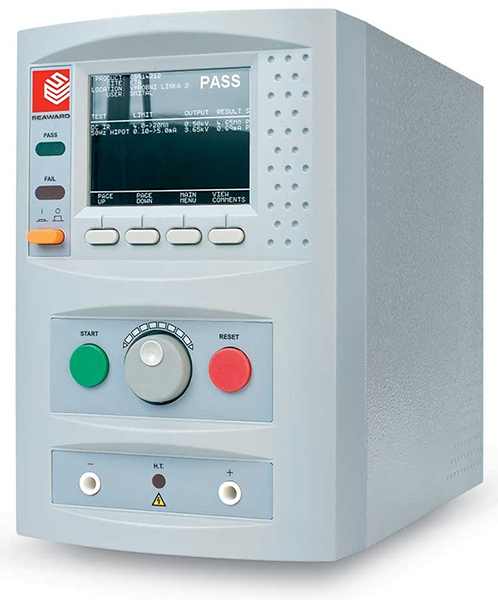

Seaward H102 ClareHAL 102 Advanced Multi-Function Safety Tester

Name: Seaward H102 ClareHAL 102 Advanced Multi-Function Safety Tester
Brand: Seaward
SKU: SeawardH102
Price: 4395.00 USD
Availability: InStock

0 reviews | Catalog: H102 | Model: Seaward H102

Seaward ClareHAL Electrical Safety Tester

Compare

Advanced Multi-Function Safety Tester

Advanced Multi-Function Safety Tester
Function/Power/Load/Leakage/ Touch current test
Flash/Hipot/Dielectric Strength test
Ground/Earth Bond test at 40A
Fast testing - production efficiency savings
Compact unit
Tests in accordance with IEC/EN/UL International Standards
Isolated test outputs on Flash/Hipot/Dielectric Strength/Insulation test to aid with EN 50191 and for safety
Arc Detect
Regulated outputs on Flash/Hipot/Dielectric Strength, Insulation and Ground/Earth Bond tests - independent of supply fluctuations
PLC control. Simple command protocol for external control via communications port
Visual and audible pass/fail indication
Operation from 115 and 230 V (nom.), 50 or 60 Hz mains supply
Barcode scanner support
Storage of test results
Large graphical display
Selectable 50 or 60 Hz output frequency for AC tests

View Product Details

List Price: $4,395.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Seaward H102

Seaward 194A922 Barcode Scanner

Catalog: 194A922

(0)

In Stock!

Add to Cart

Seaward DCS317 Detonation Guard Switch

Catalog: DCS317

(0)

In Stock!

Add to Cart

Seaward ClareHal Advanced Multi-Function Safety Tester
Series

Advanced Multi-Function Safety Tester
Improving productivity
Increasing efficiency
Stores results automatically
Custom Pass/Fail levels
Safety guard operation
IEC/EN International Standards compliance
Fast testing

Advance Multi-Function Safety Tester

COMPLIANCE – Standards and Directives

Validation testing is essential for manufacturers to ensure compliance with legislation for their products including CE marking. Electrical safety testing specialists Seaward have produced the HAL series that performs all of the applicable tests needed for demonstrating compliance with EU Directives, International, European and UK standards in one convenient package. The ClareHAL 104 will help you meet your legal obligations.

All basic tests, as specified in widely used product and safety standards, are included:

Earth Bond/ Ground Bond testing
DC Insulation Testing
AC/DC Flash/ Hipot/Dielectric withstand testing
Functional/ Run testing
Touch/Leakage Current testing

Testing - General

The unit can perform either continuous or timed tests, except the Earth/ Ground bond test which is timed. If during the Hipot test, the arc detect level is exceeded the test will be halted and the output removed. A beeper is present to let the user know that a test fail condition has occurred. The Reset button will clear the condition back to a default screen. If the programmed limit is exceeded at any time during a test, the unit will display the appropriate test fail message. If the test fails the unit will light the red fail indicator, and sound the audible alarm. If hazardous voltages (50V AC or DC) are present on the outputs of the unit, this will be indicated by a red warning indicator and a “lightning strike” icon will blink on the display. Also the HT present LED indicator will illuminate adjacent to the test output sockets. Auto discharge - at the end of Insulation and Hipot testing test all capacitances and inductances will be automatically discharged. The tester would normally be used with a test fixture or guard system and no tests can be performed without positive confirmation that the guard is in place. If the guard is opened or the Reset button is pressed at any time, the test will be halted and an appropriate test fail message will be displayed.

3 Test Methods Using the ClareHAL

Automatic Mode
In automatic mode complete test sequences are stored in the memory and new sequences can programmed using testcodes. Up to 5 tests can be linked into 1 sequence, all tests are timed and all results are stored in memory.

Manual Mode
Manual mode provides a quick, simple route to tests and is intended for use in the laboratory, repair or re-test environments where ease of use and quick repeatable tests are are paramount.

Direct PC Control
Simple command protocols are incorporated to enable the product to be controlled directly by a PC or other device connected to the external control port.

Specifications: ClareHAL 104, 103, 102, 101, 100
Power Requirement
AC Voltage	Selectable 115 or 230V AC RMS
Frequency	50/60 Hz
Mechanical Specification
Size (HxWxL)	300mm-200mm-370mm
Weight	15kg Approx
Ground Bond Test – 104, 103, 100
Test Voltage	Nominal 6V AC
Frequency	50 or 60 Hz (Independent of supply)
Display Range and Accuracy	0-1500mΩ ±2% ±5 Counts
Display Resolution	1 mΩ
Compliance Test Ranges:	Current/Load Resistance/Time 5 A-1000mΩ - Continuous 10 A-500mΩ - Continuous 25 A-200 mΩ - Continuous 30 A-150 mΩ - 60 secs 40A-100 mΩ - 60 secs Settable Output Current Range 0.1A-40.0A Selectable Range of Pass/Fail Levels 0-1500mΩ
Insulation Resistance Test – 104, 103, 102, 101
DC Output Voltage	0.10kV-6.00kV (10V/Step when manually adjusted) (50V/Step in test sequence program)
Display Range	0.01MΩ-500MΩ
Display Range / Accuracy	0.03MΩ-350MΩ ± 5% ± 5 Counts 350MΩ-500MΩ Indication Only
Display Resolution	0.01MΩ
Pass/Fail Level	0.00MΩ-500.0MΩ
AC Flash / Hipot Test – 104, 103, 102, 101
Programmable Voltage Ranges	0.10kV-5.00kV (10V/Step when manually adjusted) (50V/Step in test sequence program)
Frequency Independent of Supply	50 or 60 Hz
Voltage Display Range and Accuracy	0.10kV-5.00kV ±1% ± 5 Counts
Voltage Display Resolution	0.01kV
Current Display Range and Accuracy	0.01mA-20.00mA ±1% ± 5 Counts
Current Display Resolution	0.01mA
Selectable Range of Pass/Fail Levels	0.01mA-20.00mA
Maximum Current Output	20.00mA @5kV
Optional Arc Detection	9 Levels
DC Flash / Hipot Test – 104, 103, 102, 101
Programmable Voltage Range	0.10kV-6.00kV (10V/Step when manually adjusted) (50V/Step in test sequence program)
Voltage Display Range and Accuracy	0.10 kV-6.00kV ±1% ± 5 Counts
Voltage Display Resolution	0.01kV
Current Display Range and Accuracy	0.01mA-10.00mA ±1% ± 5 Counts
Current Display Resolution	0.01mA
Selectable Range of Pass/Fail Levels	0.01mA-10.00mA
Maximum Current Output	10.00mA
Optional Arc Detection	9 Levels
Power and Leakage Test – 104 only
Power Output Rating
Test Voltage	110V – 230V AC 20A nominal (Vin-Vout)
Maximum Power Output	Up to 5.0kVA (dependant on mains supply rating)
Output Power Measurement
Single Phase Power Measurement
Display Range and Accuracy	0.02kVA-5.00kVA ±2% ±0.02kVA
Selectable Range of Pass/Fail Levels	0.001kVA-5.000kVA
Single Phase Power Factor Measurement
Display Range and Accuracy	Ratio 0.000 -1.000 ± 0.030
Selectable Range of Pass/Fail Levels	0.000-1.000
Leakage Current Measurement
Display Range and Accuracy	0.10mA-20.00 mA ± 1% ±5 Counts
Display Resolution	0.01mA
Selectable Range of Pass/Fail Levels	0.01mA-20mA
Touch Current Measurement
Display Range and Accuracy	0.02mA - 5.00 mA ± 1% ±5 Counts
Display Resolution	0.01mA
Selectable Range of Pass/Fail Levels	0.02mA-5.00mA
Measuring Device	IEC/EN 60990 Fig 4 (IEC/EN 60990 Fig 3 or Fig 5 Upon Request)

ClareHAL Series Comparison
Features	100	101	102	103	104
Earth/Ground Bond	•			•	•
AC Flash/Hipot		•	•	•	•
DC Flash/Hipot		•	•	•	•
DC Insulation Resistance		•	•	•	•
ARC Detection		•	•	•	•
Leakage					•
Load Power					•
Power Factor					•
Results Memory	•	•	•	•	•
Automation Option	•	•	•	•	•
Barcode scanner/printer Option	•	•	•	•	•
Internal scanner			•

Safety Testing / Surge Testing/Hipot Tester Template
Test Type Hipot	AC, DC, IR
Max Trip Current AC Test	20 mA
Max Trip Current DC Test	10 mA
Programmable (hipot)	Yes
Insulation Resistance Test	Yes
IR Test Voltage	10 V, 50 V
Arc Detection	Yes
Maximum Insulation Resistance	500 M Ohms
Test Equipment General Attributes
Warranty	1 YEARS
Product Weight	33 LBS
Product Height	11.81 IN
Product Length	14.56 IN
Product Width	7.87 IN
Country of Origin	United Kingdom
