Seaward 369A910 PowerCheck 1557

Name: Seaward 369A910 PowerCheck 1557
Brand: Seaward
SKU: Seaward369A910
Price: 666.60 USD
Availability: InStock

0 reviews | Catalog: 369A910 | Model: Seaward 369A910

Compare

Powercheck 1557 is the world's first Checkbox to verify the calibration of both PAT and Installation Test Equipment

PAT and Installation Verification Unit
Does not trip RCD circuits
NICEIC & IET compliant
Tests to BS7671 / EN 61577 / IEE Code of Practice

View Product Details

List Price: $666.60

In Stock:

View Payment Options

Recommended for you

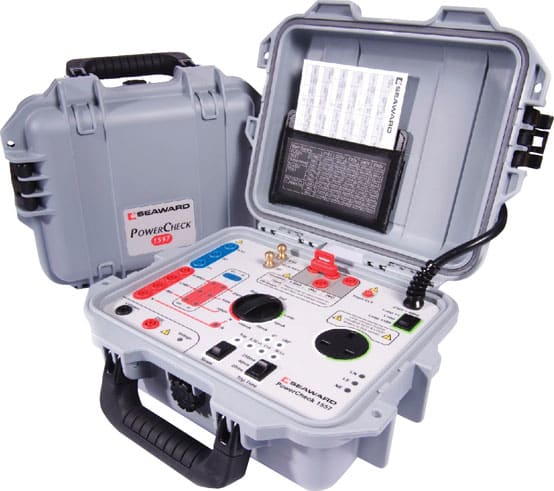

PowerCheck 1557

The PowerCheck 1557 is a comprehensive PAT and installation verification checkbox. It carries out ongoing performance checks to ensure accurate measurement between calibration intervals. Fully tests Earth Continuity, Insulation Resistance, RCD Trip Time, RCD Trip Current, Loop, PE Conductor Current, Touch Current and Flash tests.

It can be used on earth continuity or earth bond testers up to 25A and also verifies loop impedance or RCD testers on RCD protected circuits - without tripping the RCD. It tests to BS 7671, BS EN 61557, IET Onsite Guide and IEE Code of Practice. It has full instrument verification against all relevant standards and confirms performance between verifications (this is information required by NICEIC, ELECSA, Corgi and others).

Technical Specification
INSTALLATION TEST INSTRUMENTS
Earth Continuity Verification
Test current in	>200mA indication
Test voltage	4V < Un > 24V indication
Test resistances	0.5ohm and 2ohm
Insulation Resistance Verification
Open circuit test voltage	250V < Un < 375V indication 500V < Un < 750V indication 1000V < Un < 1500V indication
Test current In	>1mA into 1000ohm/V
Max test current	Ik <2mA
Test resistances	0.25Mohm, 0.5Mohm, 1.0Mohm
Earth Loop Verification
Test values	Loop, Loop+1ohm, Loop+180ohm
RCD Verification
Trip current	10mA, 30mA, 100mA
Trip Times	20ms, 40ms, 500ms
Test current multiplier	1/2rn, Irn and 5Irn verification
Voltage Verification
Test Voltage	240V AC rms test output
PAT FUNCTIONS
Earth continuity verification
Test resistances	0.2ohm and 2ohm
Insulation Resistance verification
Test resistances	500kohm, 1Mohm and 2Mohm
PE Conductor current
Test currents*	0.1mA, 0.25mA and 0.5mA
Flash Test current
Test currents*	0.5mA, 1mA and 1.5mA
ADDITIONAL INFORMATION
Power supply	230V AC ±10%
Dimensions / Weight	210mm x 145mm x 85mm / 1kg
*actual values are dependent upon mains supply voltage. Tabulated values for mains voltages of 210V to 250V are supplied with the instrument.
