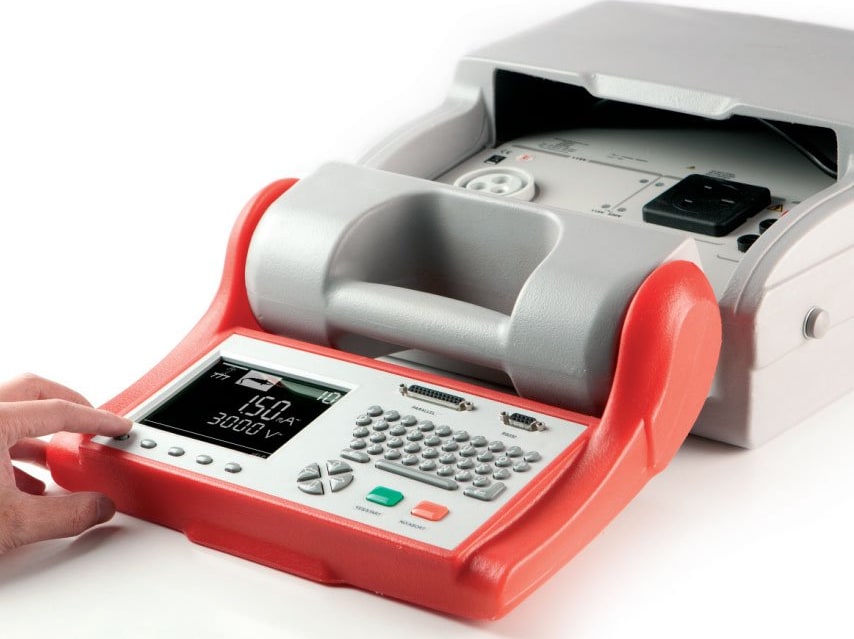

Seaward 323A910 Supernova Elite PATSolutions Kit

Name: Seaward 323A910 Supernova Elite PATSolutions Kit
Brand: Seaward
SKU: Seaward323A910
Price: 3495.00 USD
Availability: InStock

0 reviews | Catalog: 323A910 | Model: Seaward 323A910

Compare

Supernova Elite PATSolutions Kit

True dual voltage for testing both 230V and 110V appliances, whether the tester is powered by a 230V or 110V supply
Rugged enclosure can withstand the harshest of environments
Large, easy to read display
Proven to be extremely reliable, accurate and hardworking
Ideal For
- Testing 110V tools and appliances
- Testing on a 110V or 230V supply
- Testing equipment that requires a flash test e.g. hire equipment

View Product Details

List Price: $3,495.00

In Stock:

View Payment Options

Recommended for you

Accessories

Choose a Category

General Accessories

for the Seaward 323A910

Seaward 194A922 Barcode Scanner

Catalog: 194A922

(0)

In Stock!

Add to Cart

Seaward 312A916 Desk Test And 39;n And 39; Tag Printer

Catalog: 312A916

(0)

In Stock!

Add to Cart

Seaward 323A910 Supernova Elite PAT Solutions Kit

True dual voltage for testing both 230V and 110V appliances, whether the tester is powered by a 230V or 110V supply
Rugged enclosure can withstand the harshest of environments
Large, easy to read display
Proven to be extremely reliable, accurate and hardworking

A comprehensive, dual voltage PAT with flash test

The Supernova Elite is a ruggedly put together, comprehensive tester that you’ll find indispensable. It will carry out a wide range of tests, including flash testing and RCD trip time. It is the only PAT tester on the market to have true dual voltage capability, meaning it can be powered by 230V or 110V supply whilst carrying out either 230V or 110V tests.

The Supernova Elite is packed with incredibly useful features, like a 5000 test record memory, storing locations, user, test status and date which can be downloaded to a PC. It has a serial port for the connection of a barcode reader, printer or both if using our recommended adaptor.

A large LCD display and clear walk-through instructions for each test make it easier to use and it downloads quickly. The QWERTY keyboard makes entering asset information straightforward.

Asset management is supported by our PATGuard 3 Elite software.

Supplied as standard with earth lead, 110V adaptor, dual serial port adaptor, 9 way computer lead and flash probe.

The Keyboard

Item Number	Part
1	LCD
2	Alpha-numeric Keyboard
3	Cursor Keys
4	Green / Red Keys
5	Fast keys
6	RS232 port
7	Parallel Port

Technical Specification
PAT TESTS
Earth Continuity
Test Currents	25A, 10A, 4A, AC
Display Range	0.00ohms - 19.99ohms
Pass Value	User Defined
Measurement Technique	4 Wire Measurement, Floating Earth
Earth Screen Continuity
Test Current	100mA
Display Range	0.00ohms - 19.99ohms
Pass Value	User Defined
Measurement Technique	4 Wire Measurement, Floating Earth
Insulation Resistance
Test Voltage	250V, 500V DC
Display Range	0.1Mohms - 100Mohms
Pass Value	User Defined
Flash
Test Voltage	Class I 1500V mns
Test Voltage	Class II 3000V rms
Display Range	0.05mA- 2.5mA
Pass Value	User Defined
RCD Trip Time Test
Test Current	30mA
Display Range	0ms - 500ms
Pass Value	200ms
Protective Conductor Current
Test Voltage	230V/110V
Display Range	0.1mA - 10mA
Pass Value	User Defined
Touch Current
Test Voltage	230V/110V User Selectable
Display Range	0.1mA - 2.0mA
Pass Value	User Defined
Substitute Leakage
Test Voltage	40V AC Nominal
Display Range	0.1mA - 2.0mA
Pass Value	User Defined
Load Test
Display Range	0kVA - 4.2kVA
IEC Lead Polarity
Tests Performed	Live/Neutral Continuity and Polarity
ADDITIONAL INFORMATION
Operating Voltage
Voltage Range	103V - 126V, 207V - 253V, 45Hz - 65Hz
Weight / Dimensions
Weight & Dimensions	9.5Kg/400cm (l) x 32cm (w) x 16cm (d)
Interfaces
Keyboard	QWERTY
Display graphic	LCD - 1/4 VGA (320x240 pixels)
Connectivity	RS232 Port Connection Parallel Port Connection
