Seaward POWERTEST1557 Multi function Installation Tester

Name: Seaward POWERTEST1557 Multi function Installation Tester
Brand: Seaward
SKU: SeawardPOWERTEST1557
Price: 999.00 USD
Availability: InStock

0 reviews | Catalog: SEAWARDPOWERTEST1557 | Model: Seaward POWERTEST1557

Compare

POWERTEST 1557

Loop test in 5 seconds
Integral probe makes reading results easy
Auto RCD test
Comprehensive testing
Unique cordless probe
Non-tripping loop
Smallest and lightest in its class
Makes testing a breeze as it allows you a free hand to hold your tester therefore you can view your results, as you’re testing
Measure loop impedance without tripping RCD's
It fits in the palm of your hand an d won’t weigh you down
2 Year Warranty

View Product Details

List Price: $999.00

In Stock:

View Payment Options

Recommended for you

Seaward PowerTest 1557 Multi function Installation Tester

Loop test in 5 seconds
Integral probe makes reading results easy
Auto RCD test
Comprehensive testing

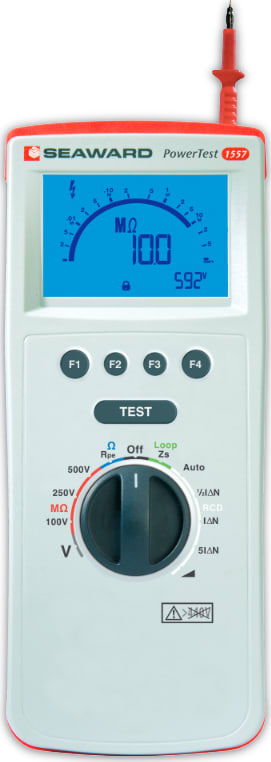

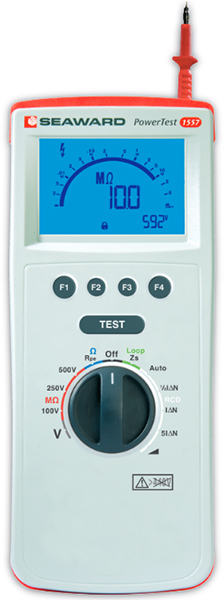

The PowerTest 1557 is a multi function installation tester with integral probe, allowing the instrument to be held and the results to be read at the same time.

The PowerTest 1557 is also very fast, performing earth loop, line loop, PFC and PSC tests with one press of a button in under 5 seconds. It's lightweight, handheld and battery powered.

(6) 1.5V cells LR6 type AA alkaline batteries
Test lead, 1.5M 13A UK plug to Red, Black, Green 4mm shrouded safety plugs
Alligator Clips: Red, black, green
Test lead, set 1.5M Red, Black, Green 4mm shrouded safety plugs to Red, Black, Green 4mm shrouded safety test probes
Red, cordless, 4mm shrouded safety test probe

Technical specification
Earth Continuity
Test Current	>200mA
Display Range	0.00ohms - 199ohms
Resolution	0.01ohms max
Test Lead	Compensation: 0.00ohms - 10.00ohms
Live Circuit Detection	Test inhibit if >30V detected
Insulation Resistance
Test Voltage	100V, 250V, 500V
Display Range	0.05Mohms - 199Mohms
Resolution	0.01Mohms maximum
Live Circuit Detection Test	inhibit if >30V detected
Loop/Line Impedance
Supply Voltage	195 - 253V/440V, 45Hz - 65Hz
Test Current	15mA (non tripping for RCD protected circuits)
Display Range	0.01ohms - 2000ohms
Resolution	0.01ohms maximum
Loop Impedance	Phase to Earth
Line Impedance	Phase to Neutral/Phase to Phase
PFC/PSC Range	0 - 26kA
RCD Trip Time
Supply Voltage	195 - 253V, 45 - 65Hz
Test Currents	10, 30, 100, 300, 500mA
Trip Time Ranges	0ms - 2000ms at ½IDn 0ms - 300ms at IDn general
