Seaward EV110 EV Charge Point Tester

With the world’s electric vehicle sector growing rapidly in response to the need for low carbon transportation solutions, there is an increased need to ensure the charging infrastructure is operating efficiently and safely.

The EV110 is an all-in-one test and diagnostic tool, designed to ensure that all types of AC electric vehicle supply equipment (EVSE) are operating correctly and safely, in accordance with SAE J1772, both at the time of installation and as part of an ongoing periodic maintenance regime.

The EV110 is an all-in-one test and diagnostic tool, designed to help EVSE technicians:

• Diagnose EVSE faults
• Reduce service time and costs
• Provide traceable proof of testing
• Ensure maximum uptime of EVSE networks
• Carry out comprehensive commissioning and periodic testing
• Transfer test data back to the office instantly

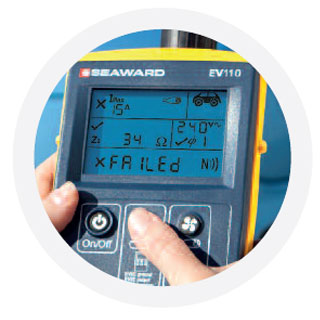

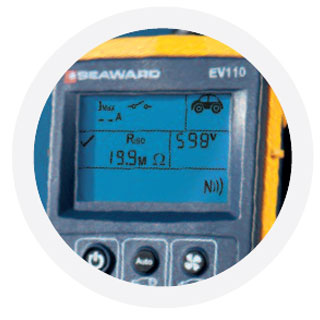

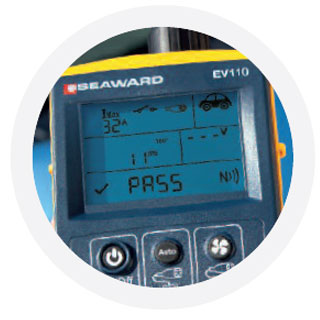

The simple user interface makes it fast and effortless to perform a comprehensive set of measurements at the press of a button, including output voltage, maximum available charging current, insulation resistance, earth loop impedance and GFCI trip time.

The EV110 is also able to simulate a number of vehicle faults, and automatically store the EVSE fault response including the disconnection time and the amplitude, frequency and duty cycle of the PWM communication between the EVSE and simulated EV.

Whilst a basic set of measurements is clearly shown on the EV110 display, a much more comprehensive set of diagnostic data is stored in the EV110’s internal memory.

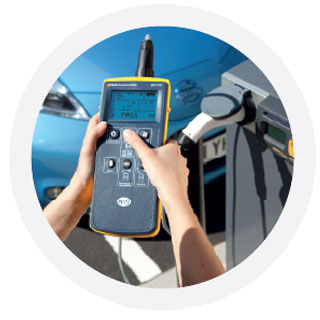

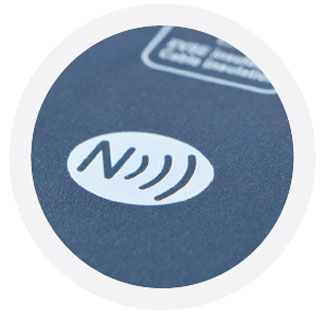

For fast and instant fault diagnosis, the technician in the field can use contactless NFC (Near Field Communication) connectivity to easily transfer all test results and measured data from the EV110 to an Android app running on a portable device such as a tablet or smart phone. The technical data can then be emailed directly back to the office for immediate analysis by an engineer, or for administration and record management purposes.

EVSE maintenance checks and fault finding is faster, simpler and more cost-effective than ever before with the EV110 from Seaward.

Get more from the EV110 with EVSEMobile App

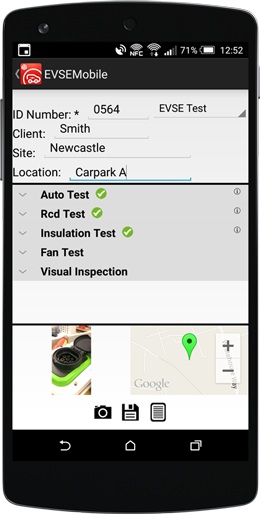

The easy-to-use EVSEMobile Android app enables complete test and diagnostic data to be transferred from the EV110 to an Android device using NFC technology. The comprehensive test and diagnostic data can be viewed on the device, or exported as CSV and emailed back to the office for fast and efficient fault diagnosis.*

EVSEMobile also produces professional looking PDF test certificates which can be sent to clients or stored for future reference.*

Using the EV110 with the EVSEMobile app enables you to get to the root of the problem quickly, saving you time and ensuring minimum downtime of the EVSE.



*Data export from EVSEMobile is a premium feature and requires a subscription












Fast and comprehensive EVSE testing
The EV110 can simulate all of the commonly used charging cable ratings to quickly and easily verify the correct response from the EVSE (Types 1 and 2).

No other test instruments or vehicle simulators are required. Everything you need to perform testing is included.








Wirelessly send data back to base for immediate analysis
Remote diagnosis of problems is made easy with the ability to wirelessly transfer a comprehensive range of electrical tests and full PWM analysis back to the office from the field using the EVSEMobile app.*

A skilled diagnostic engineer, back at the office, can diagnose problems and instruct the technician in the field, without having to leave the desk.*





Fuss-free and all-in-one testing solution
The EV110 is the only test instrument that can confirm correct mains supply and earthing on single or three phase systems without the need for additional equipment or to disassemble the charge point to access internal conductors.

It will also measure the trip current of the EVSE GFCI for rated trip values from 5mA to 25mA.









Reduce the risk of electric shock to EVSE users
EVSE charging cables are vulnerable to damage and this may present a risk of injury to the EVSE user. The EV110 tests the insulation of charging cables, providing peace of mind to EVSE installers, operators and manufacturers that risk of electric shock is reduced.







Capture full PWM information
The EV110 performs a full analysis of the PWM signal (the method of communication between the EVSE and EV) and records the voltage levels, frequency and duty cycle.

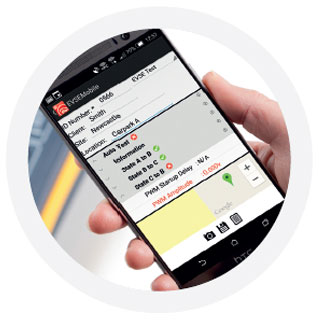

PWM data is used to display the maximum available charging current. Full PWM data can be transferred to the Android App to provide a useful diagnostic tool in cases where the EVSE is not operating correctly.











Full analysis of EVSE fault response
The EV110 checks that the EVSE responds correctly to faults within an EV and safely terminates the charging process when required. The time taken for the EVSE to respond to the various fault conditions is recorded within the EV110's on-board memory and can be downloaded into the Android App and sent back to base with the touch of a button.*






Check EVSE ventilation systems

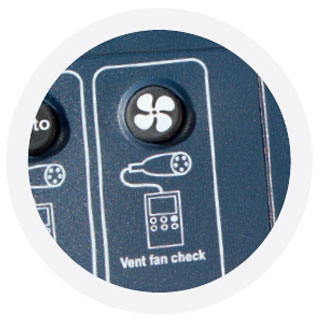

Some EVs are fitted with batteries that require ventilation during charging. The EV110 simulates this type of vehicle and is able to quickly verify that the ventilation systems controlled by the EVSE are operating correctly, and that an EVSE which is not equipped with a ventilation system will not attempt to deliver charge if the EV requires ventilation.
